To find your appropriate axis information, refer to the type plate located at the axis.
(1) For the minimum and maximum stroke per size, refer to the mechanical data of the axis.
(2) Supplied with a 0.1 m (3.9 in) cable which is equipped with an M8 connector. For other sensor extension cable lengths, refer to Sensor Extension Cables.
(3) For information about the dimensions, refer to Mechanical Data.
(4) For further information, refer to Mounting Options for Motor and/or Gearbox.
(5) For further information, refer to Motor and/or Gearbox Orientation and Configuration.
(6) In case of a straight planetary gearbox, the orientation references to the setscrew of the motor adapter plate.
(7) With reference to the motor connection.
Motor and/or Gearbox Orientation and Configuration

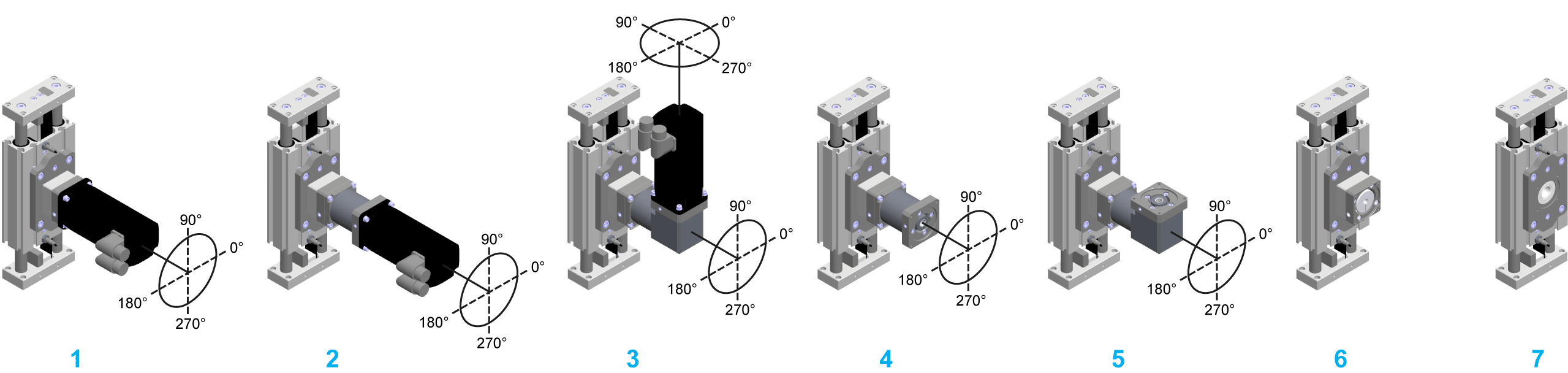

The following figure presents the possible motor and/or gearbox orientation and configuration for the .
1 CAR4••C••••••••R/1XXX•••
2 CAR4••C••••••••R/2•G••••
3 CAR4••C••••••••R/2•A••••
4 CAR4••C••••••••R/3•G•••X
5 CAR4••C••••••••R/3•A•••X
6 CAR4••C••••••••R/4••X••X
7 CAR4••C••••••••H/XXXXXXX

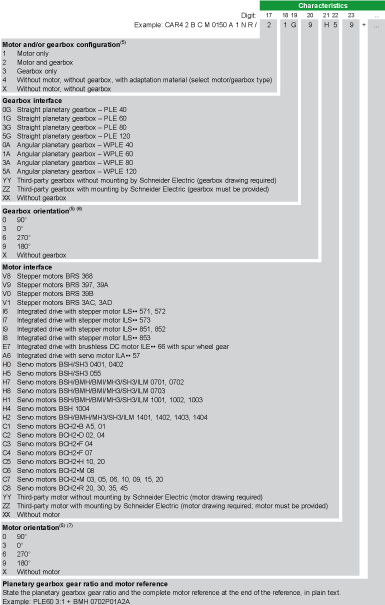

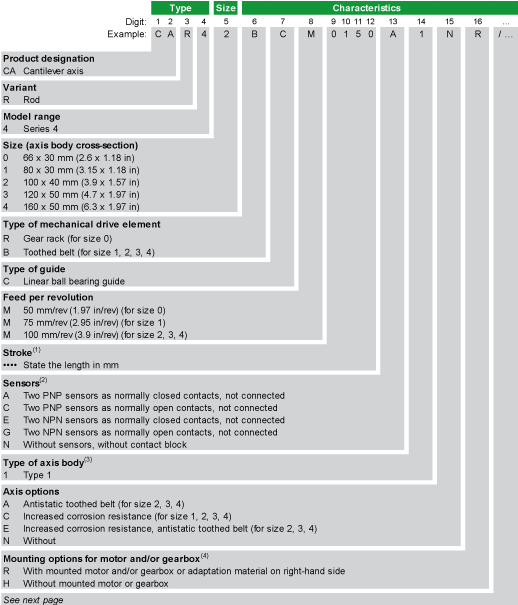

For a detailed name description of the , refer to Type Code.
Designation of Customized Versions
In the case of a customized version, the type code contains one or several dollar signs "$". Example: CAR42$CM0150A1NR / 2 1G 9 H5 9
If you have questions concerning customized versions, contact your local Schneider Electric service representative.
