Methods

Overview

Test cases and resources contain predefined methods. These methods are called by the test framework during test execution. The contents of these methods, the test logic, is programmed by you as a user. The methods predefined by ETEST do not differ in their behavior from the general methods described in the EcoStruxure Machine Expert Programming Guide.

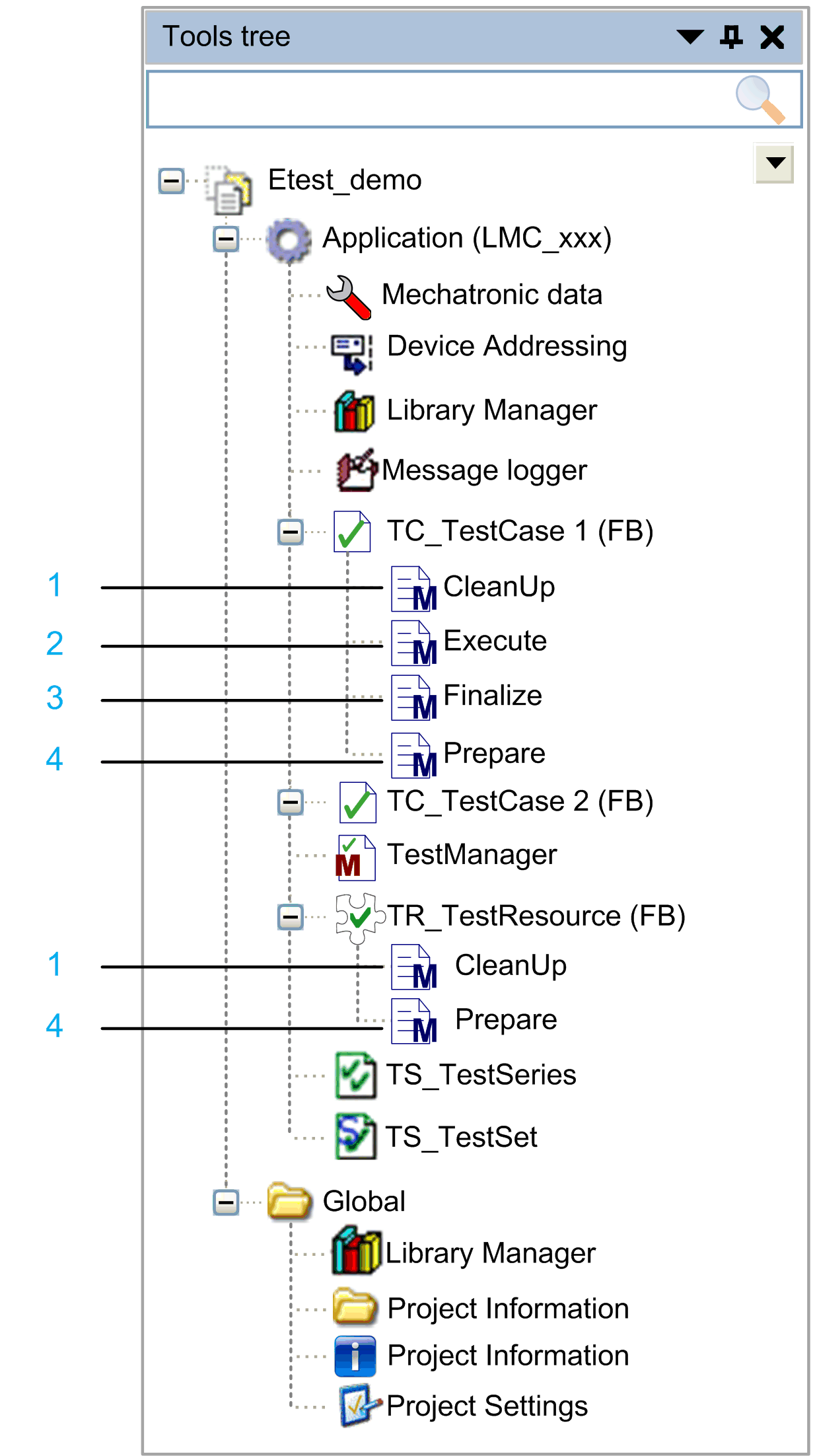

1 CleanUp: Cleaning after the test case.

2 Execute: Execution of the test case.

3 Finalize: Cleaning after the test case. (Called once in the cycle in which Execute is terminated.)

4 Prepare: Preparation of the test case.

Methods of Test Cases and Resources

Test cases contain the methods:

Prepare
Execute
Finalize
CleanUp

Resources contain the methods:

Prepare
CleanUp

These methods must be included in every test object. In addition, test cases and resources may contain any number of other methods.

NOTE: The methods of test cases and resources must only be written in structured text (ST). Otherwise an error may be generated.

Sequence of Methods During Test Execution

During the execution of a test case, the methods are called by the ETEST framework in the following sequence, regardless of the order that they appear in the Tools tree:

Sequence	Method	Call type	Description	End condition
1	Prepare	Cyclic	Preparatory measures for the test are executed, for example, initialization of variables or positional control of an axis.	The macro `ASSERT` has been evaluated to FALSE. Initialization has been successfully completed. (The macro `TEST_DONE` has been called.)
2	Execute	Cyclic	Contains the test itself.	The macro `ASSERT` has been evaluated to FALSE. The test has been successfully completed. (The macro `TEST_DONE` has been called.)
3	Finalize	Once	The method is called up if the following conditions apply: The method Execute is exited with an error. The method Execute is exited regularly at the end of the test case in the same cycle. The method Execute is canceled by user input.	Is directly followed by the CleanUp method.
4	CleanUp	Cyclic	Resets the test object to the initial state. It can then be reused later.	The macro `ASSERT` has been evaluated to FALSE. The test has been successfully completed. (The macro `TEST_DONE` has been called.)

During the execution of a test case, precisely one method of a test case is called in each cycle. An exception is the method Finalize, which is used in the same cycle as the last call of Execute.

Within the methods of test cases and resources, macros can be used.

Calling Methods

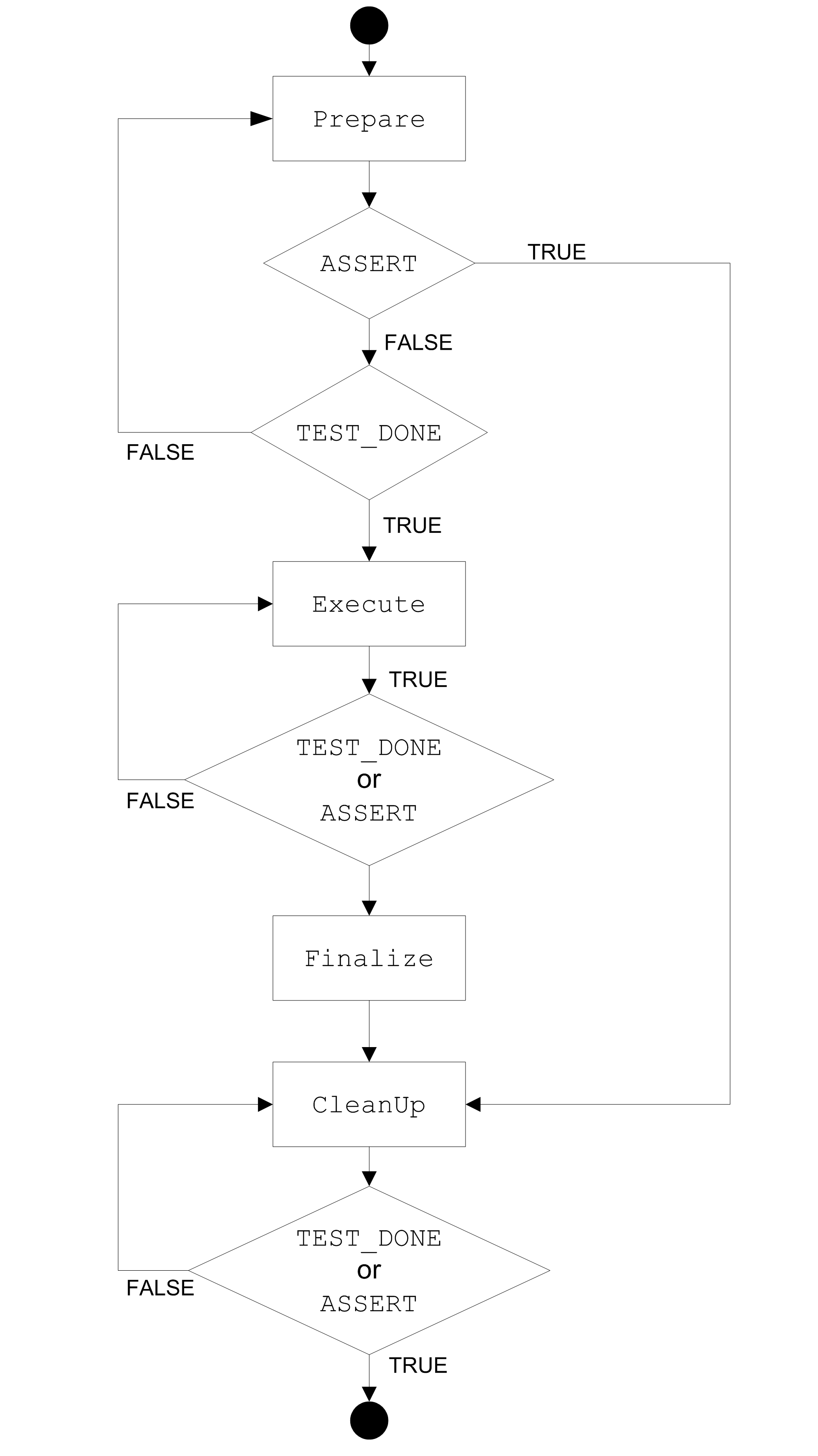

The diagram shows how the ETEST framework calls test methods.

NOTE: The local variables of TestCases will be re-initialized at the beginning of each test execution.
