Why Use the DiagnosticCoverage Function Block?
The function block compares application signature and firmware version with a configured value. It also watches executions of sub-programs, actual cycle time of a cyclic task and provides interface for cross-checking of 2 controllers. Internally it tests integrity of variable memory and correctness of boolean and floating point operations.
This function block is intended to have significant influence on the physical movement of the crane and its load. The application of this function block requires accurate and correct input parameters in order to make its movement calculations valid and to avoid hazardous situations. If invalid or otherwise incorrect input information is provided by the application, the results may be undesirable.
|
|
|
UNINTENDED EQUIPMENT OPERATION |
|
Validate all function block input values before and while the function block is enabled. |
|
Failure to follow these instructions can result in death, serious injury, or equipment damage. |

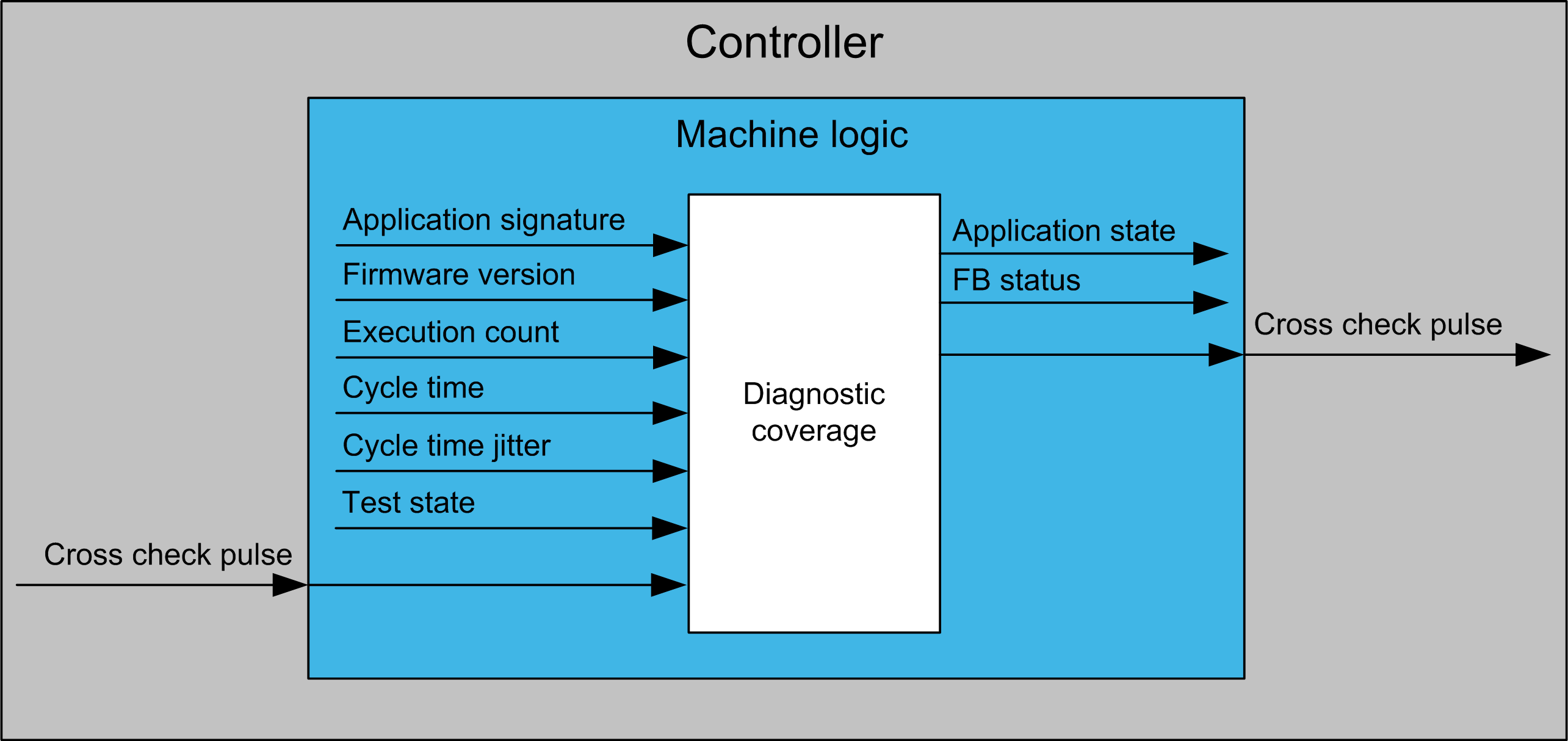

Solution with the DiagnosticCoverage Function Block
The DiagnosticCoverage FB helps increase the diagnostic coverage of the applied control system.
