Type: |
Visualization |
|
Available as of: |
V1.0.0.0 |
|
Implements: |
- |
Display the diagnostic messages out of the GVL.G_astDiagTable.

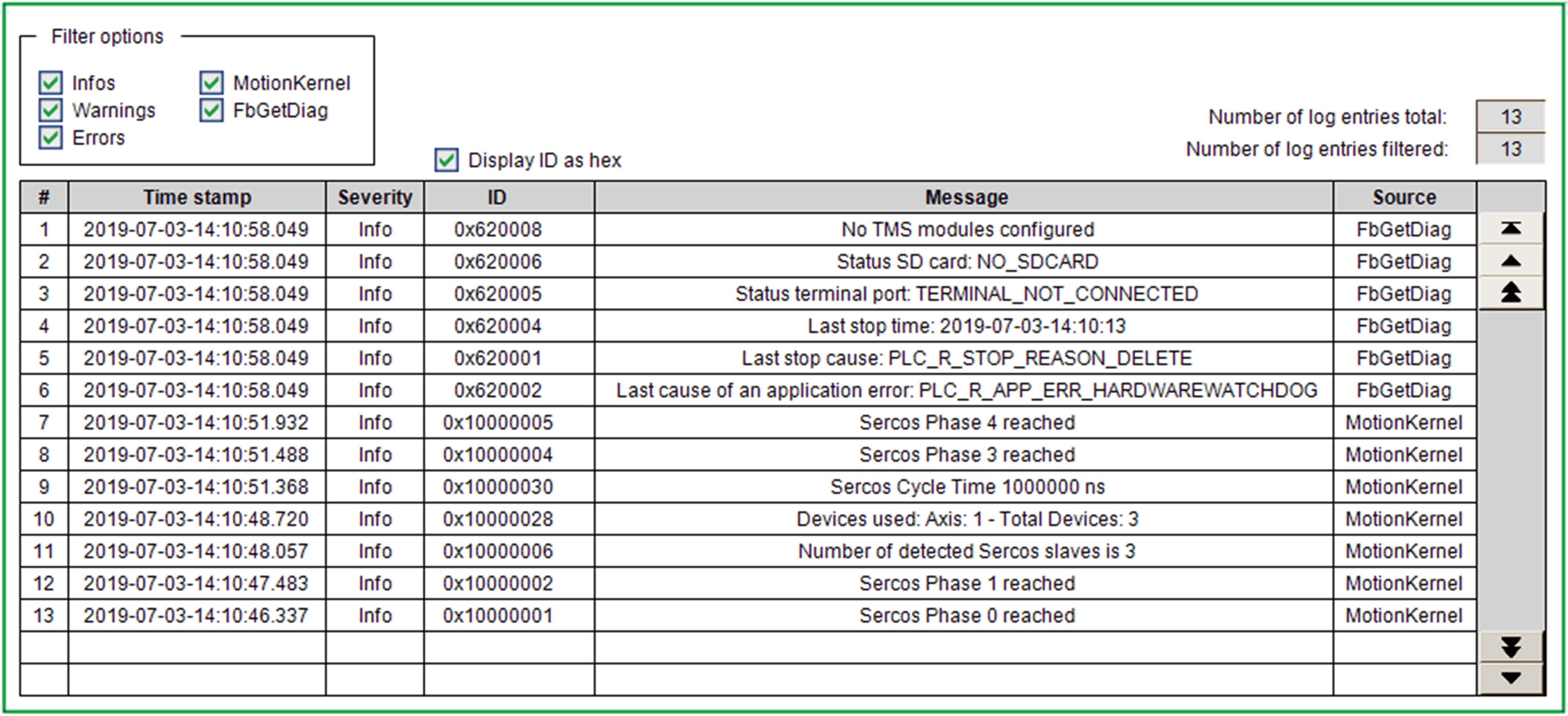

This visualization is used to display the diagnostic messages out of the GVL.G_astDiagTable. The visualization must be instantiated within a frame visualization in the application.
|
Input/Output |
Data type |
Description |
|---|---|---|
|
iq_stVisuInputs |
Commands linked to the input of the corresponding function block. |
|
|
iq_stVisuOutputs |
Signals linked to the output of the corresponding function block. |
