Slope of the Synchronous Phase

Overview

As a prerequisite for modifying the slope of the synchronous phase, the function block must be inactive.

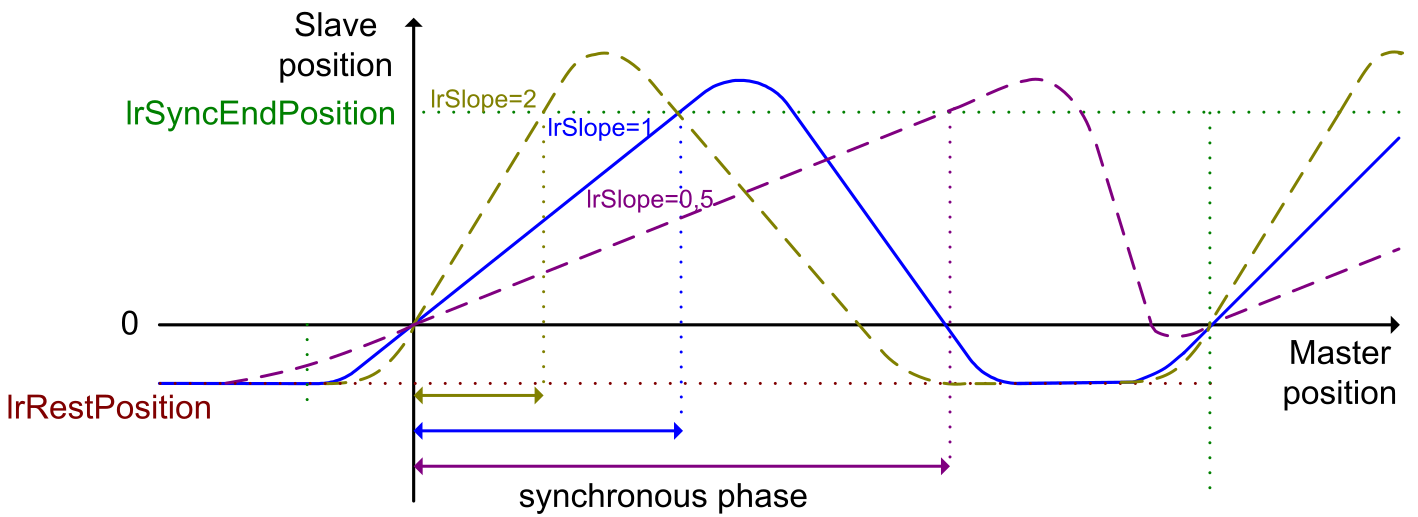

Use the parameter lrSlope to introduce a slope coefficient for the synchronous phase:

• lrSlope = 1: The master and the slave axis are moving with the same velocity.

• lrSlope < 1: The master is moving faster than the slave.

• lrSlope > 1: The master is moving slower than the slave.
