ST_Cylinder



ST_Cylinder - General Information

Overview

Type:

Data structure

Available as of:

V1.0.3.0

Inherits from:

-

Versions:

Current version

Description

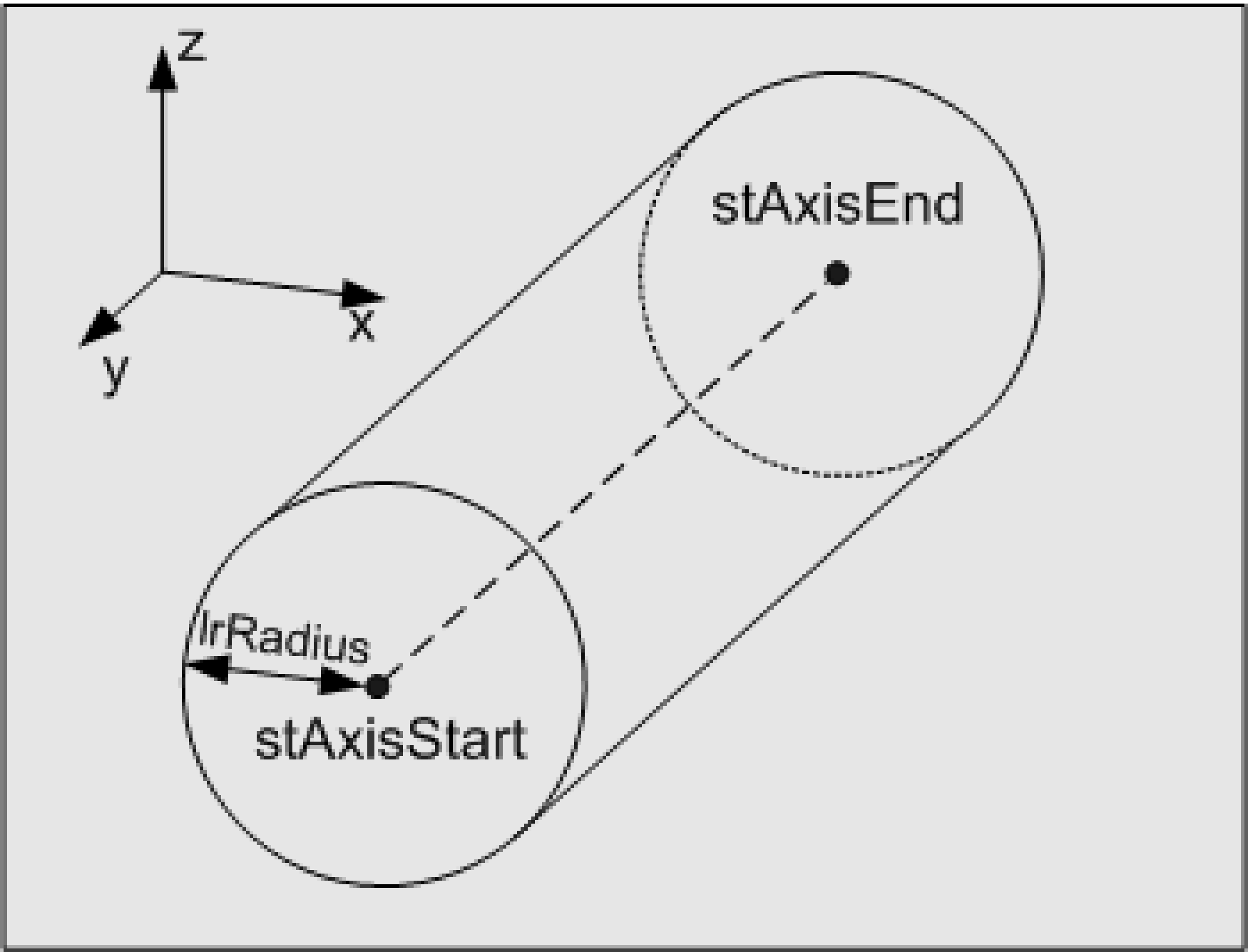

This data structure defines a cylinder. The cylinder axis is defined by the start point and end point.






Structure Elements

Variable

Data type

Description

stAxisStart

ST_Vector3D

Start point of the cylinder axis

stAxisEnd

ST_Vector3D

End point of the cylinder axis

lrRadius:

LREAL

Radius of the cylinder
