MC_ReadStatus

Functional Description

This function block provides information on the PLCopen operating state of the connected axis.

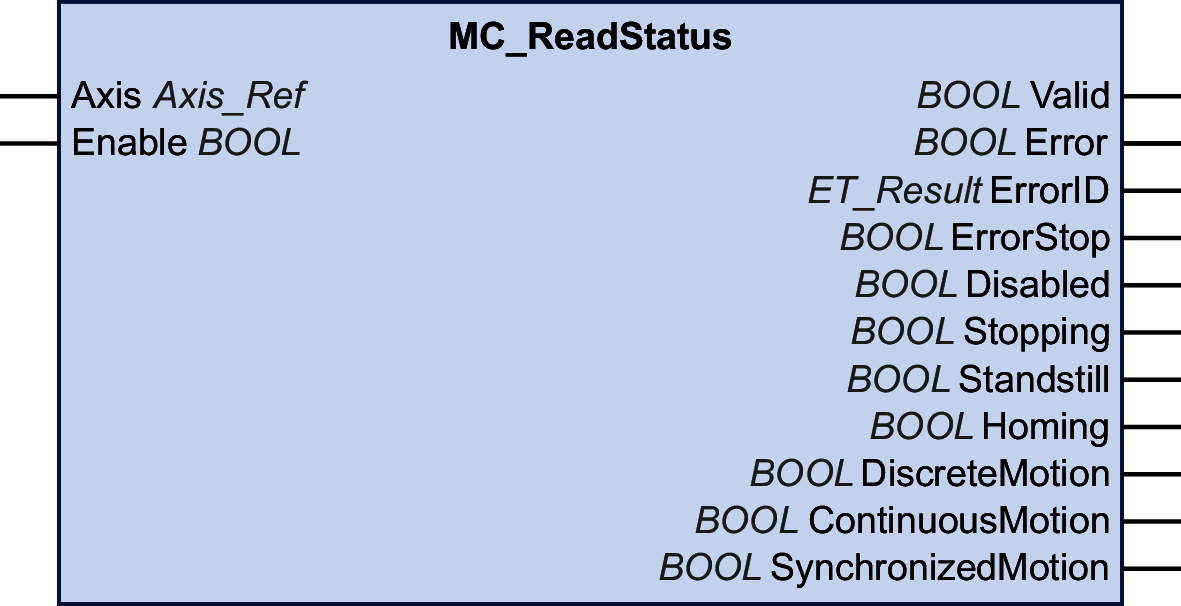

Graphical Representation

Inputs

Input

Data type

Description

Axis

Axis_Ref

Reference to the axis for which the function block is to be executed.

Enable

BOOL

Value range: FALSE, TRUE.

Default value: FALSE.

The input Enable starts or terminates execution of a function block.

  • FALSE: Execution of the function block is terminated. The outputs Valid, Busy, and Error are set to FALSE.

  • TRUE: The function block is being executed. The function block continues executing as long as the input Enable is set to TRUE.

Outputs

Output

Data type

Description

Valid

BOOL

Value range: FALSE, TRUE.

Default value: FALSE.

  • TRUE: The values at the outputs ErrorStop, Disabled, Stopping, Standstill, Homing, DiscreteMotion, ContinuousMotion and SynchronizedMotion are valid.

  • FALSE: One of the values at the outputs ErrorStop, Disabled, Stopping, Standstill, Homing, DiscreteMotion, ContinuousMotion and SynchronizedMotion is invalid.

Error

BOOL

Value range: FALSE, TRUE.

Default value: FALSE.

  • FALSE: Function block is being executed, no error has been detected during execution.

  • TRUE: An error has been detected in the execution of the function block.

ErrorID

ET_Result

This enumeration provides diagnostics information.

ErrorStop

BOOL

Value range: FALSE, TRUE.

Default value: FALSE.

  • TRUE: The axis is in the PLCopen operating state ErrorStop.

  • FALSE: The axis is not in the PLCopen operating state ErrorStop.

Disabled

BOOL

Value range: FALSE, TRUE.

Default value: FALSE.

  • TRUE: The axis is in the PLCopen operating state Disabled.

  • FALSE: The axis is not in the PLCopen operating state Disabled.

Stopping

BOOL

Value range: FALSE, TRUE.

Default value: FALSE.

  • TRUE: The axis is in the PLCopen operating state Stopping.

  • FALSE: The axis is not in the PLCopen operating state Stopping.

Standstill

BOOL

Value range: FALSE, TRUE.

Default value: FALSE.

  • TRUE: The axis is in the PLCopen operating state Standstill.

  • FALSE: The axis is not in the PLCopen operating state Standstill.

Homing

BOOL

Value range: FALSE, TRUE.

Default value: FALSE.

  • TRUE: The axis is in the PLCopen operating state Homing.

  • FALSE: The axis is not in the PLCopen operating state Homing.

DiscreteMotion

BOOL

Value range: FALSE, TRUE.

Default value: FALSE.

  • TRUE: The axis is in the PLCopen operating state DiscreteMotion.

  • FALSE: The axis is not in the PLCopen operating state DiscreteMotion.

ContinuousMotion

BOOL

Value range: FALSE, TRUE.

Default value: FALSE.

  • TRUE: The axis is in the PLCopen operating state ContinuousMotion.

  • FALSE: The axis is not in the PLCopen operating state ContinuousMotion.

SynchronizedMotion

BOOL

Value range: FALSE, TRUE.

Default value: FALSE.

  • TRUE: The axis is in the PLCopen operating state SynchronizedMotion.

  • FALSE: The axis is not in the PLCopen operating state SynchronizedMotion.

NOTE: Refer to PLCopen State Diagram for additional information.
