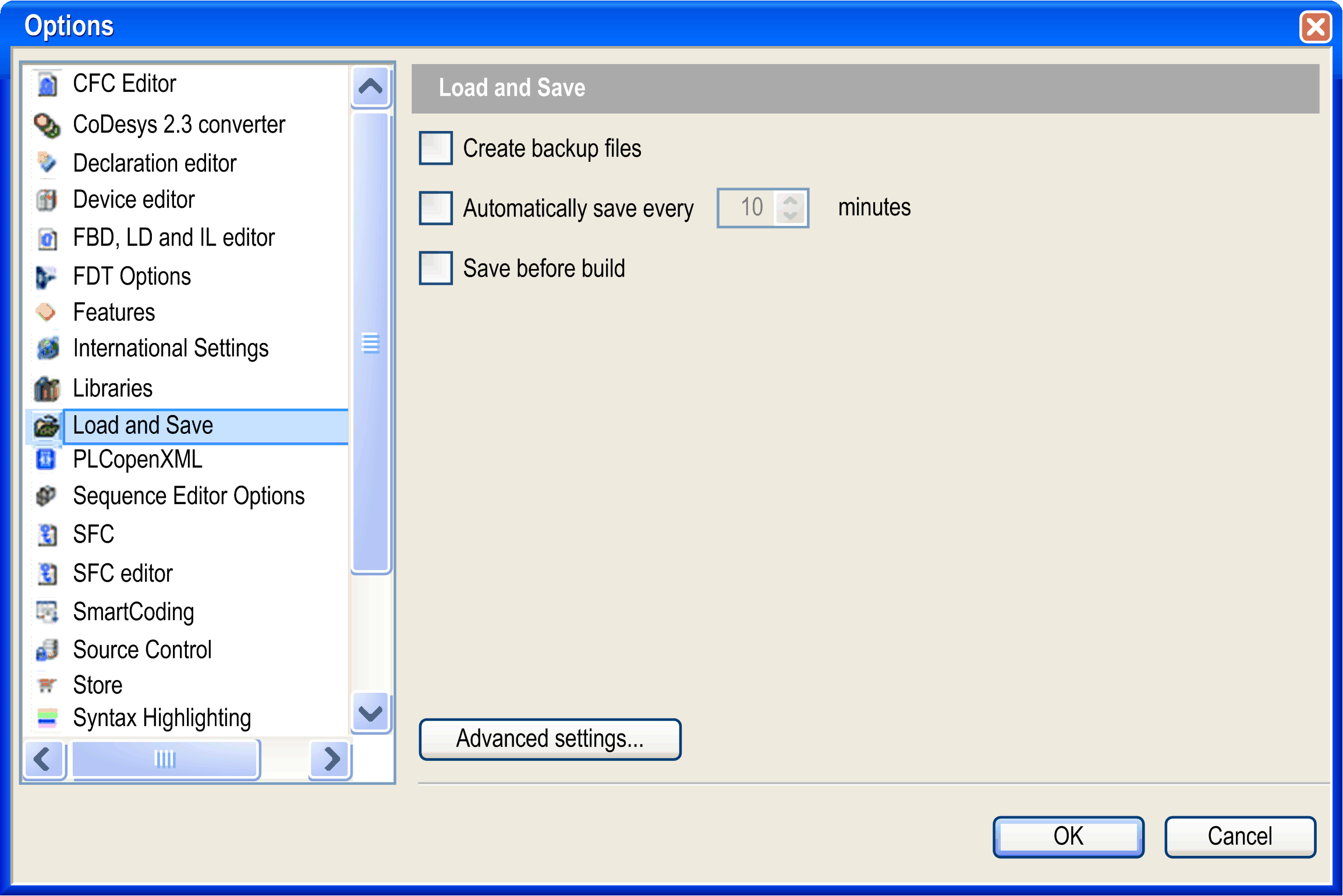

Options, Load and Save

If this option is enabled, at each saving the project will not only be saved in a <projectname>.project file but also copied to a file <projectname>.backup. If needed, you can rename this backup file and reopen it in EcoStruxure Machine Expert.

If this option is enabled, the project will be automatically saved in the defined time intervals to a file <projectname>.autosave in the project directory.

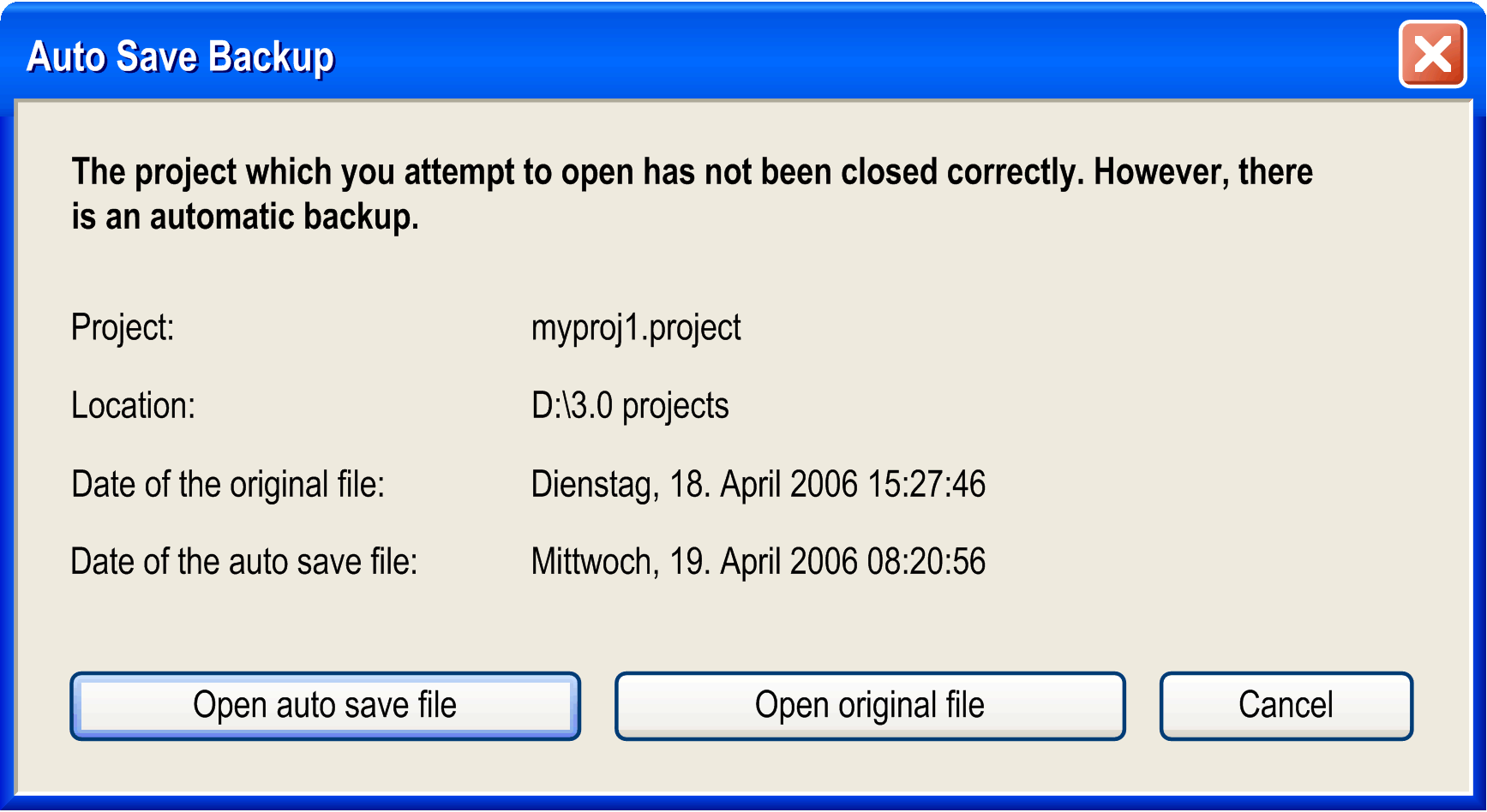

If you regularly save or close the currently opened file, the associated auto save file will be deleted, unless the save file command is cancelled or terminated in error. In this case, the file will be kept. If you reopen a project for which an appropriate auto save file is found, the Auto Save Backup dialog box is displayed. You can reopen the auto save project or the saved last version.

EcoStruxure Machine Expert saves the project automatically before each build run. The last saved version of the project is overwritten.

The auto save file <projectname>.autosave will be opened and marked as modified. An asterisk (*) is displayed behind the file name in the title bar.

The last version of the project saved will be opened.

As a prerequisite, the No protection option is selected in the Project Settings > Security dialog box. Thus, the project is not protected against unauthorized access and data manipulation, and no integrity check is performed when the project is loaded.

If this option is enabled, a message is displayed when a project is reopened after EcoStruxure Machine Expert had stopped to operate unexpectedly beforehand. The message requests whether the unsaved data should be restored and a new project file should be created on this base. In the subsequent project comparison, it is indicated whether the changes made before the file was closed can actually be restored.

Click this button to open the same-named dialog box.

Project compression

As a prerequisite, the Integrity check option is selected in the Project Settings > Security dialog box.

List for selecting the compression level that is used when the project is saved:

• Least compression - best speed (recommended)

• Medium compression - medium speed

• Most compression - worst speed

If this option is enabled (default), the loading of libraries and compile information will be done in the background while you start working on the project.
