Toggle Network Comment State
Overview
Shortcut: CTRL + O
The command is used in FBD, LD, or IL editor to comment out a network or to set it back from comment to normal state. The command will affect the network in which the cursor is currently positioned.
A commented-out network will be displayed according to the options set for comments and will not be noticed in program processing.

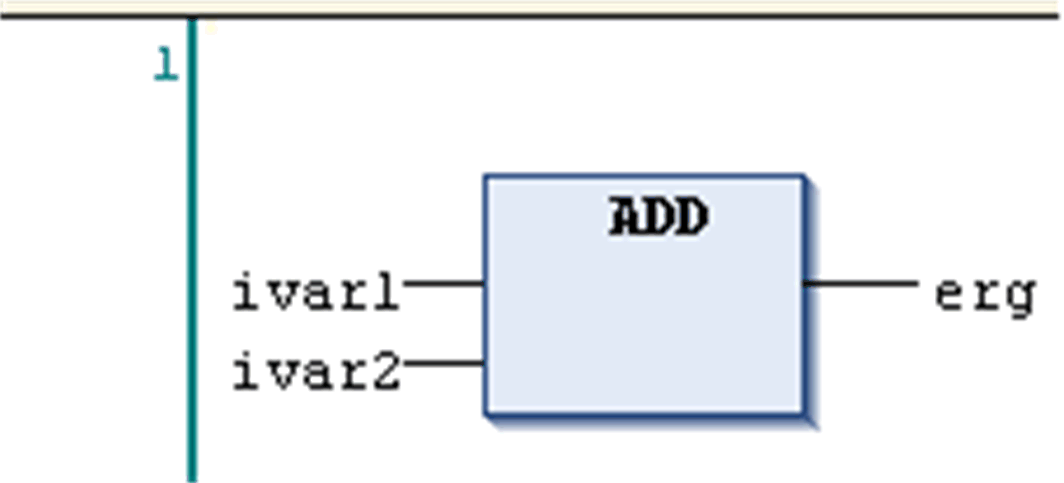

Example: Network, normal state

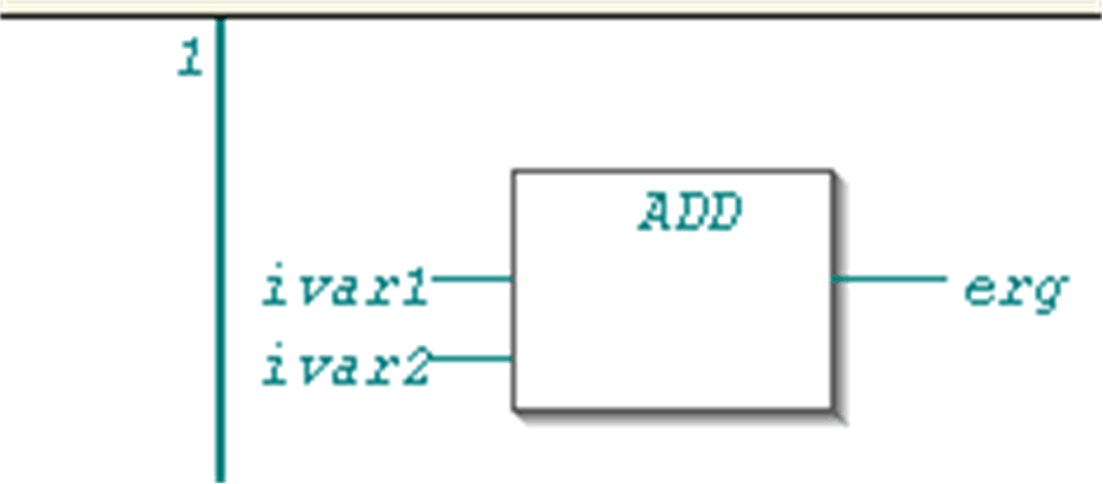

Example: Network, comment state
NOTE: Concerning the view options for the components of FBD, LD and IL networks, consider the FBD, LD and IL editor options.
