GE

Overview

Comparison operator performing a Greater Than Or Equal To function.

The GE operator is a boolean operator which returns the value TRUE when the value of the first operand is greater than or equal to that of the second.

The operands can be of any basic data type.

Example in IL

Result is TRUE

LD     60
GE     40
ST     Var1

Example in ST

VAR1 := 60 >= 40;

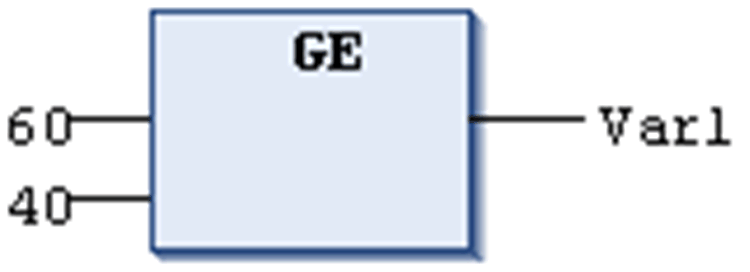

Example in FBD
