EQ

Overview

Comparison operator performing an Equal To function.

The EQ operator is a boolean operator which returns the value TRUE when the operands are equal.

The operands can be of any basic data type.

Example in IL

Result is TRUE

LD     40
EQ     40
ST     Var1

Example in ST

VAR1 := 40 = 40;

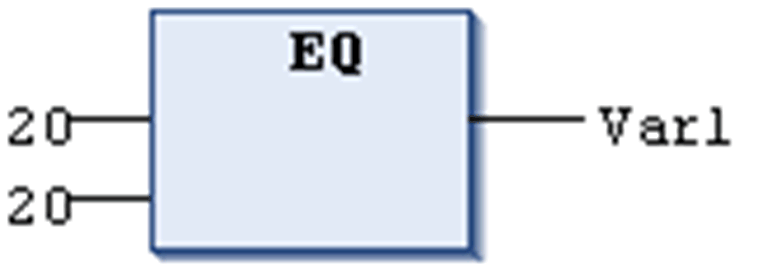

Example in FBD
