MaintenanceData - Functional Description

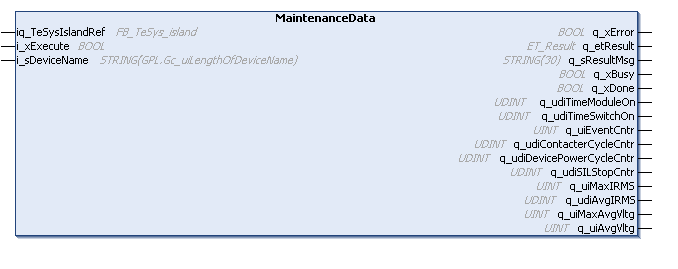

Function block

V2.0.3.0

Reference to the TeSys island device.

Upon a rising edge of this input, the function block starts the execution. The outputs q_xDone, q_xError, q_etResult, and q_etResultMsg are reset with the falling edge of i_xExecute. Refer to Behavior of Function Blocks with the Input i_xExecute.

Reference to the device defined in the TeSys island configuration.

If this output is set to TRUE, an error has been detected. For details, refer to q_etResult and q_etResultMsg.

Provides diagnostic and status information as a numeric value.

Provides additional diagnostic and status information as a text message.

If this output is set to TRUE, the function block execution is in progress.

If this output is set to TRUE, the execution has been completed successfully.

This output indicates the elapsed time that the module has been powered on in its lifetime (Unit: h).

This output indicates the elapsed time the contactor has been in the closed state

(Unit: h).

This output indicates how many times this module has detected a device event. This value does not include device events which prevent the saving or corruption of the non-volatile memory.

This output indicates how many times the contactor has been commanded to the closed state from the open state.

This output indicates how many times the device has been powered on.

This output indicates the number of mirror relay operations.

This output indicates the maximum current the device has measured in its lifetime.

(Unit: 0.1A)

Indicates the lifetime average current measured by the device.

(Unit: mA)

This output indicates the lifetime average current measured by the device.

(Unit: V)

Average RMS voltage on three phases (Unit: V).
