SendOutOfBand Method
Functional Description
Transmits data as OutOfBand data to the peer. The data is read from a buffer supplied by the application. Returns the number of bytes sent to the remote site as UDINT.
For additional information about the send methods, refer to section Send Method.

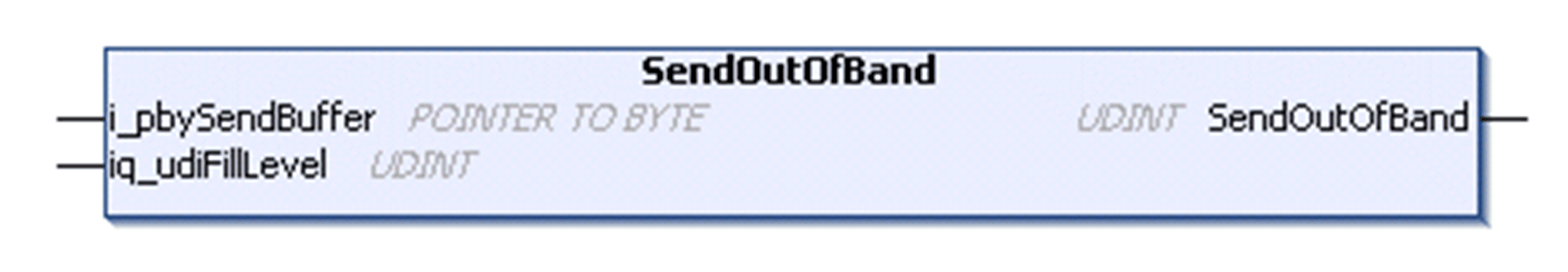

Interface
|
Input |
Data type |
Valid range |
Description |
|---|---|---|---|
|
i_pbySendBuffer |
POINTER TO BYTE |
- |
Start address of the buffer that holds the data to be sent. |
|
In_Out |
Data type |
Valid range |
Description |
|---|---|---|---|
|
iq_udiFillLevel |
UDINT |
1 |
Fill level of the application-supplied buffer before the operation. Set this to 1. It will be still 1 after the operation if not all data could be sent. |
