Parts Identification

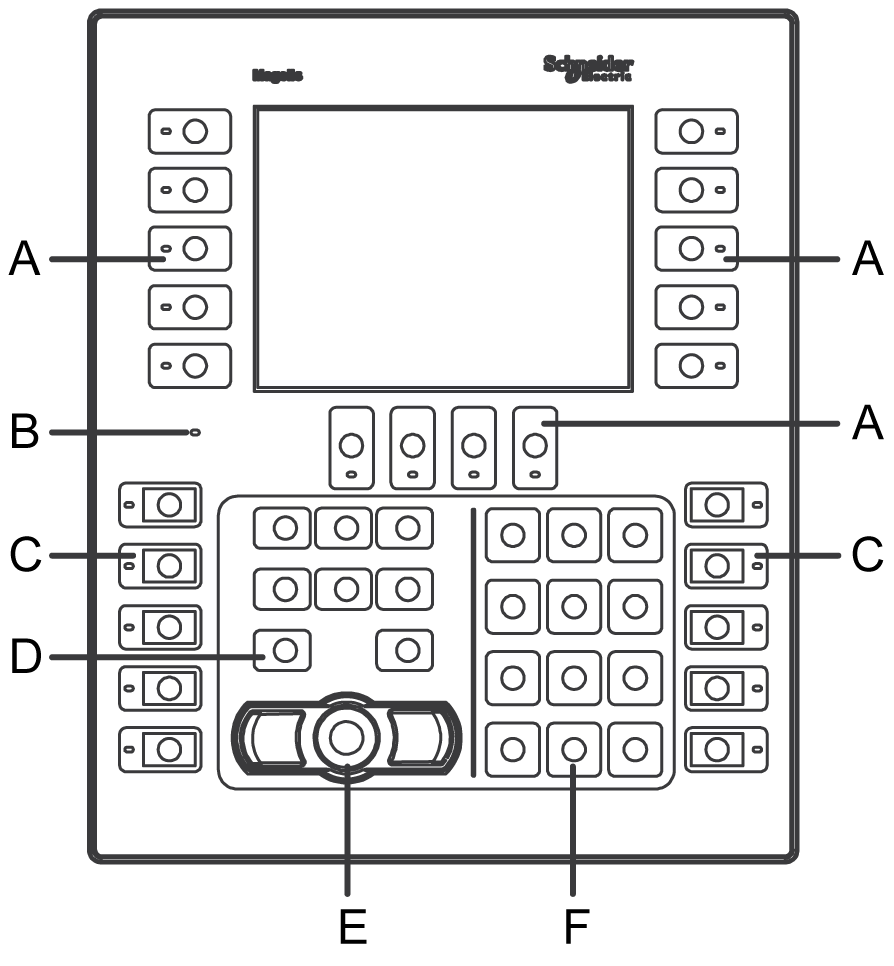

HMIGK2310/5310

A: Dynamic function keys^*1

B: Status LED

C: Static function keys^*1

D: Cursor keys

E: Mouse pointer^*2

F: Alphanumeric keypad



*1 Function keys run the operations defined in your screen editing software. For more information, refer to the associated manual.

*2 The Mouse Pointer controls the cursor and activates objects on the terminal. To move the cursor: Push the Mouse Pointer in the direction you want the cursor to move. To activate an object: Position the cursor above an object and press the Mouse Pointer’s right or left button.

NOTE: For more information on key settings and operations, refer to your screen editing software manual.

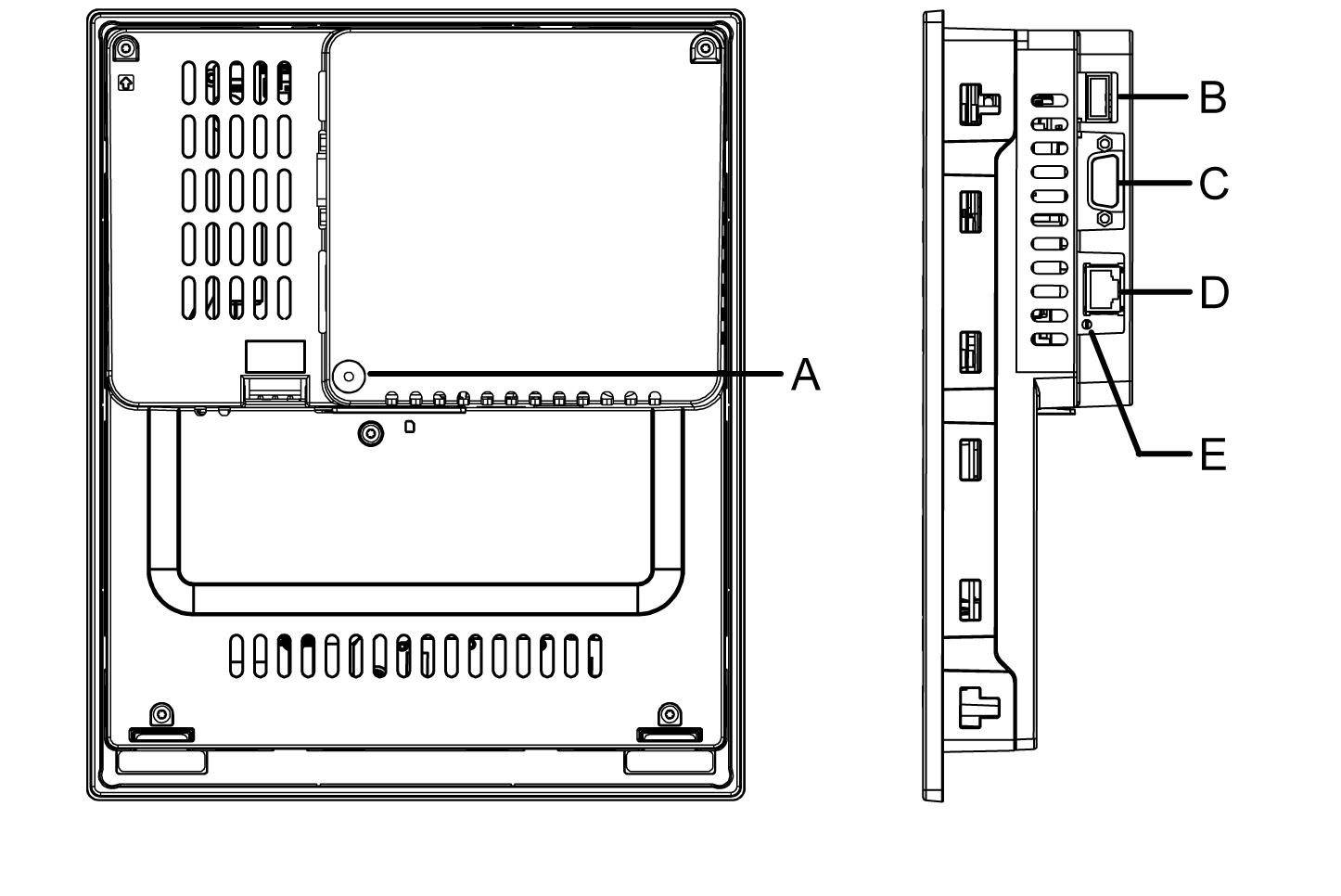

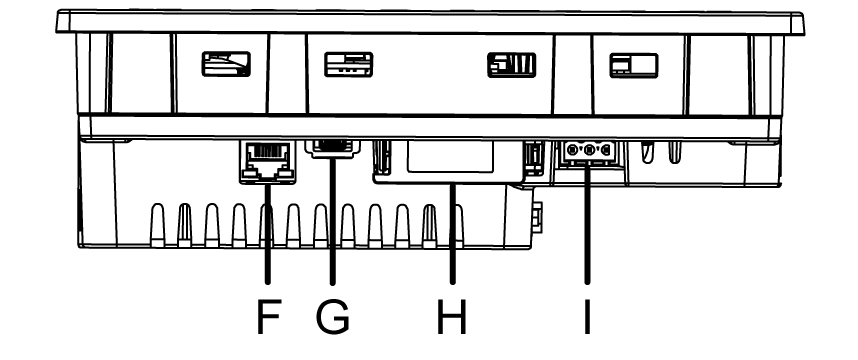

HMIGK2310

A: SD Card access LED^*1

B: USB (Type A) interface (USB1)^*2

C: Serial interface (COM1)^*2: RS-232C

D: Serial interface (COM2)^*2: RS-485

E: COM2 LED^*1

F: Ethernet interface (ETHERNET)^*2

G: USB (mini-B) interface (USB2)^*2

H: SD Card/battery cover

I: Power plug connector



*1 Refer to LED Indications.

*2 Refer to Interface Specifications.

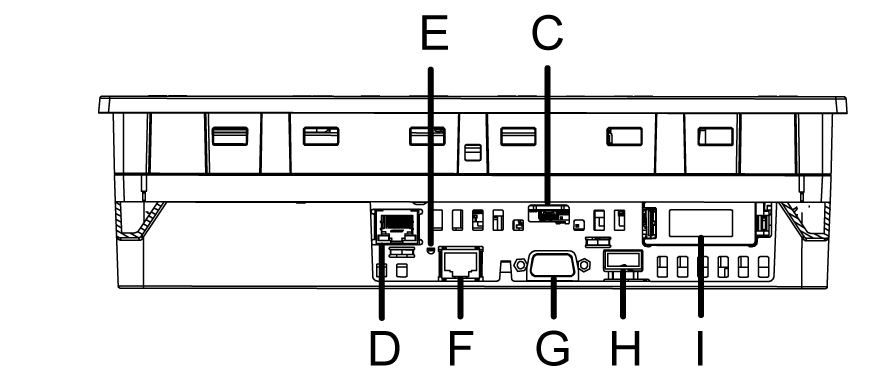

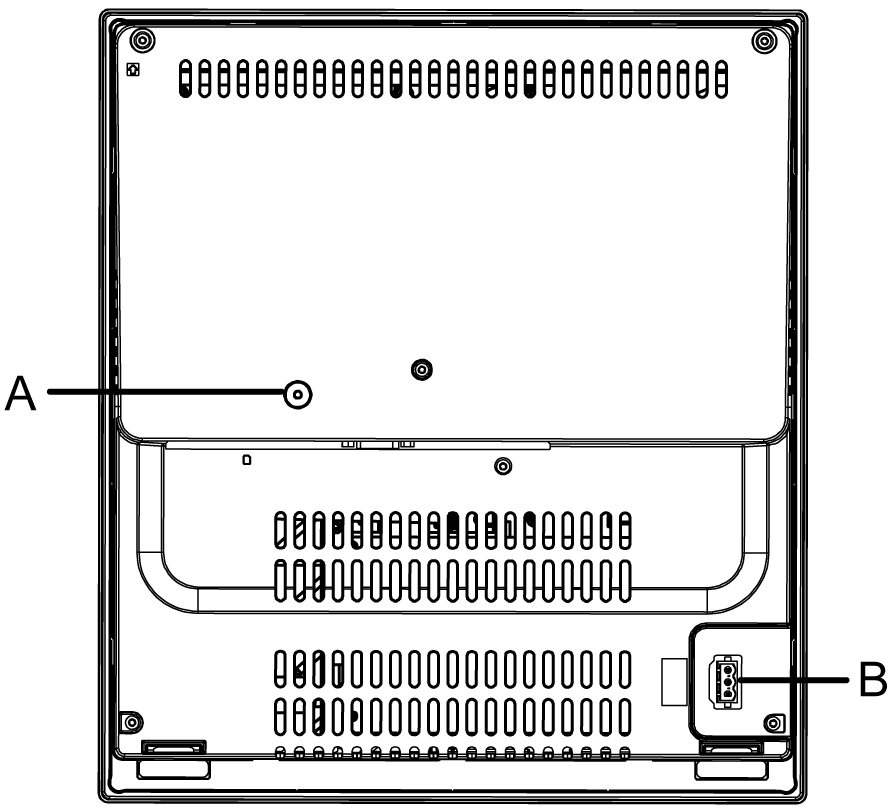

HMIGK5310

A: SD Card access LED^*1

B: Power plug connector

C: USB (mini-B) interface (USB2)^*2

D: Ethernet interface (ETHERNET)^*2

E: COM2 LED^*1

F: Serial interface (COM2)^*2: RS-485

G: Serial interface (COM1)^*2: RS-232C

H: USB (Type A) interface (USB1)^*2

I: SD Card/battery cover



*1 Refer to LED Indications.

*2 Refer to Interface Specifications.
