Electrical Connections for the Lexium 62 DC Link Support Module
Overview
|
Connector |
Description |
Tightening torque [Nm] / [lbf in] |
|---|---|---|
|
Bus Bar Module |
2.5 / 22 |
|
|
Protective ground (earth) |
3.5 / 30.98 |

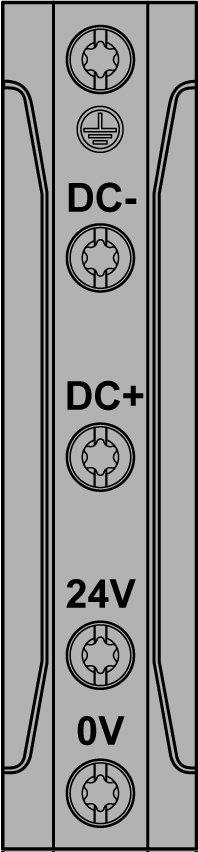

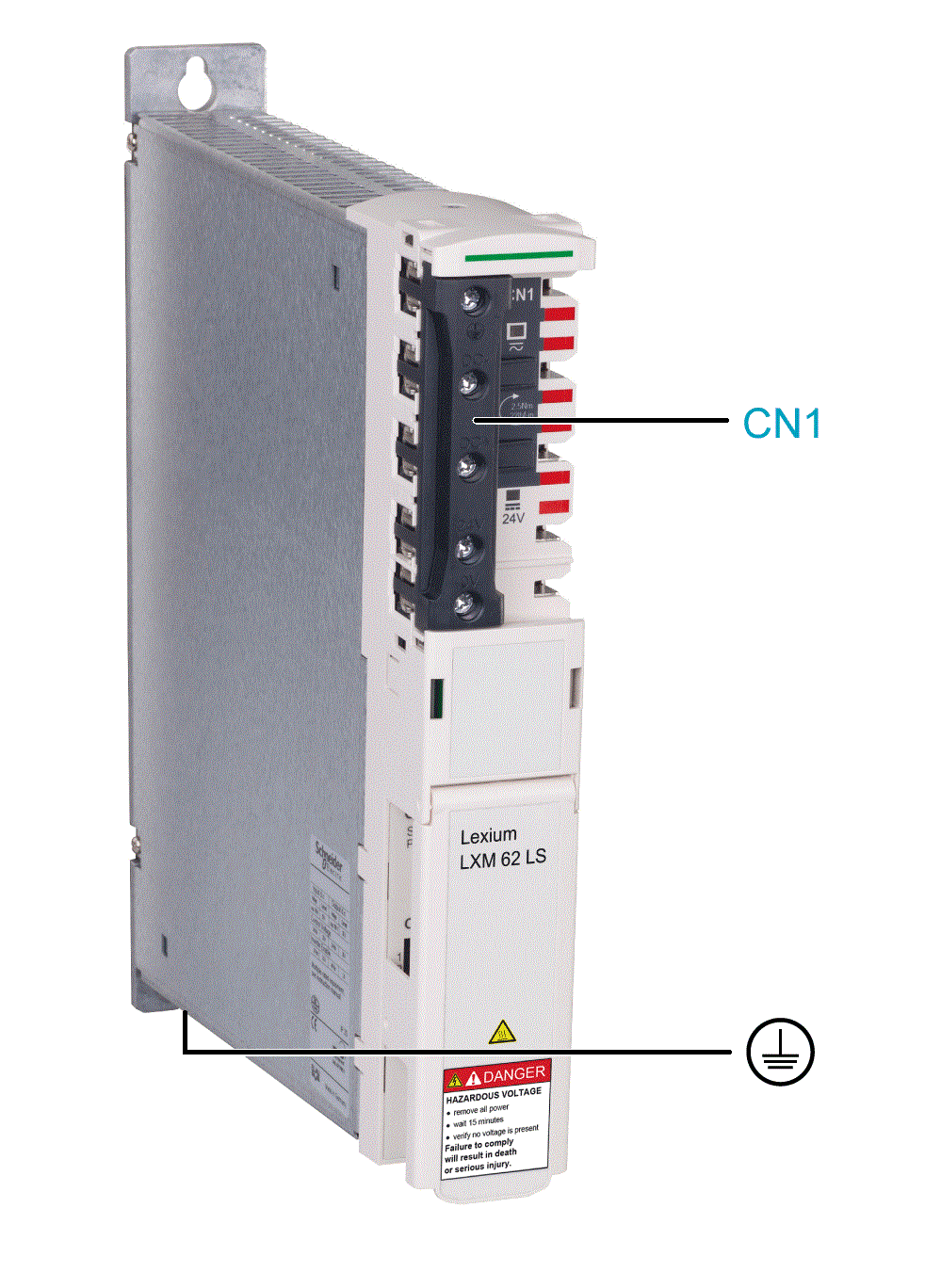

CN1 - Bus Bar Module
The DC bus voltage and the 24 Vdc control voltage are distributed and the protective conductor is connected via the Bus Bar Module.
|
Pin |
Designation |
Description |
|---|---|---|
|
1 |
|
Protective earth (ground) |
|
2 |
DC- |
DC bus voltage - |
|
3 |
DC+ |
DC bus voltage + |
|
4 |
24 V |
Supply voltage + |
|
5 |
0 V |
Supply voltage - |
