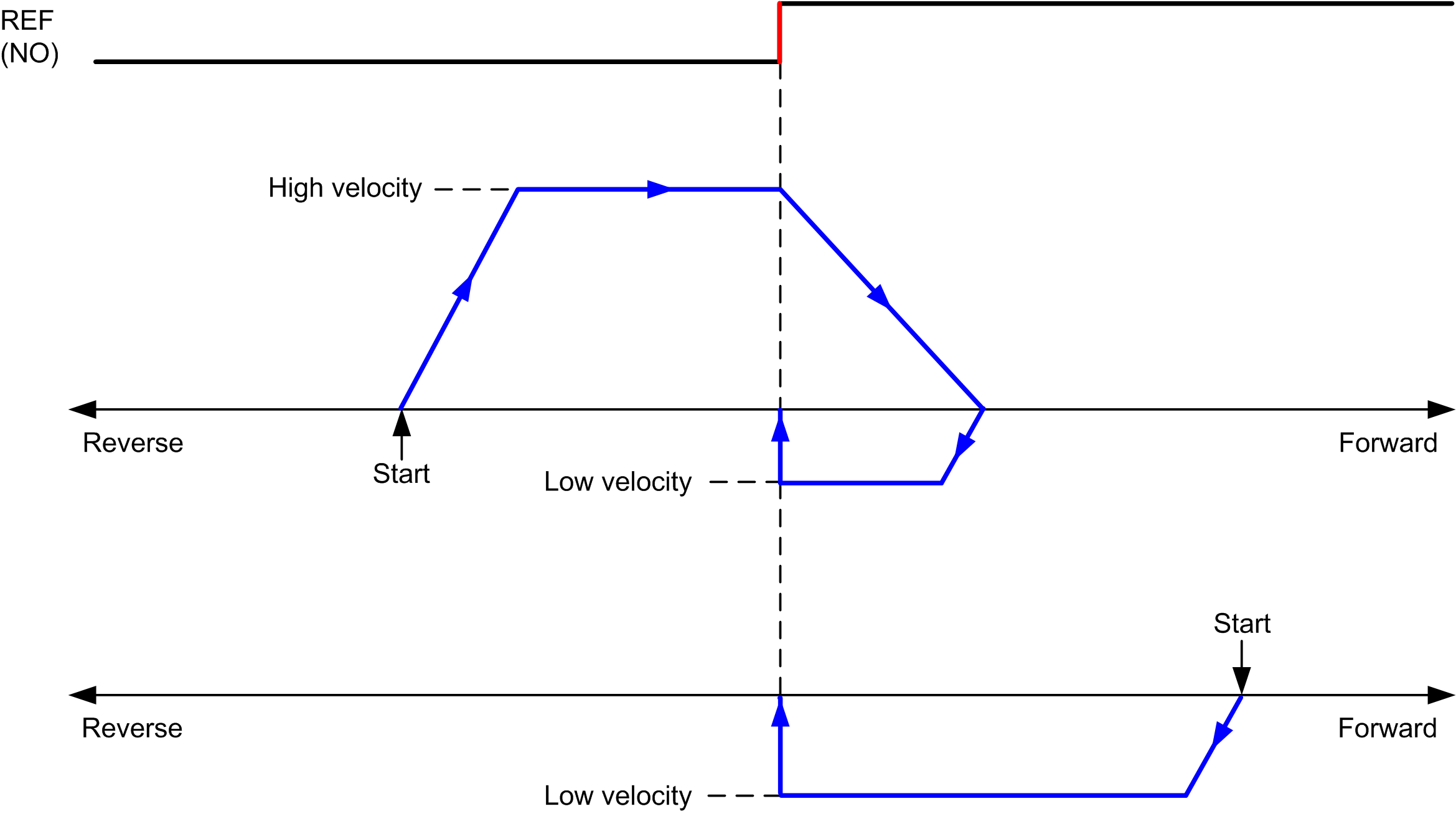

Long Reference: Positive Direction
Homes to the reference switch falling edge in reverse direction.
The initial direction of motion is dependent on the state of the reference switch:
REF (NO) Reference point (Normally Open)

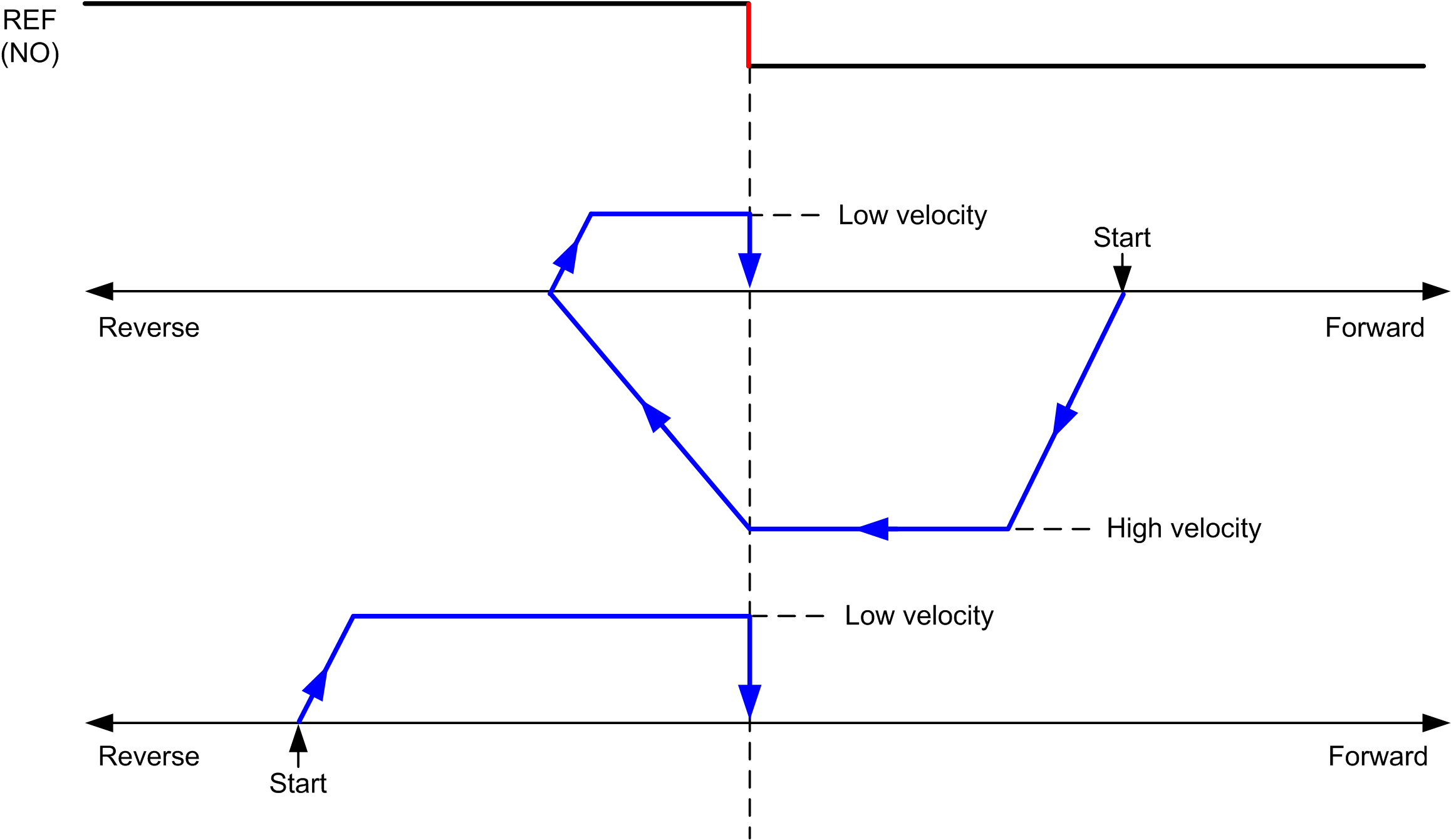

Long Reference: Negative Direction
Homes to the reference switch falling edge in forward direction.
The initial direction of motion is dependent on the state of the reference switch:
REF (NO) Reference point (Normally Open)
