TM3_GetModuleInternalStatus: Get TM3 Module Internal Status

Function Description

This function selectively reads the I/O channel status of a TM3 analog or temperature module, indicated by ModuleIndex. The function block writes the status for each requested channel starting at the memory location pointed to by pStatusBuffer.

NOTE: This function block is intended to be used with analog and temperature I/O modules. To get status information for digital I/O modules, see TM3_GetModuleBusStatus.

NOTE: It is possible to update the value of the diagnostic bytes by calling the TM3_GetModuleInternalStatus function only if the Status Enabled parameter in the I/O Configuration tab is deactivated.

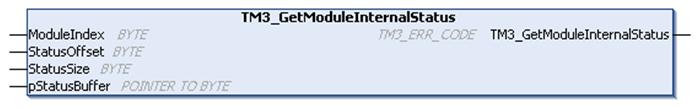

Graphical Representation

IL and ST Representation

To see the general representation in IL or ST language, refer to the chapter Function and Function Block Representation.

I/O Variable Description

Each analog/temperature I/O channel of the requested module requires one byte of memory. If there is not sufficient memory allocated to the buffer for the number of I/O module channel statuses requested, it is possible that the function will overwrite memory allocated for other purposes, or perhaps attempt to overwrite a restricted area of memory.

WARNING
	UNINTENDED EQUIPMENT OPERATION Ensure that pStatusBuffer is pointing to a memory area that has been sufficiently allocated for the number of channels to be read. Failure to follow these instructions can result in death, serious injury, or equipment damage.

The following table describes the input variables:

Input	Type	Comment
ModuleIndex	BYTE	Index of the expansion module (0 for the module closest to the controller, 1 for the second closest, and so on)
StatusOffset	BYTE	Offset of the first status to be read in the status table.
StatusSize	BYTE	Number of bytes to be read in the status table.
pStatusBuffer	POINTER TO BYTE	Buffer containing the read status table (IBStatusIWx / IBStatusQWx).

The following table describes the output variable:

Output	Type	Comment
TM3_GetModuleInternalStatus	TM3_ERR_CODE	Returns `TM3_NO_ERR` (00 hex) if command is correct otherwise returns the ID code of the error. For the purposes of this function block, any returned value other than zero indicates that the module is not compatible with the status request, or that the module has other communication issues.

Example

The following examples describe how to get the module internal status:

VAR
TM3AQ2_Channel_0_Output_Status: BYTE;
END_VAR

TM3AQ2 is on position 1

Status of channel 0 is at offset 0

We read 1 channel

TM3_GetModuleInternalStatus(1, 0, 1, ADR(TM3AQ2_Channel_0_Output_Status));

status of channel 0 is in TM3AQ2_Channel_0_Output_Status

TM3AQ2 module (2 outputs)

Getting the status of first output QW0

StatusOffset = 0 (0 inputs x 2)
StatusSize = 1 (1 status to read)
pStatusBuffer needs to be at least 1 byte

VAR
TM3AM6_Channels_1_2_Input_Status: ARRAY[1..2] OF BYTE;
END_VAR

TM3AM6 is on position 1

Status of channel 1 is at offset 1

We read 2 consecutive channels

TM3_GetModuleInternalStatus(1, 1, 2, ADR(TM3AM6_Channels_1_2_Input_Status));

status of channel 1 is in TM3AM6_Channels_1_2_Input_Status[1]

status of channel 2 is in TM3AM6_Channels_1_2_Input_Status[2]

TM3AM6 module (4 inputs, 2 outputs)

Getting the status of input IW1 & IW2 (IW0 being the first one)

StatusOffset = 1 (1 to skip IW0 status)
StatusSize = 2 (2 statuses to read)
pStatusBuffer needs to be at least 2 bytes
