Slice Description

Overview

A slice is an expansion module that has one of the following functions in the TM5 System:

oExpansion I/Os or

oPower distribution or

oCommon distribution or

oExpansion bus

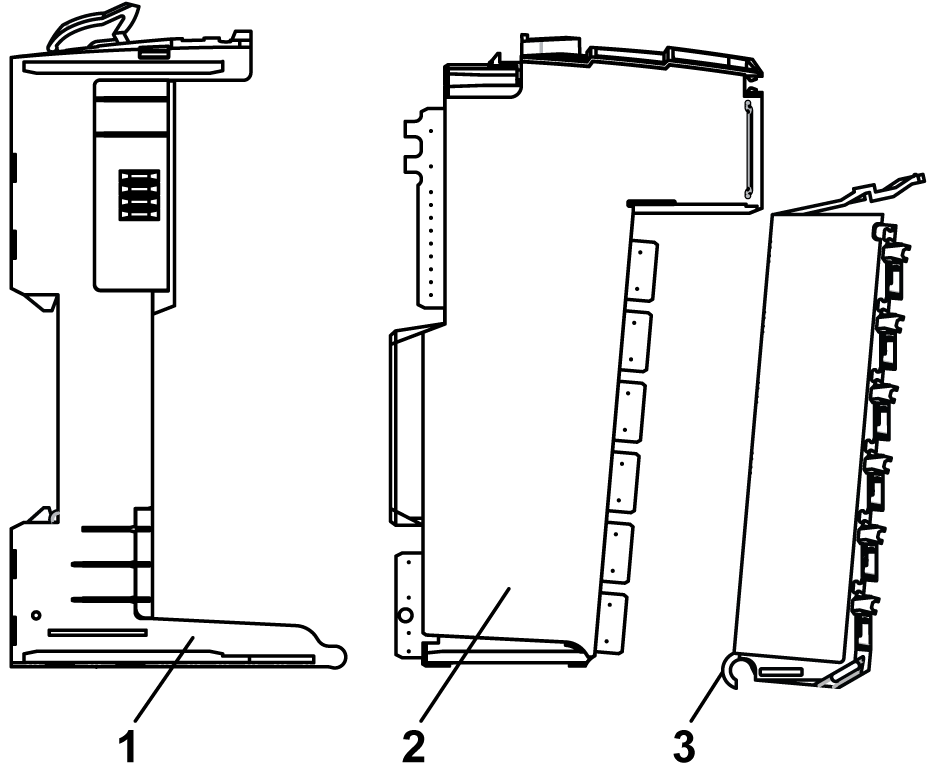

The following figure shows the three components of a slice:

1 Bus base

2 Electronic module

3 Terminal block

DANGER

INCOMPATIBLE COMPONENTS CAUSE ELECTRIC SHOCK OR ARC FLASH

oDo not associate components of a slice that have different colors.

oAlways confirm the compatibility of slice components and modules before installation using the association table in this manual.

oVerify that correct terminal blocks (minimally, matching colors and correct number of terminals) are installed on the appropriate electronic modules.

Failure to follow these instructions will result in death or serious injury.

The bus base and the terminal block for the electronic module, must be ordered separately. For the references see respective sections below.

When assembled the three components form an integral unit that resists vibration and electrostatic discharge.

NOTICE

ELECTROSTATIC DISCHARGE

oNever touch the contacts of the electronic module.

oAlways keep the connector in place during normal operation.

Failure to follow these instructions can result in equipment damage.

The compatibility table gives the possible associations between components of a slice.

Bus Base Description

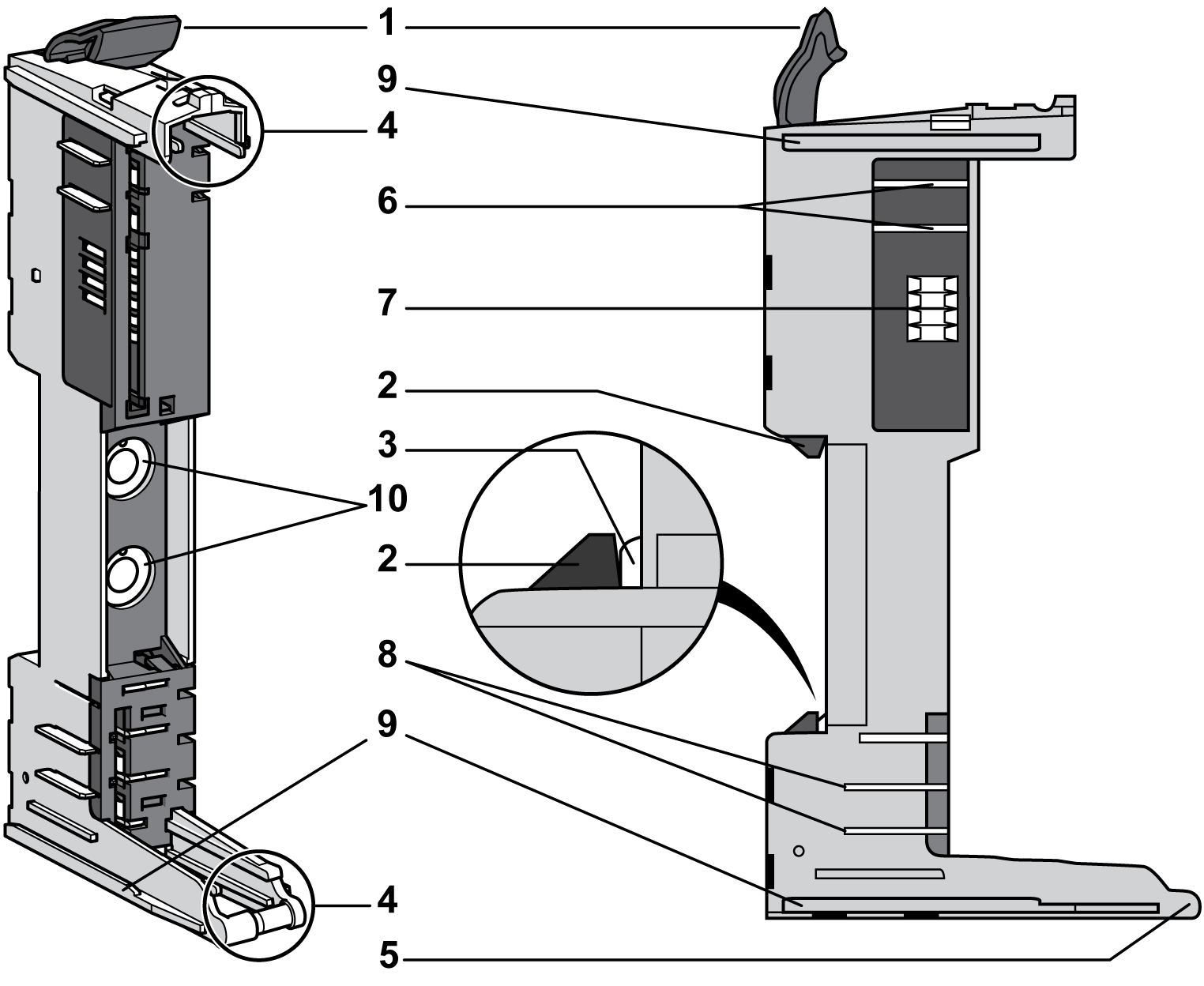

The following figures shows the different parts of the bus base:

1 Locking lever

2 DIN rail locking mechanism

3 DIN rail contact

4 Guides for assembly of the electronic module

5 Rotation axle for terminal block

6 TM5 bus power contacts

7 TM5 bus data contacts

8 24 Vdc I/O power segment contacts

9 Interlocking guides

10 Address setting rotary switches (optional, depending on references)

This table gives the different types of bus bases:

Reference	Bus Base Description	Color
TM5ACBM11	Bus base 24 Vdc 24 Vdc I/O power segment pass-through	White
TM5ACBM15	Bus base 24 Vdc 24 Vdc I/O power segment pass-through with address setting	White
TM5ACBM01R	Bus base 24 Vdc for PDM and Receiver modules 24 Vdc I/O power segment left isolated	Gray
TM5ACBM05R	Bus base 24 Vdc for PDM and Receiver modules 24 Vdc I/O power segment left isolated with address setting	Gray
TM5ACBM12	Bus base for AC modules 24 Vdc I/O power segment pass-through	Black

Electronic Module Description

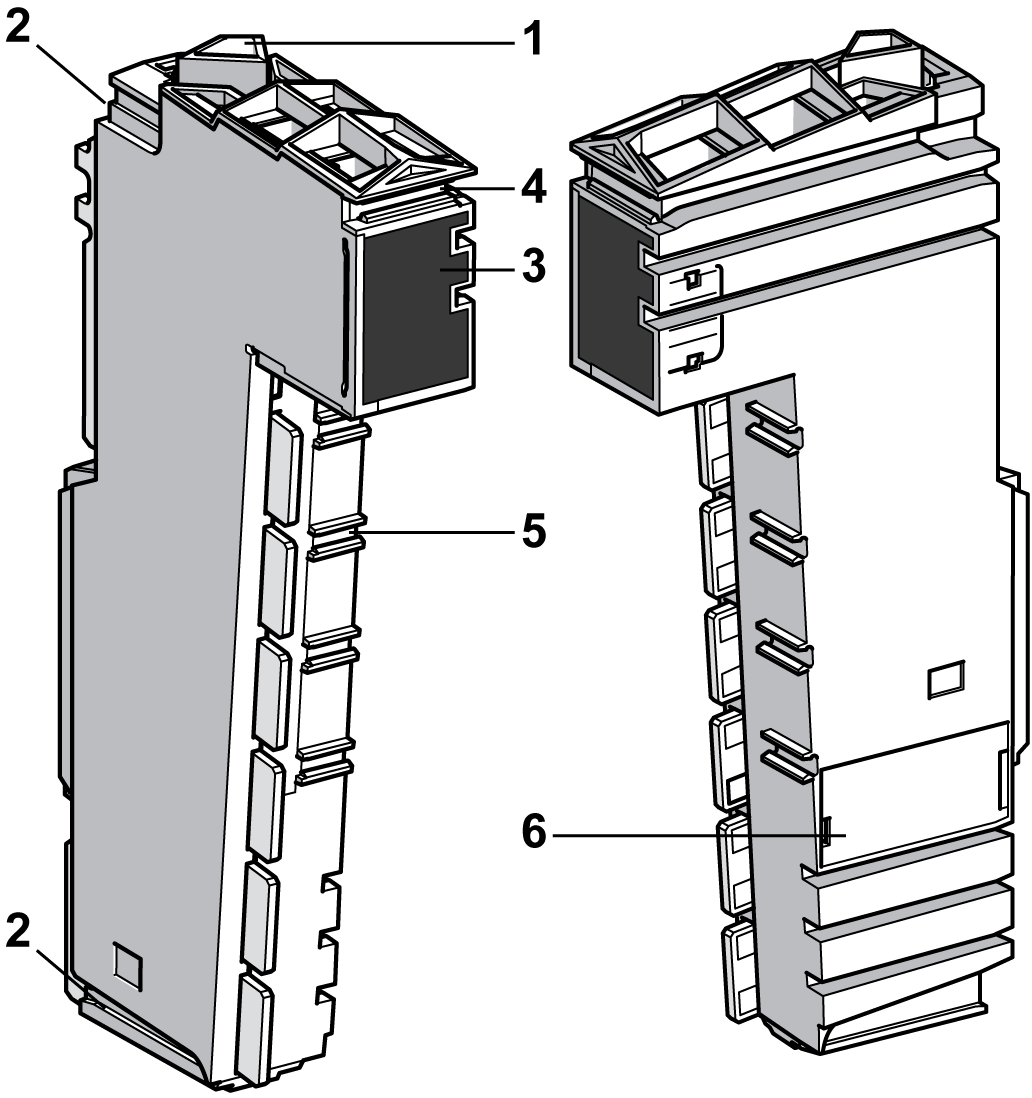

The following figure shows the different parts of the electronic modules:

1 Locking lever

2 Guides for assembly

3 Display (LEDs)

4 Slot for labeling

5 Slot to code the electronic module and the associated terminal block

6 Internal fuse exchangeable (depending on references)

This table presents the different types of electronic modules:

Reference	Electronic Module Description	Color	Refer to
TM5SD••	Digital modules	White or black	Modicon TM5 Digital I/O Modules Hardware Guide
TM5SA••	Analog modules	White	Modicon TM5 Analog I/O Modules Hardware Guide
TM5SPS1•	Power Distribution Modules (PDM)	Gray	TM5 Power Distribution Modules
TM5SPS2•	Power Distribution Modules (PDM)	Gray	TM5 Power Distribution Modules
TM5SPS3	Interface Power Distribution Module (IPDM)	Gray	TM5 Interface Power Distribution Module IPDM
TM5SE••	Expert modules	White	Modicon TM5 Expert (High Speed Counter) Modules Hardware Guide
TM5SBET••	Transmitter modules	White	Modicon TM5 Transmitter and Receiver Modules Hardware Guide
TM5SBER••	Receiver module	Gray	Modicon TM5 Transmitter and Receiver Modules Hardware Guide
TM5SPD••	Common Distribution Modules (CDM)	White	TM5 Common Distribution Modules
TM5SD000	Dummy module	White	TM5 Accessories Modules

Terminal Block Description

The main features of the terminal block are:

oTool-free wiring with spring clamp push-in technology

oPush-button wire release

oAbility to label each terminal

oPlain text labeling also possible

oTest access for standard probes

oCan be custom-coded

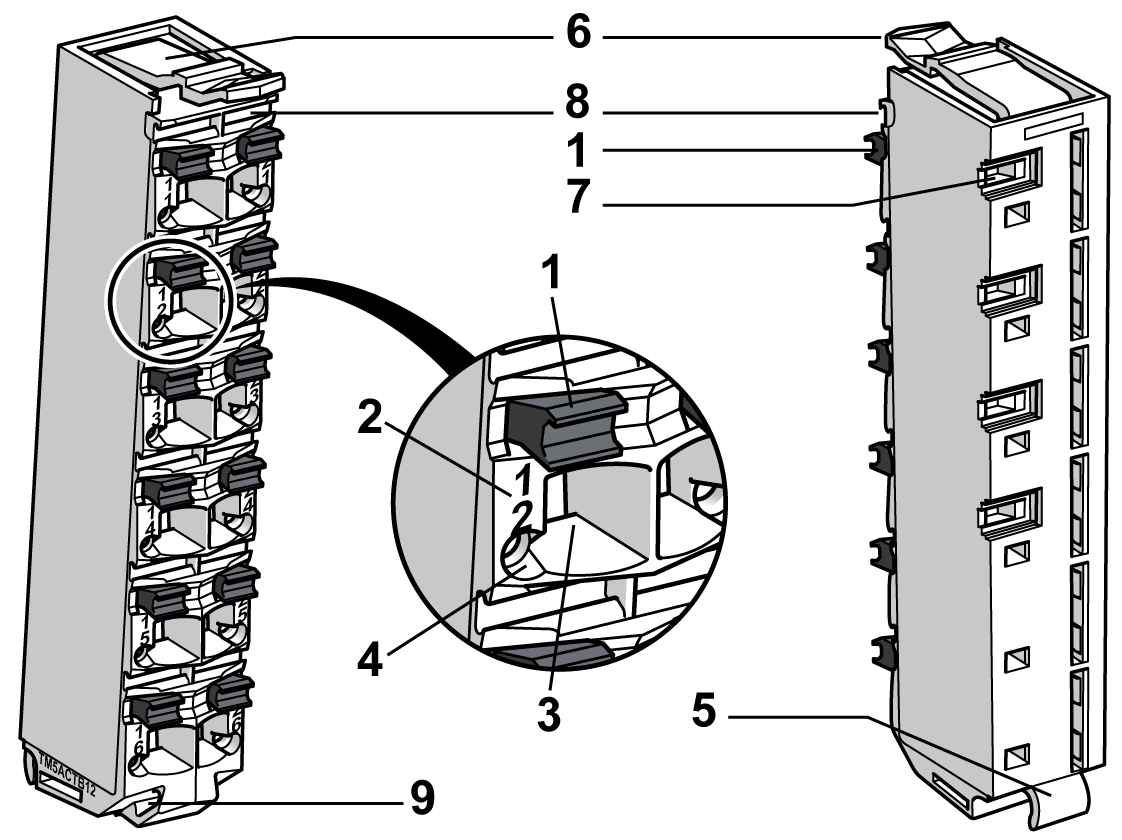

The following figure shows the different parts of the terminal block:

1 Wire release push-button

2 Pin assignment

3 Spring clamp connector

4 Test access point

5 Hinge for the axle on the bus base

6 Latch for the electronic module

7 Back slot for coding

8 Front slot for labeling

9 Slot for cable tie

This table gives the different types of terminal blocks:

Reference	Terminal Block Description	Color
TM5ACTB06	24 Vdc, 6-pin terminal block	White
TM5ACTB12	24 Vdc, 12-pin terminal block	White
TM5ACTB12PS	24 Vdc, 12-pin terminal block for PDM, IPDM and Receiver electronic module	Gray
TM5ACTB16	24 Vdc, 16-pin terminal block	White
TM5ACTB32	240 Vac, 12-pin terminal block	Black
