Run/Stop

Overview

The M262 Logic/Motion Controller can be operated externally by the following:

A hardware Run/Stop switch.
An EcoStruxure Machine Expert software command.
A Run/Stop operation triggered by an embedded digital input. The digital input is defined in the software configuration. For more information, refer to the M262 Logic/Motion Controller Programming Guide.
The system variable PLC_W in a Relocation Table.
The Web server.

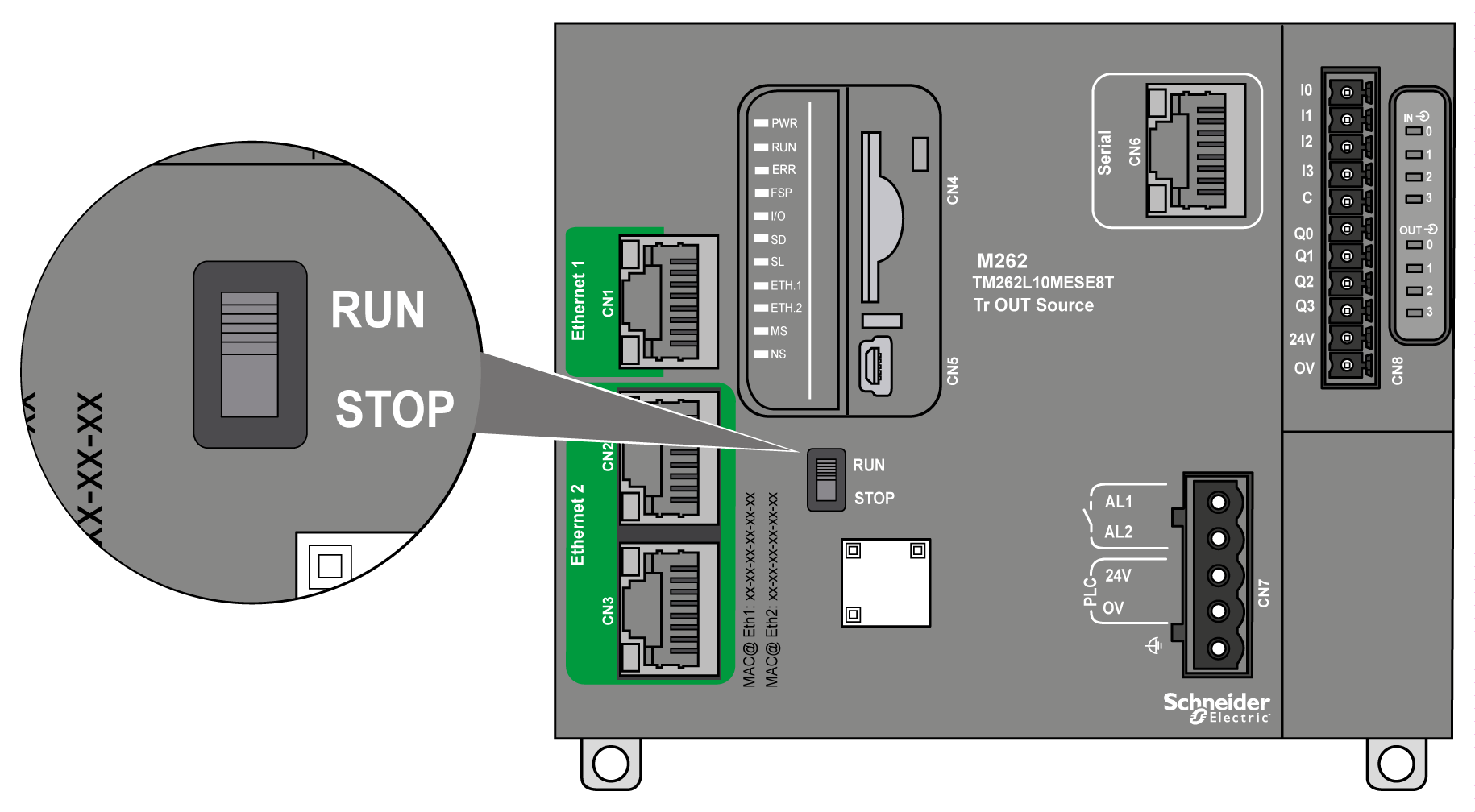

The M262 Logic/Motion Controller has a hardware Run/Stop switch, which puts the controller in the RUNNING or STOPPED state.

The interaction of the 2 external operators on the controller state behavior is summarized in the table below:

		Embedded hardware Run/Stop switch
		Switch on Stop	Stop to Run transition	Switch on Run
Software configurable Run/Stop digital input	None	STOPPED Ignores external Run/Stop commands.	Commands a transition to RUNNING state ⁽¹⁾.	Allows external Run/Stop commands.
	State 0		STOPPED Ignores external Run/Stop commands.	STOPPED Ignores external Run/Stop commands.
	Rising edge		Commands a transition to RUNNING state ⁽¹⁾.	Commands a transition to RUNNING state.
	State 1		Commands a transition to RUNNING state ⁽¹⁾.	Allows external Run/Stop commands.
⁽¹⁾ For more information, refer to the M262 Logic/Motion Controller Programming Guide.

WARNING
	UNINTENDED MACHINE OR PROCESS START-UP Verify the state of security of your machine or process environment before applying power to the Run/Stop input or engaging the Run/Stop switch. Use the Run/Stop input to help prevent the unintentional start-up from a remote location, or from accidentally engaging the Run/Stop switch. Failure to follow these instructions can result in death, serious injury, or equipment damage.

WARNING

UNINTENDED MACHINE OR PROCESS START-UP

Verify the state of security of your machine or process environment before applying power to the Run/Stop input or engaging the Run/Stop switch.
Use the Run/Stop input to help prevent the unintentional start-up from a remote location, or from accidentally engaging the Run/Stop switch.

Failure to follow these instructions can result in death, serious injury, or equipment damage.
