Digital Outputs

Overview

The Modicon M262 Logic/Motion Controller has 4 embedded fast digital outputs.

The digital outputs are connected on the front face of the controller.

DANGER
	FIRE HAZARD Use only the correct wire sizes for the maximum current capacity of the I/O channels and power supplies. Failure to follow these instructions will result in death or serious injury.

WARNING
	UNINTENDED EQUIPMENT OPERATION Do not exceed any of the rated values specified in the environmental and electrical characteristics tables. Failure to follow these instructions can result in death, serious injury, or equipment damage.

The table below describes the characteristics of the embedded digital outputs:

Characteristic		Value
Number of output channels		4 outputs (Q0...Q3)
Output type		Transistor
Output signal type		Source (push-pull)
Rated output voltage		24 Vdc
Output current		500 mA
Total output current		2 A
Leakage current when switched off		< 0.01 mA
Maximum power of filament lamp		1.5 W max.
Turn on time		1 μs max.
Turn off time		1 μs max.
Protection against short circuit or overload		Yes. Typical current 5 A per output. Defect managed by group: Q0...Q3
Automatic rearming after short circuit or overload		Yes, 10 sec. (enabled/disabled by EcoStruxure Machine Expert software)
Isolation	Between output channels	No
	Between output and internal logic	550 Vac for 1 minute
	Between output and input	550 Vac for 1 minute
Cable length		< 30 m (98.4 ft)
Connection type		Removable spring terminal block
Connector insertion/removal durability		Over 100 times
NOTE: Refer to Protecting Outputs from Inductive Load Damage for additional information concerning output protection.

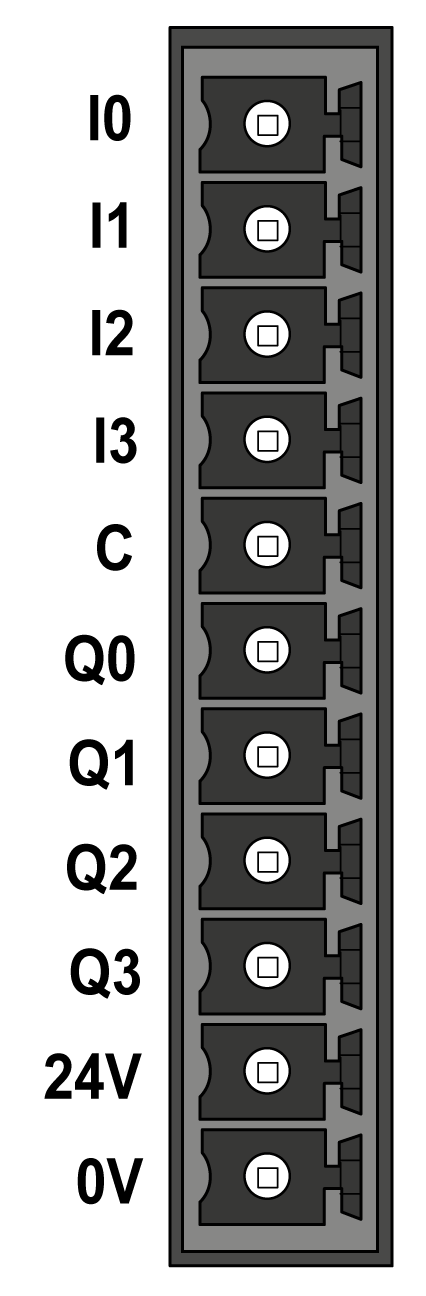

This illustration describes the pin assignment of the connector:

This table describes the pin assignment of the embedded I/O connector:

Pin	Label	Description
6	Q0	Digital output 0
7	Q1	Digital output 1
8	Q2	Digital output 2
9	Q3	Digital output 3
10	24V	Outputs and encoder 24 Vdc power supply
11	0V	Outputs and encoder 0 Vdc power supply

This tables shows the characteristics of the power supply provided by the controller to the embedded digital outputs and the encoder interface.

Characteristic	Value
Nominal voltage	24 Vdc
Power supply voltage range	20.4...28.8 Vdc (ripple ± 10% Un)
Power supply type	PELV
Maximum input current	2.6 A
Inrush current	Not limited
Voltage drop immunity	No
Reverse polarity protection	Yes
Overload protection	No. Non-replaceable 4 A slow fuse
Overvoltage protection	No
Voltage presence detection	Yes, typically >16 V I/O Status Codes diagnostic is available in EcoStruxure Machine Expert software
Isolation	550 Vac for 1 minute
Cable length	< 3 m (9.84 ft)

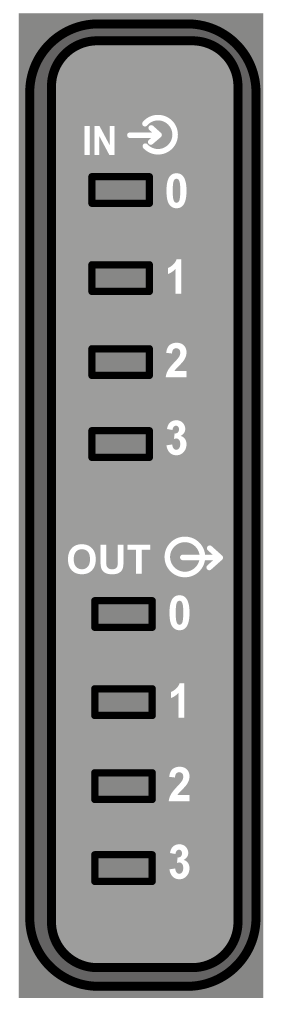

This figure shows the I/O status LEDs:

LED	Color	Status	Description
0...3	Green	On	The corresponding output channel is activated
0...3	Green	Off	The corresponding output channel is deactivated

NOTE: The LEDs indicate the logic state of each output.

Electromagnetic perturbations may cause the application to operate in an unexpected manner.

WARNING
	UNINTENDED EQUIPMENT OPERATION Adapt the programmable filtering to the frequency applied at the inputs. Use shielded cables wherever specified, connected to the functional ground using the TM2XMTGB grounding bar. Use a specific 24 Vdc supply for inputs and outputs. Failure to follow these instructions can result in death, serious injury, or equipment damage.

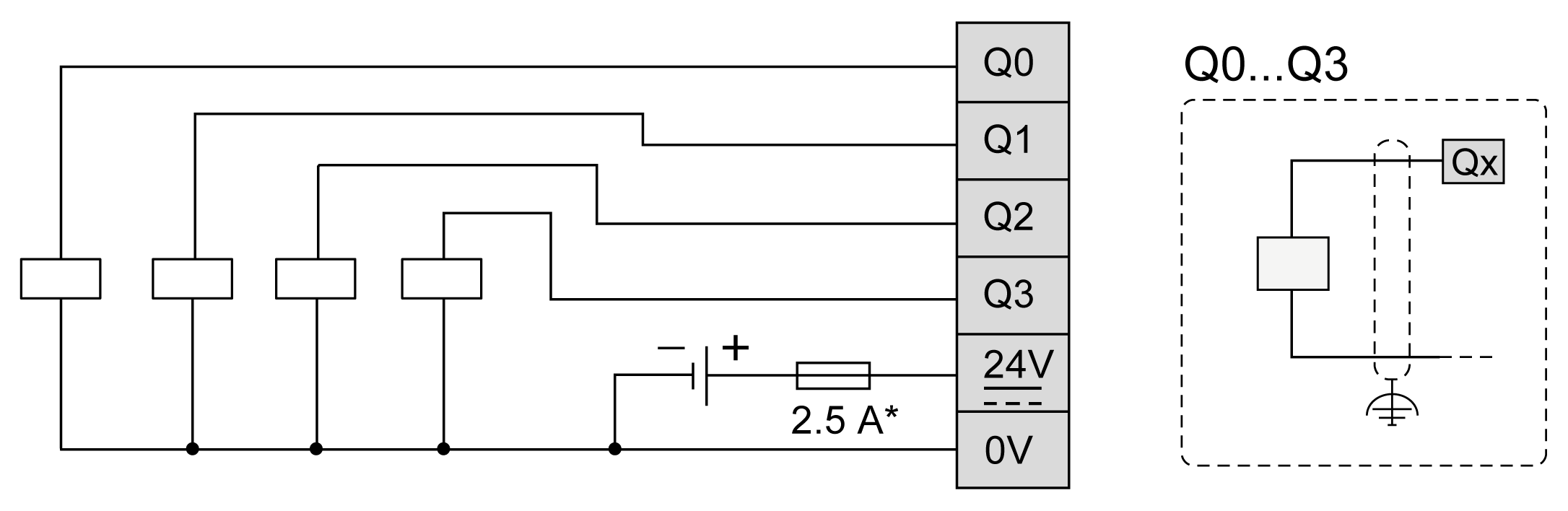

This illustration presents the fast outputs wiring diagram:

* Use a type T fuse appropriate for the load, not to exceed 2.5 A

WARNING
	UNINTENDED EQUIPMENT OPERATION Ensure that the physical wiring respects the connections indicated in the wiring diagram. Failure to follow these instructions can result in death, serious injury, or equipment damage.
