OPC UA Server Configuration

Introduction

The OPC UA Server Configuration window allows you to configure the OPC UA server. OPC UA server is using encrypted communication by default with maximum security settings set by default.

Accessing the OPC UA Server Configuration Tab

To configure the OPC UA Server:

Step	Action
1	In the Devices tree, double-click MyController.
2	Select the OPC UA Server Configuration tab.

OPC UA Server Configuration Tab

The following figure shows the OPC UA Server Configuration window:

OPC UA Server Configuration Description

This table describes the OPC UA Server Configuration parameters:

General Settings
Parameter	Value	Default value	Description
OPC UA Server Enabled	Enabled/ Disabled	Disabled	This checkbox is used to enable or disable the OPC UA Server and Client on the controller.

Security Settings
Parameter	Value	Default value	Description
Disable anonymous login	Enabled/ Disabled	Enabled	Uncheck this checkbox to allow anonymous login on OPC UA server.
Security Policy	None Basic256(deprecated) ⁽¹⁾ Basic256Sha256	Basic256Sha256	This drop-down menu allows you to secure your exchanges by signing and encrypting the data you send and receive.
Message Security	None Sign SignAndEncrypt	SignAndEncrypt	The messages are related to the Security Policy selected.
(1) Security policies marked as deprecated are policies which no longer afford an acceptable level of security.

Server Configuration
Parameter	Value	Default value	Description
Server port	1...65535	4840	The port number of the OPC UA server. OPC UA clients must append this port number to the TCP URL of the controller to connect to the OPC UA server.
Max. subscriptions per session	1...100	20	Specify the maximum number of subscriptions allowed within each session.
Min. publishing interval	200...5000	1000	The publishing interval defines how frequently the OPC UA server sends notification packages to clients. Specify the minimum time that must elapse between notifications, in ms.
Max. monitored items per subscription	1...1000	100	The maximum number of monitored items in each subscription that the server assembles into a notification package.
Min. KeepAlive interval	500...5000	500	The OPC UA server only sends notifications when the values of monitored items of data are modified. A KeepAlive notification is an empty notification sent by the server to inform the client that although no data has been modified, the subscription is still active. Specify the minimum interval between KeepAlive notifications, in ms.
Max. number of sessions	1...4	2	The maximum number of clients that can connect simultaneously to the OPC UA server.
Identifier type	String	String	Certain OPC UA clients require a specific format of unique symbol identifier (node ID).

Diagnostic
Parameter	Value	Default value	Description
Enable trace	Enabled/disabled	Enabled	Select this checkbox to include OPC UA diagnostic messages in the controller log file. Traces are available from the Log tab or from the System Log File of the Web server. You can select the category of events to write to the log file: None Error Warning System Info Debug Content All (default)
Sampling rates (ms)	200...5000	500 1000 2000	The sampling rate indicates a time interval, in milliseconds (ms). When this interval has elapsed, the server sends the notification package to the client. The sampling rate can be shorter than the publishing interval, in which case notifications are queued until the publishing interval has elapsed. Sampling rates must be in the range 200...5000 (ms). Up to 3 different sampling rates can be configured. Double-click on a sampling rate to edit its value. To add a sampling rate to the list, right-click and choose Add a new rate. To remove a sample rate from the list, select the value and click

Click Reset to default to return the configuration parameters on this window to their default values.

Client Certificate Management Tab

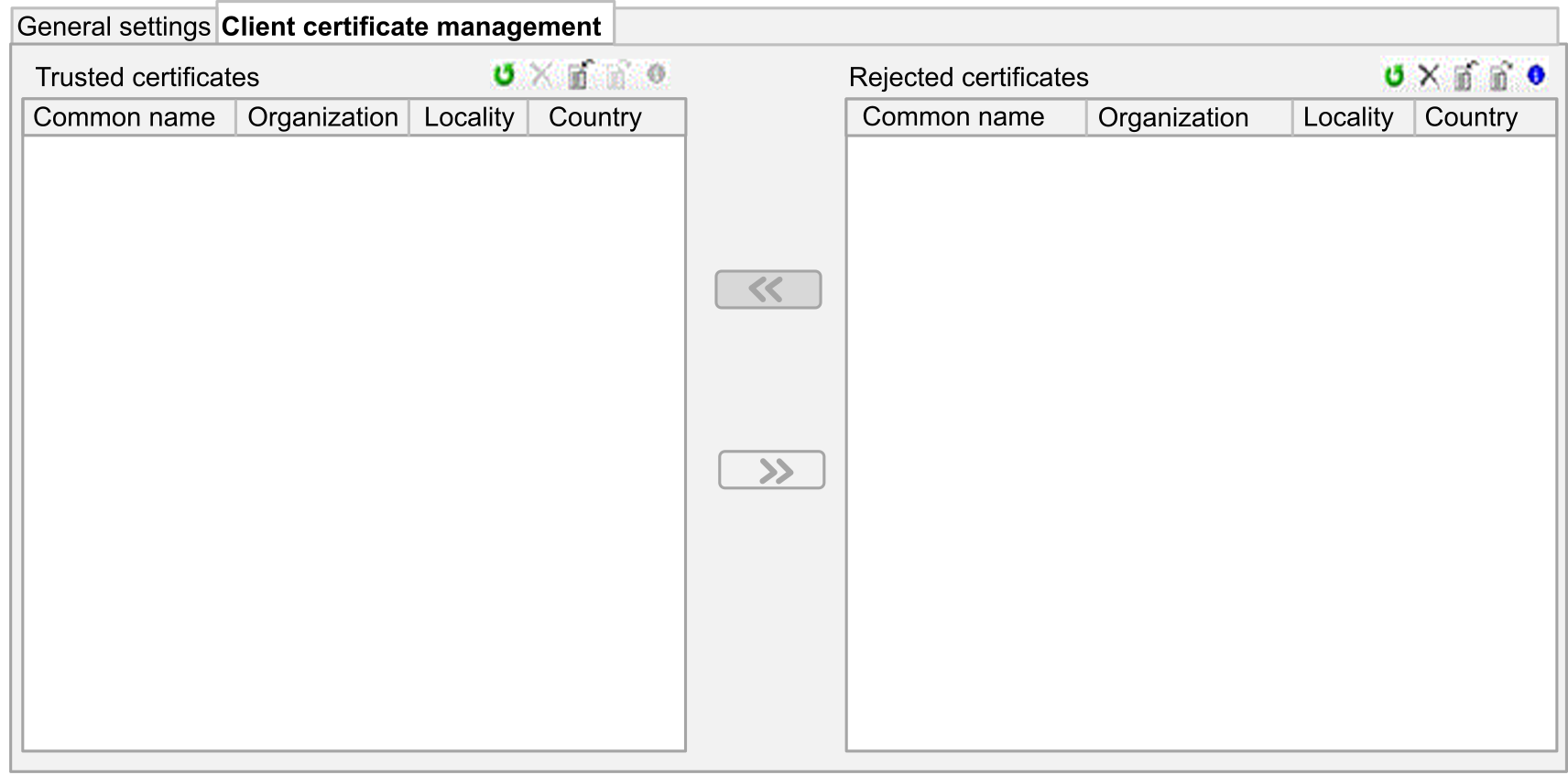

This tab allows you to determine which OPC UA client certificates are trusted by the M262 Logic/Motion Controller OPC UA server.

Client Certificate Management Tab, Toolbar

Element	Description
	Both certificate lists are loaded or refreshed.
	Deletes the selected certificates.
	Opens a Windows dialog box (Open) to import a certificate that is uploaded to the selected certificate list (trusted certificates list or rejected certificates list).
	Opens a Windows dialog box (Save as) to export the selected certificates to a selectable path.

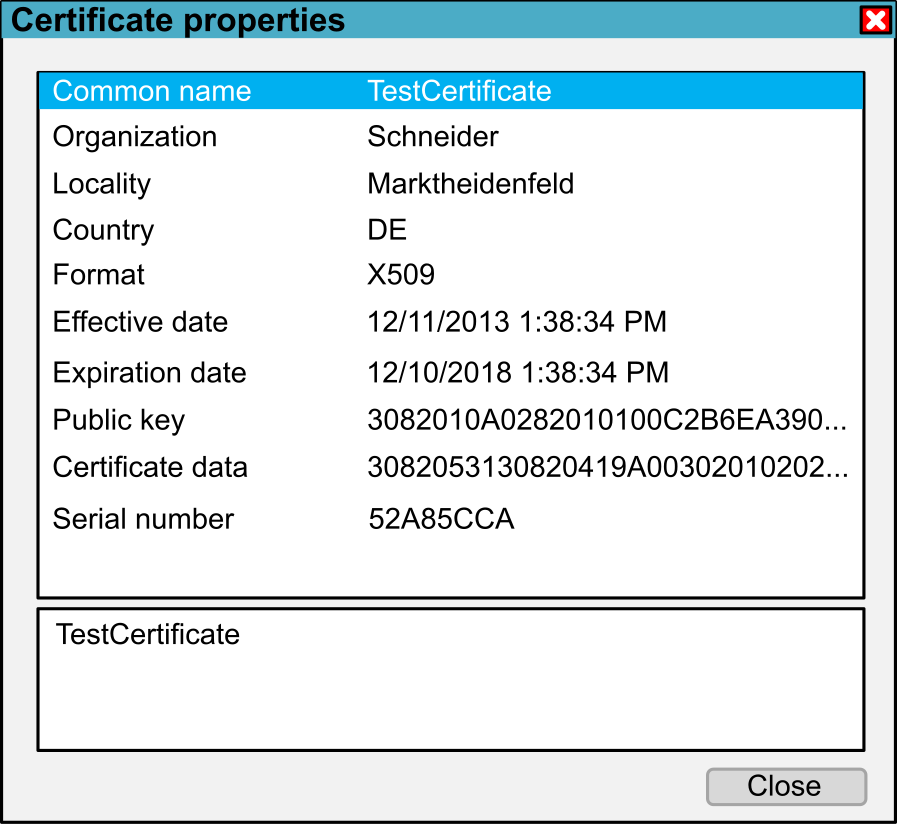

	Opens a dialog box containing additional information on the selected certificate.

Trusted Certificates List and Rejected Certificates List

A certificate contains common information about the company that owns the certificate, how long a certificate is valid, and so on. The certificate management provides two list views:

trusted certificates
rejected certificates.

Element	Description
Trusted certificates	This list includes the client certificates the server trusts.
Rejected certificated	This list includes the client certificates the server does not trust.
	Use the << and >> buttons to move a rejected certificate to the Trusted certificates list or the opposite way. During the moving procedure, a progress bar appears and displays the remaining files.

Element

Description

Trusted certificates

This list includes the client certificates the server trusts.

Rejected certificated

This list includes the client certificates the server does not trust.

Use the << and >> buttons to move a rejected certificate to the Trusted certificates list or the opposite way.

During the moving procedure, a progress bar appears and displays the remaining files.

NOTE: OPC UA client and server share the same default PKI folder structure, including the trusted and untrusted (rejected) folders, this means trusting or untrusting (rejecting) a certificate has the same effect for both client and server.

NOTE: The OPC UA self-signed certificate has a limitation when the network interface through which OPC UA communicates is using dynamic IP addresses (DHCP). If you configured DHCP in such interface, make sure your OPC UA peer accepts the M262 Logic/Motion Controller OPC UA self-signed certificate without validation.

OPC UA Certificates Management Actions

This table describes each action concerning OPC UA certificates management and how to achieve it.

Action / Task	EcoStruxure Machine Expert Security Screen ⁽¹⁾	EcoStruxure Machine Expert M262 Files Screen ⁽²⁾	EcoStruxure Machine Expert M262 OPC UA Server Screen ⁽³⁾	M262 Webpage Maintenance - Certificates	FTP Protocol ⁽²⁾
Access to M262 OPC UA PKI folders	YES	YES	YES	NO	YES
Import a certificate	YES	YES	YES	NO	YES
Export a Certificate	YES	YES	YES	NO	YES
Remove a certificate	YES	YES	YES	NO	YES
Trust / Untrust a certificate	NO	YES ⁽⁴⁾	YES	YES ⁽⁵⁾	YES ⁽⁴⁾
Check a certificate information	YES	NO	YES	NO	NO
PKI: Public Key Infrastructure. (1) Only for M262 own certificates folder. (2) Except M262 own certificates folder. (3) Only trusted and untrusted (rejected) certificate folders. (4) Requires to manually move the certificate from the trusted folder to the untrusted (rejected) folder (and vice-versa). (5) Requires Administrator access.

OPC UA PKI Folder List and Usage

The table describes the Public Key Infrastructure (PKI) shared between the M262 Logic/Motion Controller OPC UA server and OPC UA Client. It provides the folder list and their usage.

M262 File System Folders	Description
/usr/pki	Root folder of the default PKI
/usr/pki/issuer/certs	Contains Certificate Authority (CA) certificates that are required to validate Certification Paths
/usr/pki/issuer/crl	Contains Certificate Revocation Lists (CRL) for CA certificates
/usr/pki/trusted/certs	Contains Trusted certificates
/usr/pki/trusted/crl	Contains Certificate Revocation Lists (CRL) for the Trusted certificates
/usr/pki/untrusted	Contains Untrusted certificates
/usr/pki/quarantine	not used for M262 OPC UA (legacy for other services)
NOTE: Some of the PKI folders are only available after downloading the application enabling OPC UA (server/client), since some folders are only created in the runtime initialization of OPC UA.
