Diagnostic Menu

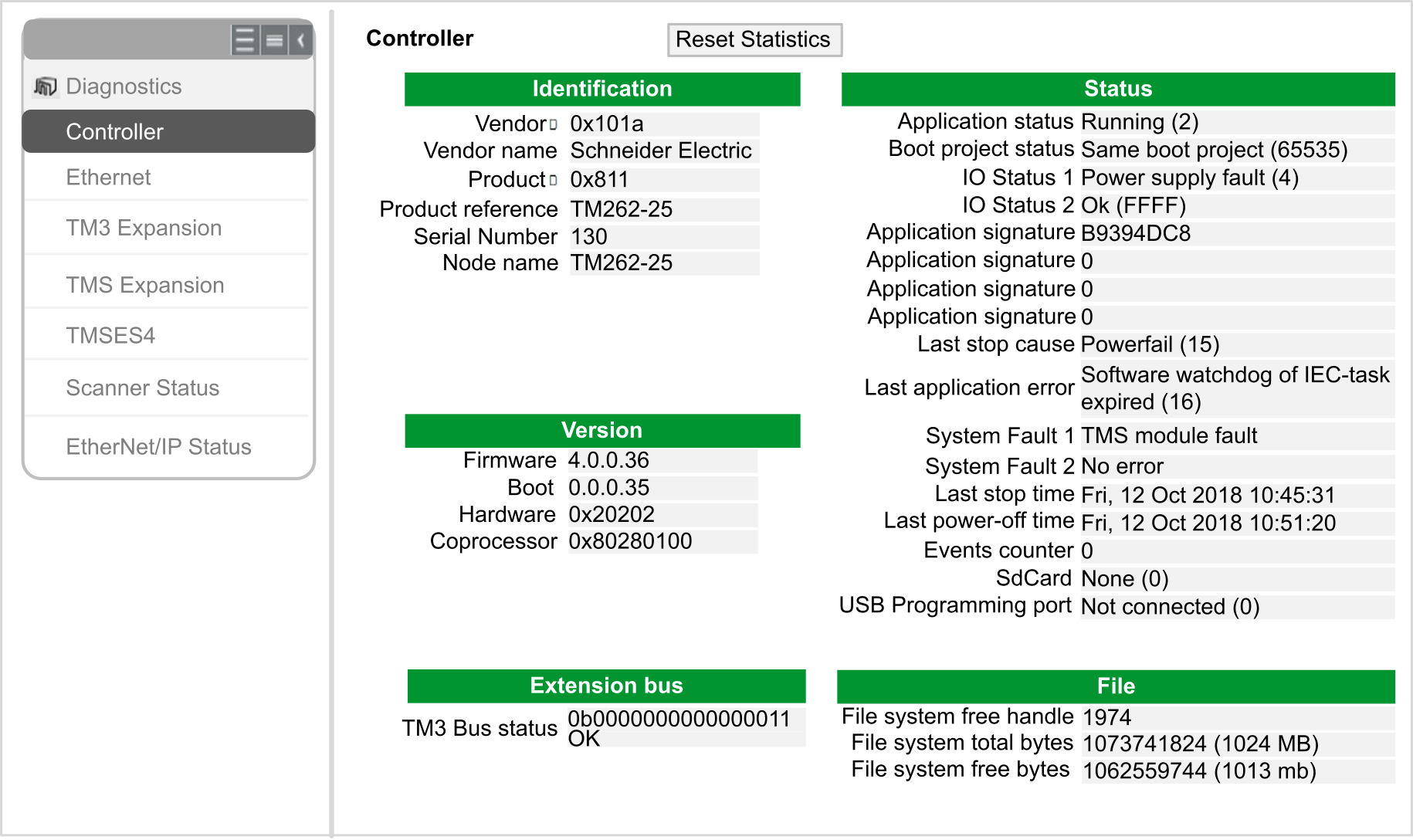

Diagnostic: Controller Submenu

The Controller submenu displays information about the controller:

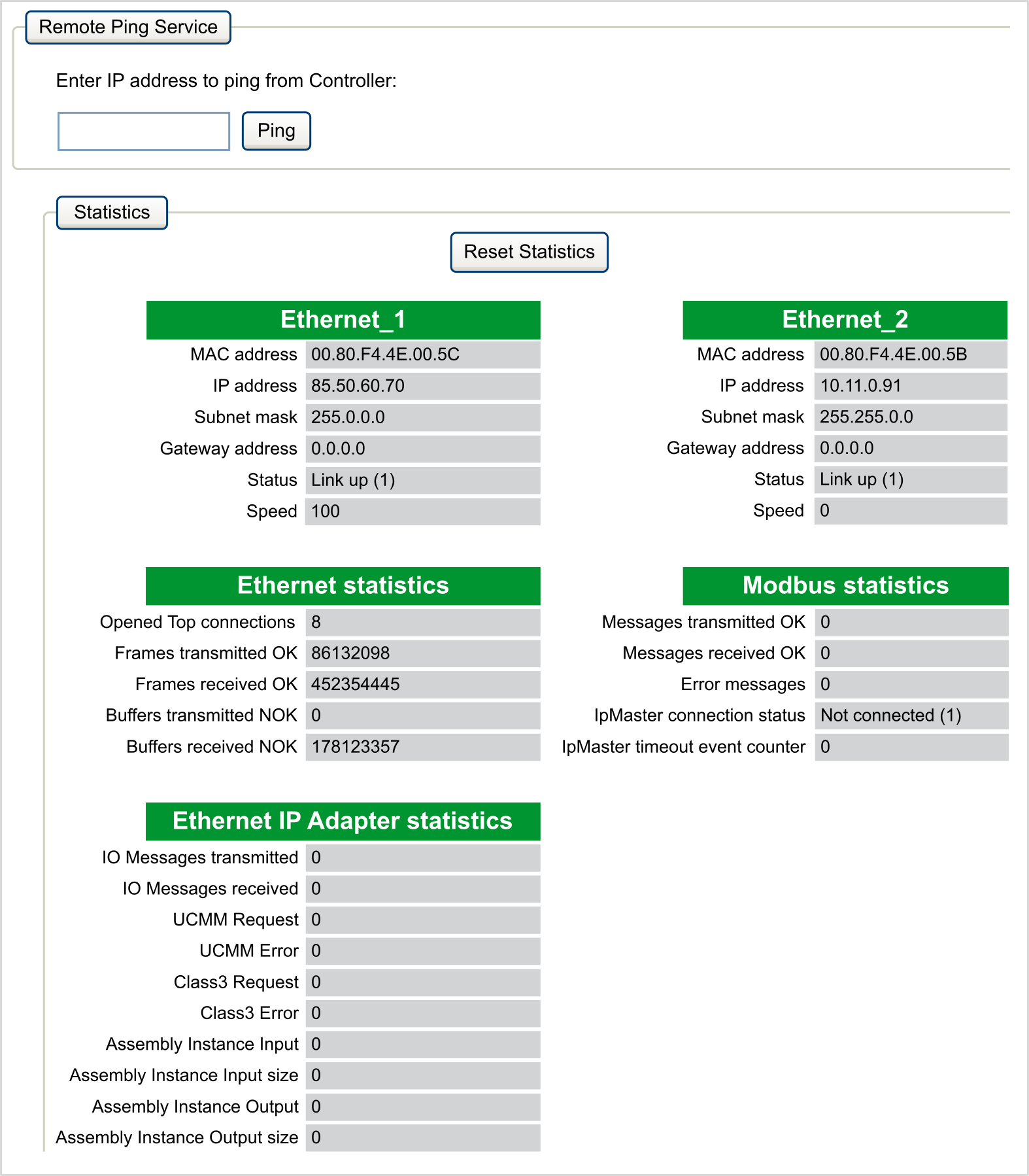

Diagnostics: Ethernet Submenu

The Ethernet submenu displays the Ethernet ports status and access to the remote ping service:

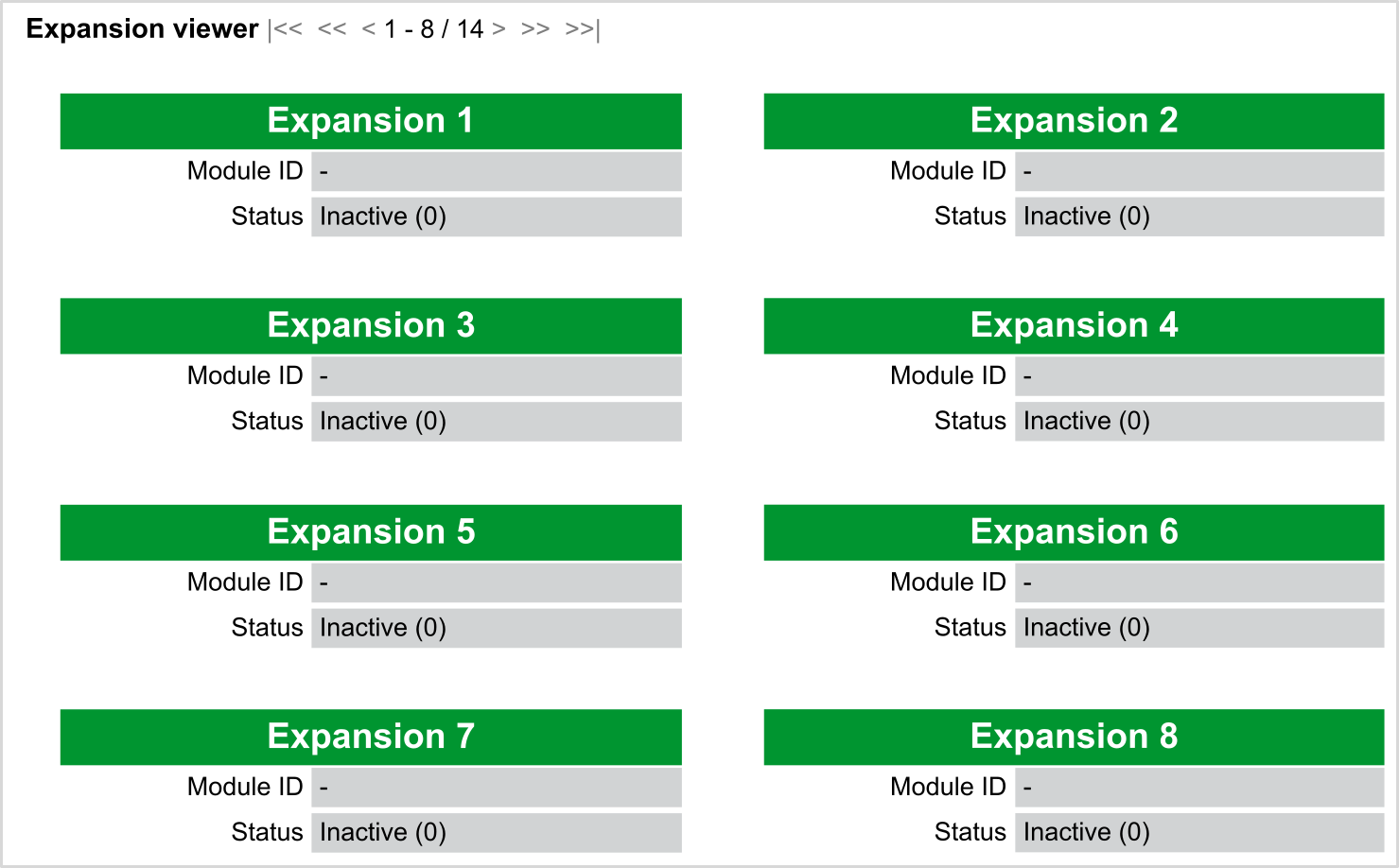

Diagnostics: TM3 Expansion Submenu

The TM3 Expansion viewer submenu shows the expansion modules status:

Diagnostics: TMS Expansion Submenu

The TMS Expansion viewer submenu shows the expansion modules status:

Diagnostics: TMSES4 Submenu

The TMSES4 Devices viewer submenu shows the status of the modules:

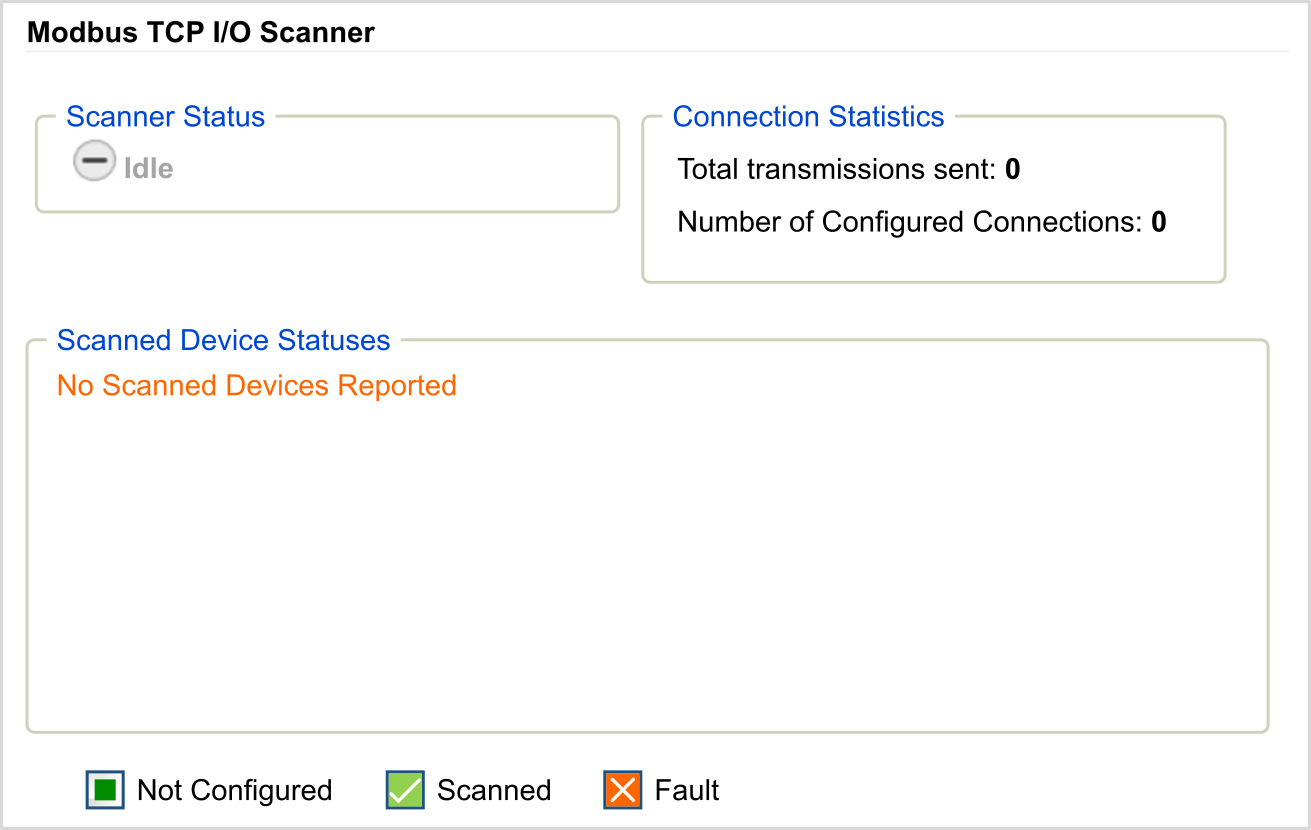

Diagnostics: Scanner Status Submenu

The Scanner Status submenu displays status of the Modbus TCP I/O Scanner (IDLE, STOPPED, OPERATIONAL) and the health bit of up to 64 Modbus slave devices:

For more information, refer to EcoStruxure Machine Expert Modbus TCP User guide.

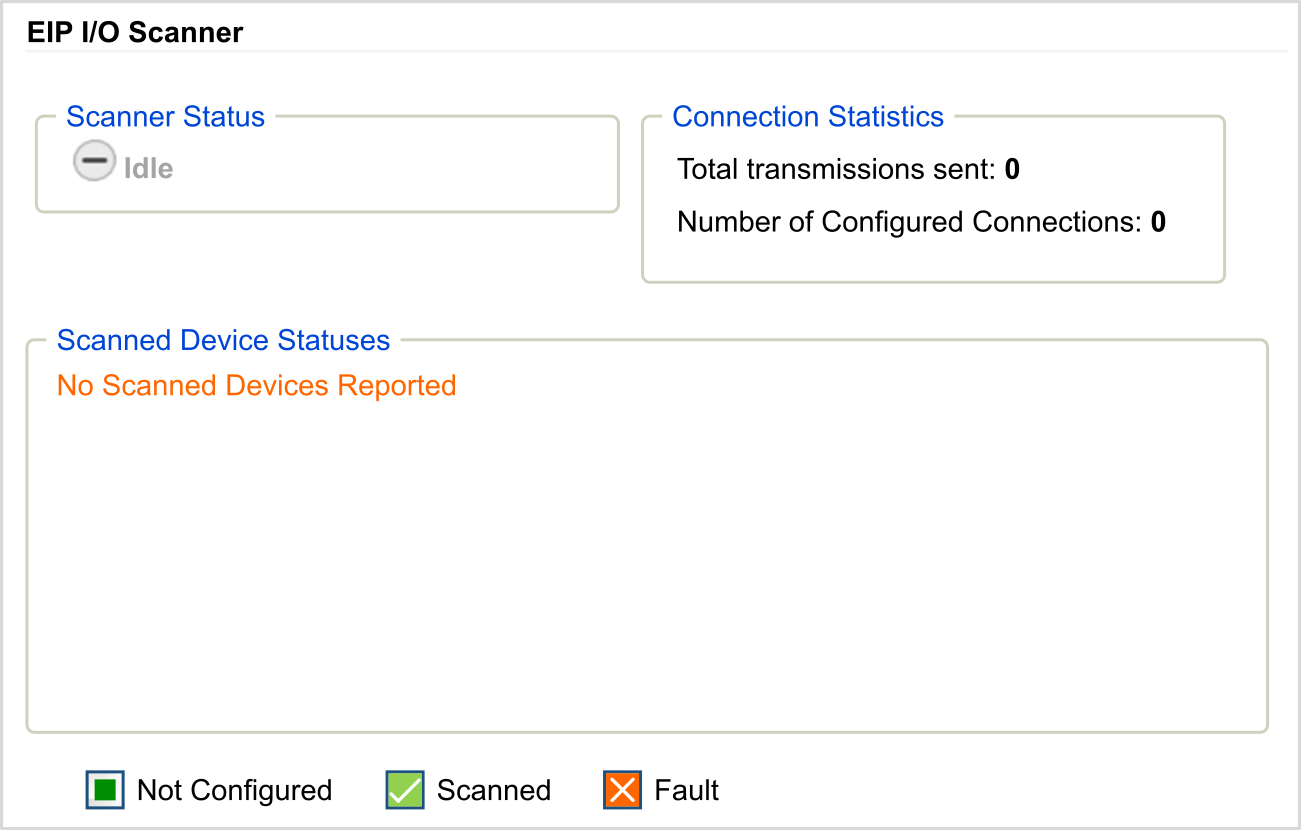

Diagnostics: EtherNet/IP Status Submenu

The EtherNet/IP Status submenu displays the status of the EtherNet/IP Scanner (IDLE, STOPPED, OPERATIONAL) and the health bit of up to 64 EtherNet/IP target devices:

For more information, refer to EcoStruxure Machine Expert EtherNet/IP User guide.
