TM5SPS3 Wiring Diagram

Wiring Diagram

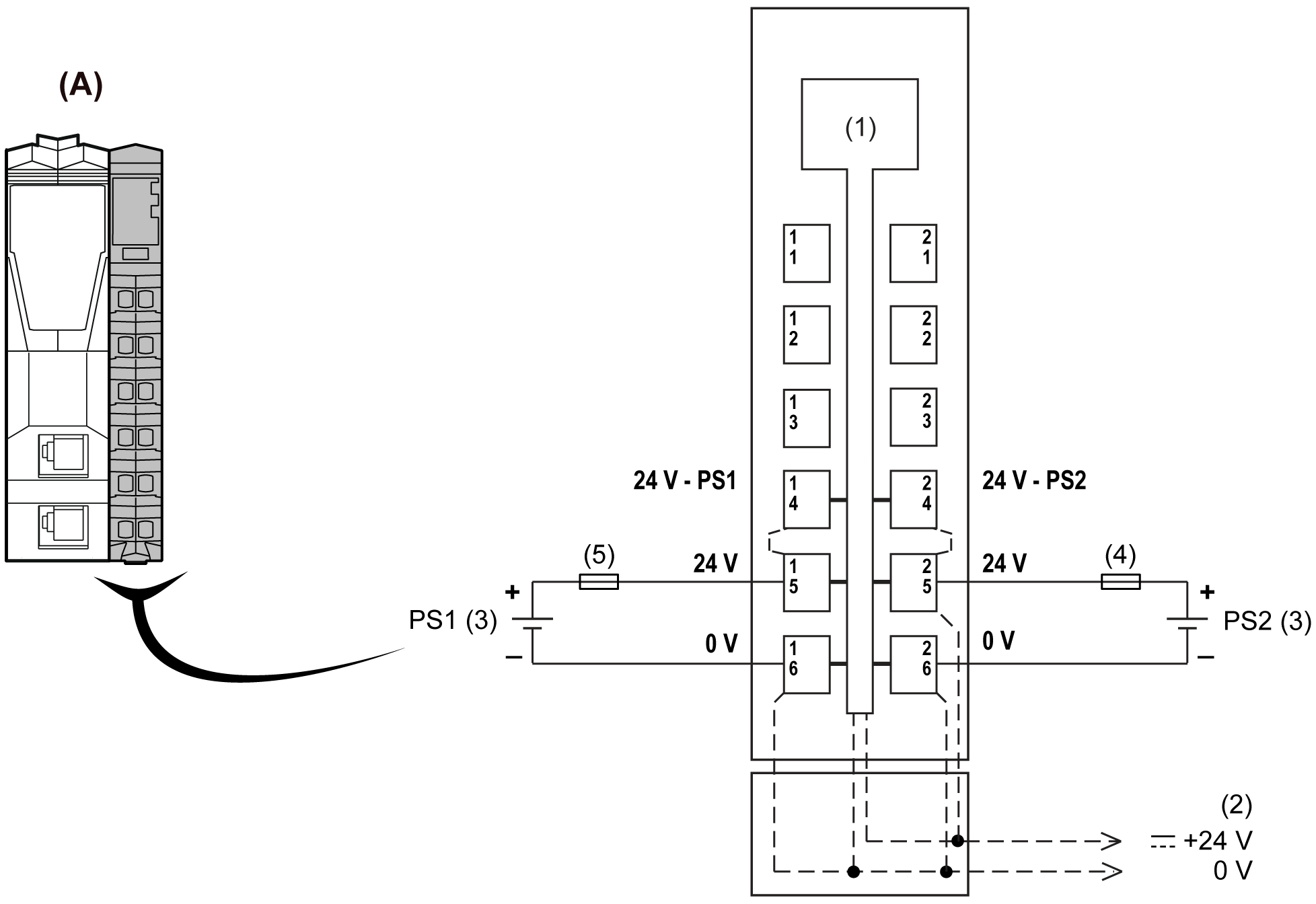

The following figure shows the wiring diagram for the Interface Power Distribution Module (IPDM) TM5SPS3:

A Interface Power Distribution Module (IPDM)

1 Internal electronics

2 24 Vdc I/O power segment integrated in the bus bases

3 PS1/PS2: External isolated power supply 24 Vdc

4 External fuse, Type T slow blow, 10 A maximum, 250 V

5 External fuse, Type T slow blow, 1 A, 250 V

NOTE: Connect the 0 Vdc power circuits together and to the functional ground (FE) of your system to meet the EMC requirements.

DANGER
	HAZARD OF ELECTRIC SHOCK, EXPLOSION, OVERHEATING AND FIRE Do not connect the modules directly to line voltage. Use only isolating PELV systems according to IEC 61140 to supply power to the modules. Connect the 0 Vdc of the external power supplies to FE (Functional Earth/ground). Failure to follow these instructions will result in death or serious injury.

WARNING
	UNINTENDED EQUIPMENT OPERATION Do not connect wires to unused terminals and/or terminals indicated as “No Connection (N.C.)”. Failure to follow these instructions can result in death, serious injury, or equipment damage.
