Characteristics of the TM2DAI8DT Module
This section provides a description of the electrical and the input characteristics of the TM2DAI8DT module.
See also Environmental Characteristics.
|
|
|
UNINTENDED EQUIPMENT OPERATION |
|
Do not exceed any of the rated values specified in the environmental and electrical characteristics tables. |
|
Failure to follow these instructions can result in death, serious injury, or equipment damage. |

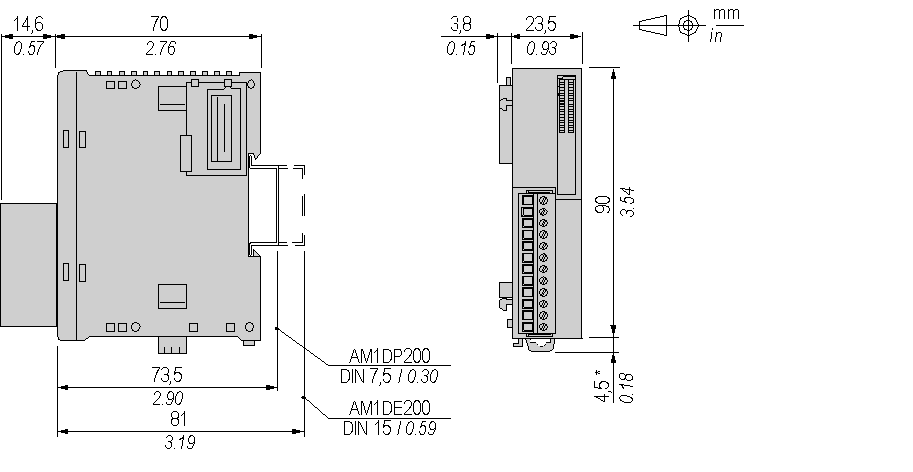

The following diagrams show the dimensions for the TM2DAI8DT module.
NOTE: * 8.5 mm (0.33 in) when the clamp is pulled out.
TM2DAI8DT Electrical Characteristics
|
Isolation |
Between input and internal bus: 1500 Vac Between input terminals: not isolated |
|
Connector insertion/removal durability |
Over 100 times |
|
Current draw on 5 Vdc internal bus |
55 mA (all outputs on) 25 mA (all outputs off) |
|
Current draw on 24 Vdc internal bus |
0 mA (all outputs on) 0 mA (all outputs off) |
TM2DAI8DT Input Characteristics
|
Number of input channels |
8 |
|
Common lines |
2 |
|
Input signals type |
AC type |
|
Rated input voltage |
120 Vac |
|
Input voltage range |
85...132 Vac |
|
Rated input current at 100 Vac |
7.5 mA |
|
Input impedance |
11 kΩ |
|
OFF state |
U < 20 Vac |
|
ON state |
U > 79 Vac I > 2 mA |
|
Turn on time |
25 ms |
|
Turn off time |
30 ms |
|
Input type |
Type 1 (IEC 61131-2) |
