Connecting the TM2DDO16UK Module
TM2DDO16UK is a 16-channel, transistor output module.
This module is fitted with an HE10 connector for the connection of outputs.
See Wiring Requirements.

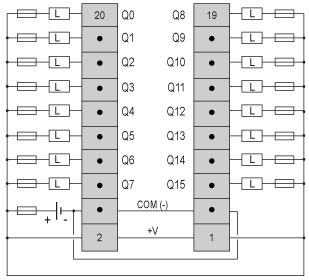

The following diagram shows the connection of the outputs module and the transistor output wiring.
oThe COM0(-) terminals are connected together internally.
oThe +V terminals are connected together internally.
oConnect an appropriate fuse for the load, not to exceed 0.125 A on the outputs and not to exceed 2 A on the power supply.
|
|
|
UNINTENDED EQUIPMENT OPERATION |
|
Do not connect wires to unused terminals and/or terminals indicated as “No Connection (N.C.)”. |
|
Failure to follow these instructions can result in death, serious injury, or equipment damage. |
