TM2DDO32UK

Introduction

This expansion module is a 32-point transistor sink output module with a HE10 connector.

For further hardware information, refer to TM2DDO32UK.

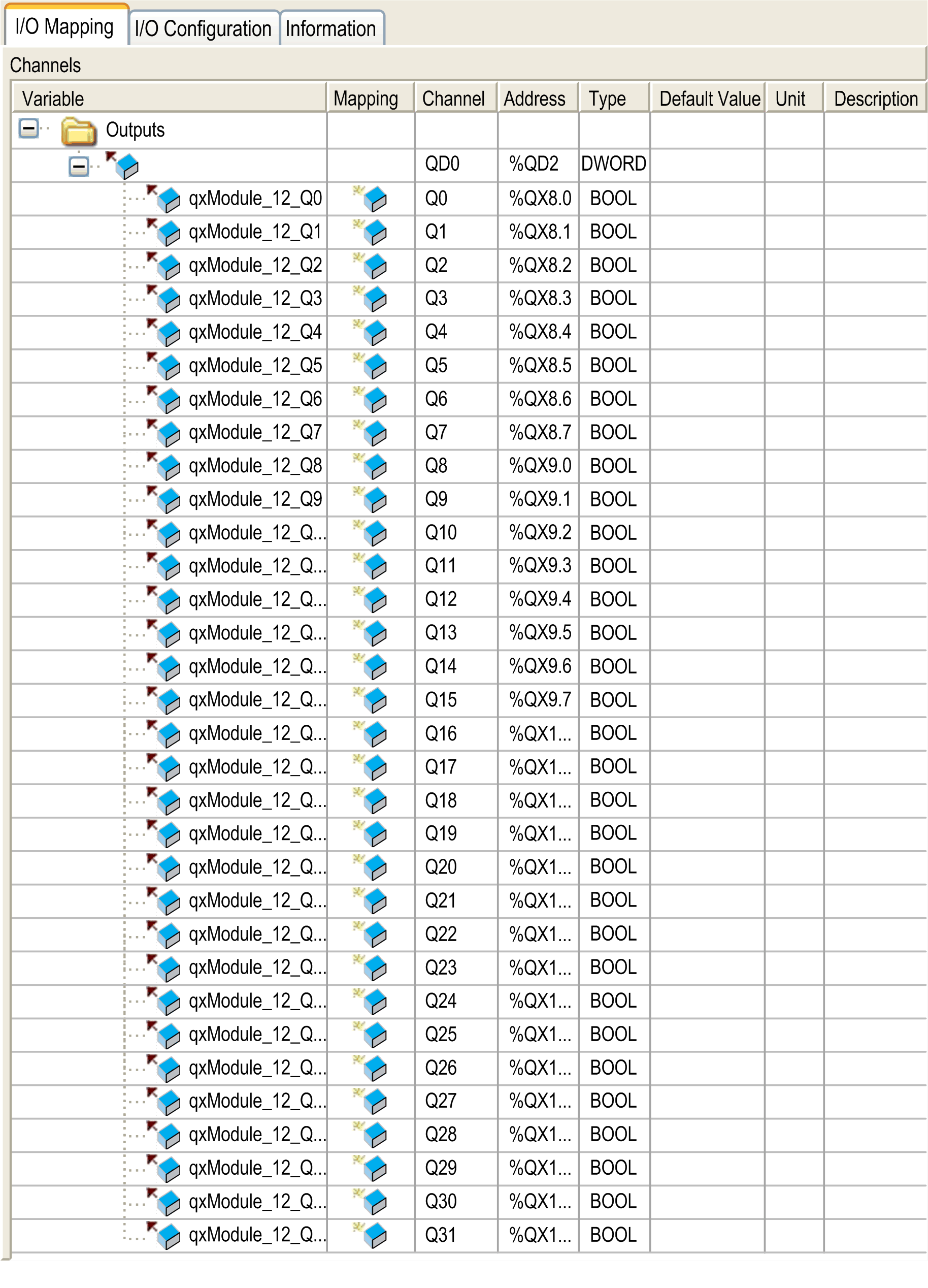

I/O Mapping Tab

This table identifies the addresses of each output and the channel name.





For further generic descriptions, refer to I/O Mapping Tab Description.

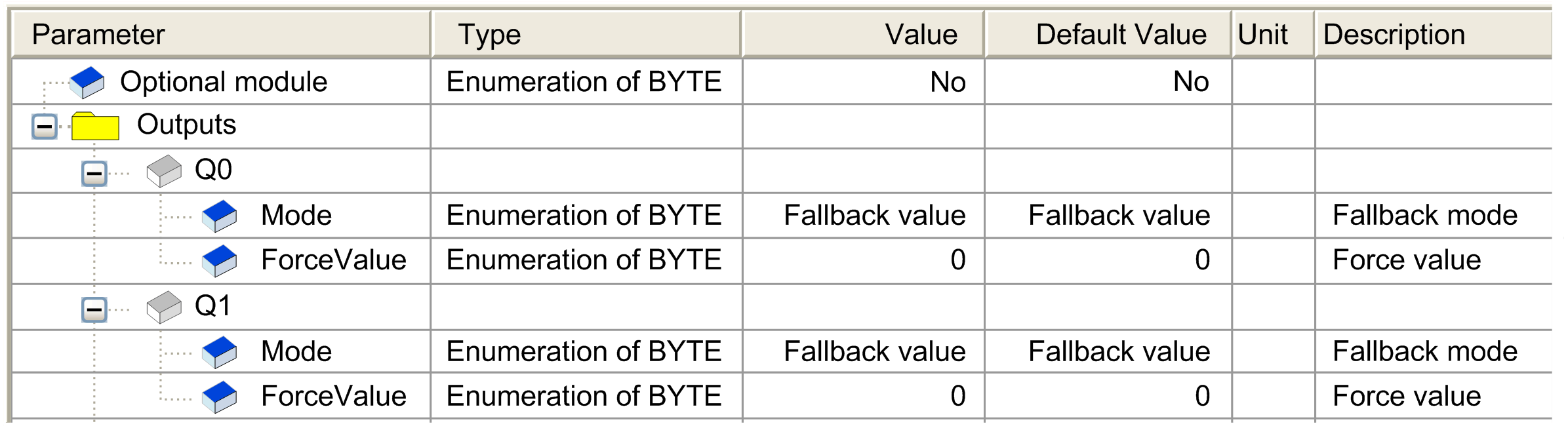

I/O Configuration Tab

This tab allows you to configure the module as an optional module:





If the module is connected to a distributed device, you can configure the fallback behavior.
