Introduction
These expansion modules have a built-in removable screw or spring terminal block for the connection of outputs and power supply.
Wiring Diagram

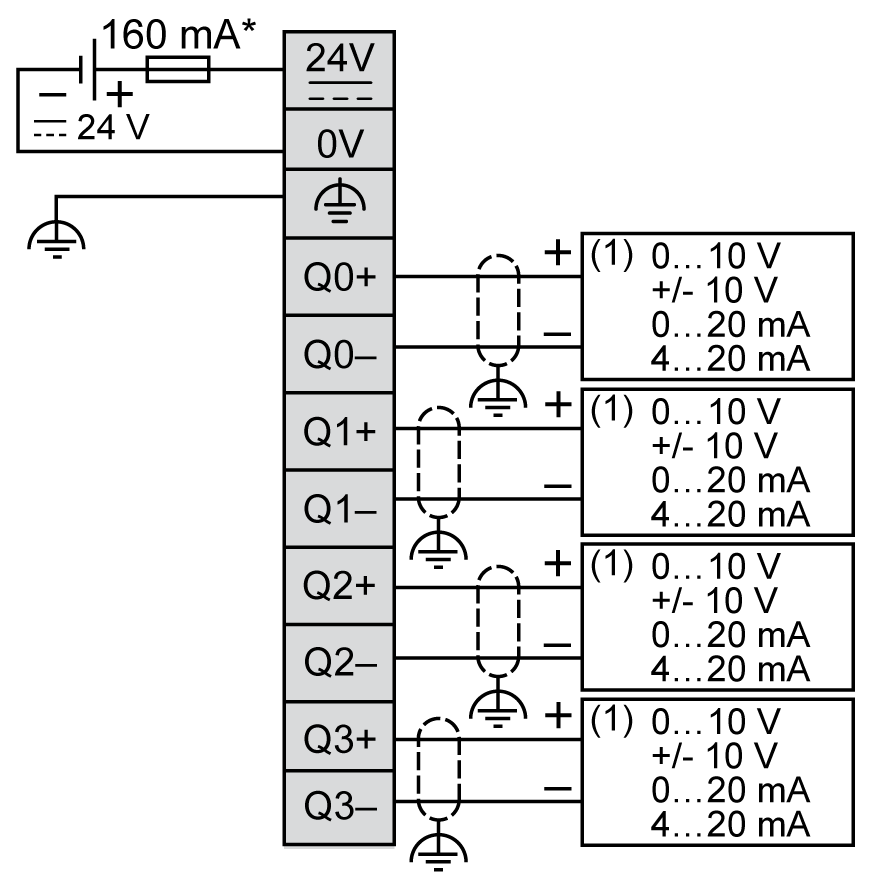

The following figure illustrates the connection between the outputs, the actuators, and their commons:
* Type T fuse
(1) Voltage/current pre-actuator
