TM3DM16R Characteristics

Introduction

This section describes the general characteristics of the TM3DM16R expansion module.

DANGER
	FIRE HAZARD Use only the correct wire sizes for the maximum current capacity of the I/O channels and power supplies. For relay output (2 A) wiring, use conductors of at least 0.5 mm² (AWG 20) with a temperature rating of at least 80 °C (176 °F). For common conductors of relay output wiring (7 A), or relay output wiring greater than 2 A, use conductors of at least 1.0 mm² (AWG 16) with a temperature rating of at least 80 °C (176 °F). Failure to follow these instructions will result in death or serious injury.

WARNING
	UNINTENDED EQUIPMENT OPERATION Do not exceed any of the rated values specified in the environmental and electrical characteristics tables. Failure to follow these instructions can result in death, serious injury, or equipment damage.

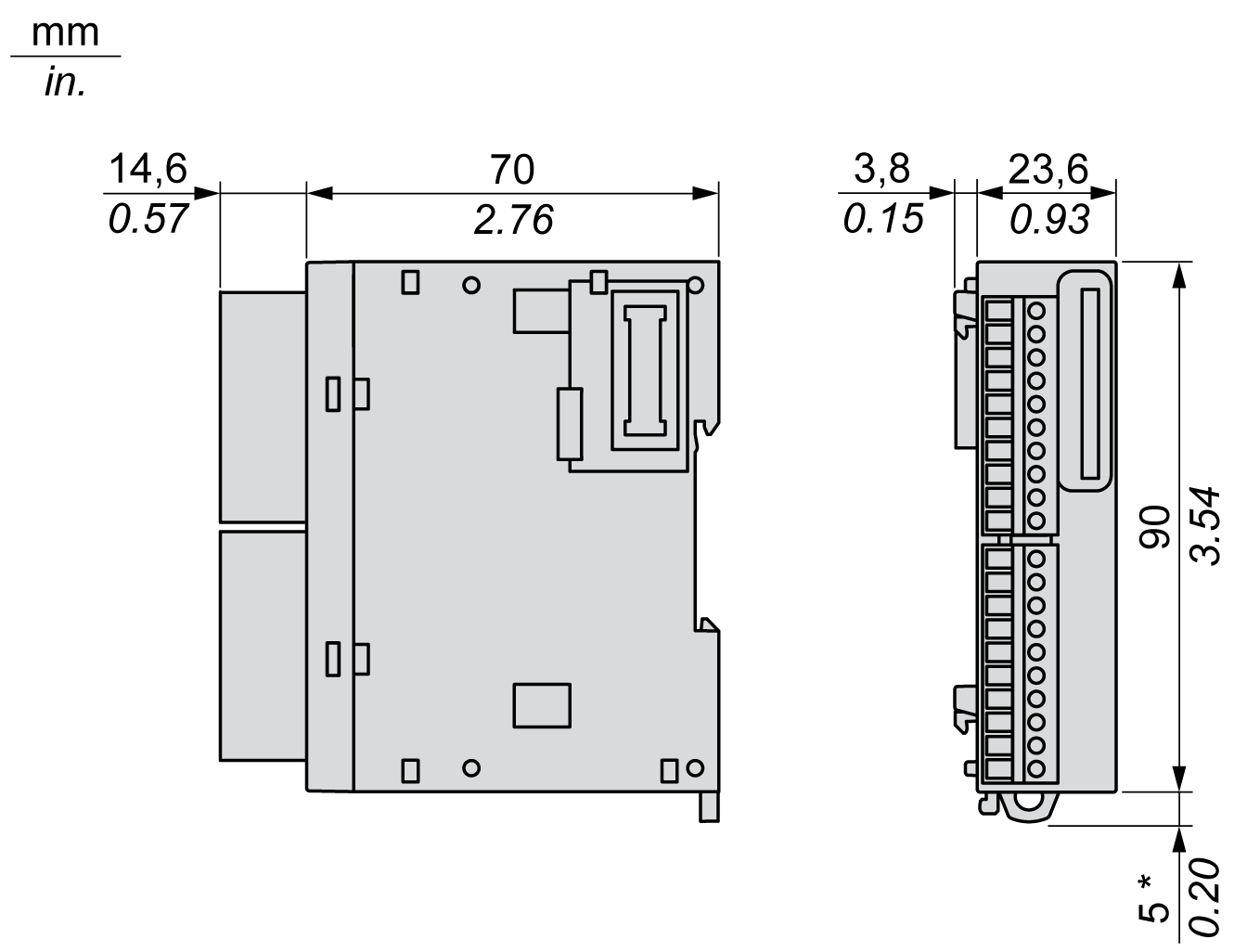

Dimensions

The following diagrams show the external dimensions for the TM3DM16R expansion modules:

NOTE: * 8.5 mm (0.33 in.) when the clamp is pulled out.

Input Characteristics

The table below describes the input characteristics of the TM3DM16R:

Characteristic		Value
Number of input channels		8 inputs
Number of channels groups		1 common line for 8 channels
Input type		Type 1 (IEC/EN 61131-2)
Logic type		Sink/source
Rated input voltage		24 Vdc
Input voltage range		0...28.8 Vdc
Rated input current		5 mA
Input impedance		4.7 kΩ
Input limit values	Voltage at state 1	> 15 Vdc (15..28.8 Vdc)
	Voltage at state 0	< 5 Vdc (0..5 Vdc)
	Current at state 1	> 2.5 mA
	Current at state 0	< 1.5 mA
Turn on time		4 ms
Turn off time		4 ms
De-rating	0...55 °C (32...131 °F)	See Input de-rating
Isolation	Between input and internal logic	500 Vac / 800 Vdc
	Between input group and output group	1500 Vac / 2500 Vdc
	Between input groups	N/A
Connection type		Removable screw terminal block
Connector insertion/removal durability		Over 100 times
Current draw on 5 Vdc internal bus		70 mA
Current draw on 24 Vdc internal bus		40 mA

Output Characteristics

The table below describes the outputs characteristics of the TM3DM16R:

Characteristic		Value
Number of output channels		8 outputs
Number of channel groups		2 common lines for 8 channels
Output type		Relay
Contact type		NO (Normally Open)
Rated output voltage		24 Vdc, 220 Vac
Maximum voltage		30 Vdc, 250 Vac
Rated output current		2 A per output
Maximum output current		2 A per output 4 A per common
Maximum output frequency	With max. load	0.1 Hz
Maximum output frequency	Without load	5 Hz
Turn on time		Max. 10 ms
Turn off time		Max. 10 ms
De-rating	0...55 °C (32...131 °F)	See Output de-rating
Mechanical life		20 million operations
Electrical life under resistive load 2 A		100,000 switching cycles at 45 °C (113 °F)
Protection against short circuit		No
Isolation	Between output and internal logic	1500 Vac / 2500 Vdc
	Between input group and output group	1500 Vac / 2500 Vdc
	Between output groups	1500 Vac / 2500 Vdc
Connection type		Removable screw terminal block
Connector insertion/removal durability		Over 100 times
Current draw on 5 Vdc internal bus		70 mA
Current draw on 24 Vdc internal bus		40 mA
NOTE: Refer to Protecting Outputs from Inductive Load Damage for additional information on this topic.

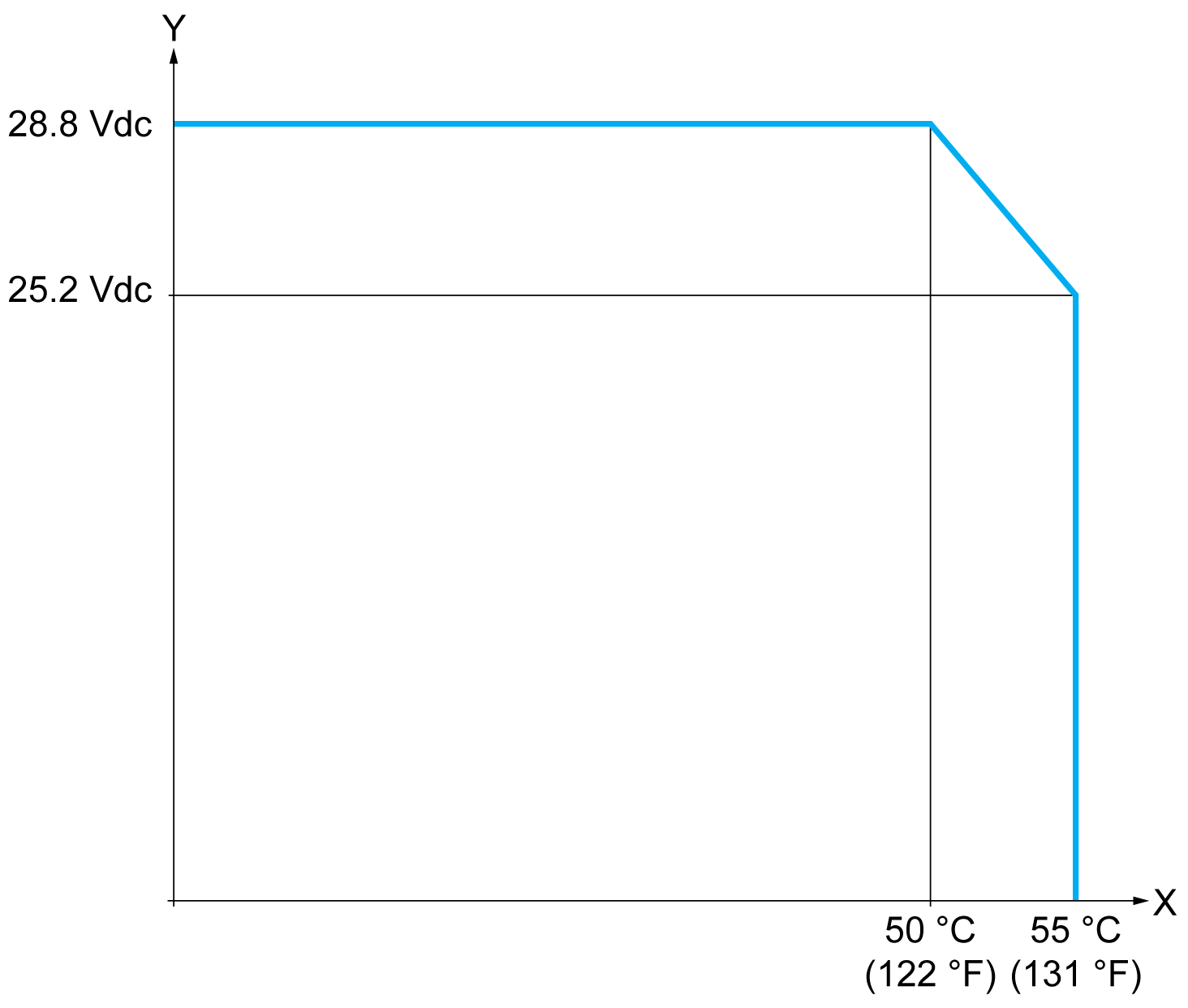

Input De-rating

When using TM3DM16R:

X Ambient temperature (°C / °F)

Y Input voltage (V)

At an ambient temperature of 55 °C (131 °F) in the horizontal mounting direction, limit the inputs and outputs, respectively, which turn on simultaneously as indicated by the X axis.

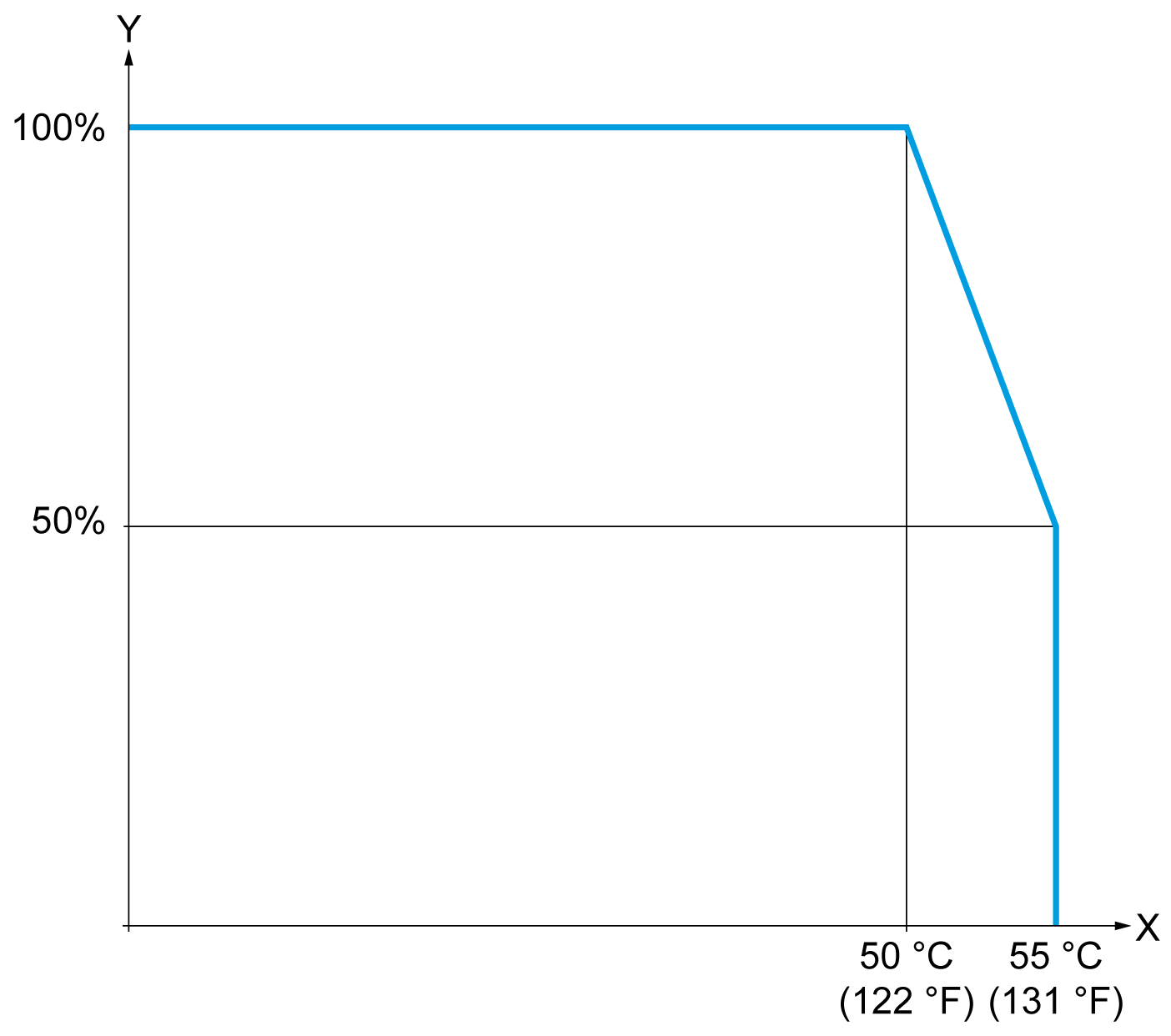

Output De-rating

When using TM3DM16R:

X Ambient temperature (°C / °F)

Y Output load current (%)

Power Limitation

This table describes the power limitation of the TM3DM16R expansion module depending on the voltage, the type of load, and the number of operations required.

These expansion modules do not support capacitive loads.

WARNING
	RELAY OUTPUTS WELDED CLOSED Always protect relay outputs from inductive alternating current load damage using an appropriate external protective circuit or device. Do not connect relay outputs to capacitive loads. Failure to follow these instructions can result in death, serious injury, or equipment damage.

Power Limitations
Voltage	24 Vdc	120 Vac	240 Vac	Number of operations
Power of resistive loads AC-12	–	240 VA 80 VA	480 VA 160 VA	100,000 300,000
Power of inductive loads AC-15 (cos ϕ = 0.35)	–	60 VA 18 VA	120 VA 36 VA	100,000 300,000
Power of inductive loads AC-14 (cos ϕ = 0.7)	–	120 VA 36 VA	240 VA 72 VA	100,000 300,000
Power of resistive loads DC-12	48 W 16 W	–	–	100,000 300,000
Power of inductive loads DC-13 L/R = 7 ms	24 W 7.2 W	–	–	100,000 300,000

Power Limitations

Voltage

24 Vdc

120 Vac

240 Vac

Number of operations

Power of resistive loads

AC-12

–

240 VA

80 VA

480 VA

160 VA

100,000

300,000

Power of inductive loads

AC-15 (cos ϕ = 0.35)

–

60 VA

18 VA

120 VA

36 VA

100,000

300,000

Power of inductive loads

AC-14 (cos ϕ = 0.7)

–

120 VA

36 VA

240 VA

72 VA

100,000

300,000

Power of resistive loads

DC-12

48 W

16 W

–

100,000

300,000

Power of inductive loads

DC-13 L/R = 7 ms

24 W

7.2 W

–

100,000

300,000
