TM3DQ32TK Wiring Diagram

Introduction

These expansion modules have two built-in HE10 (MIL 20) connectors for the connection of outputs and power supply.

Wiring Rules

See Wiring Best Practices.

Wiring Diagram with Free-Wire Cables

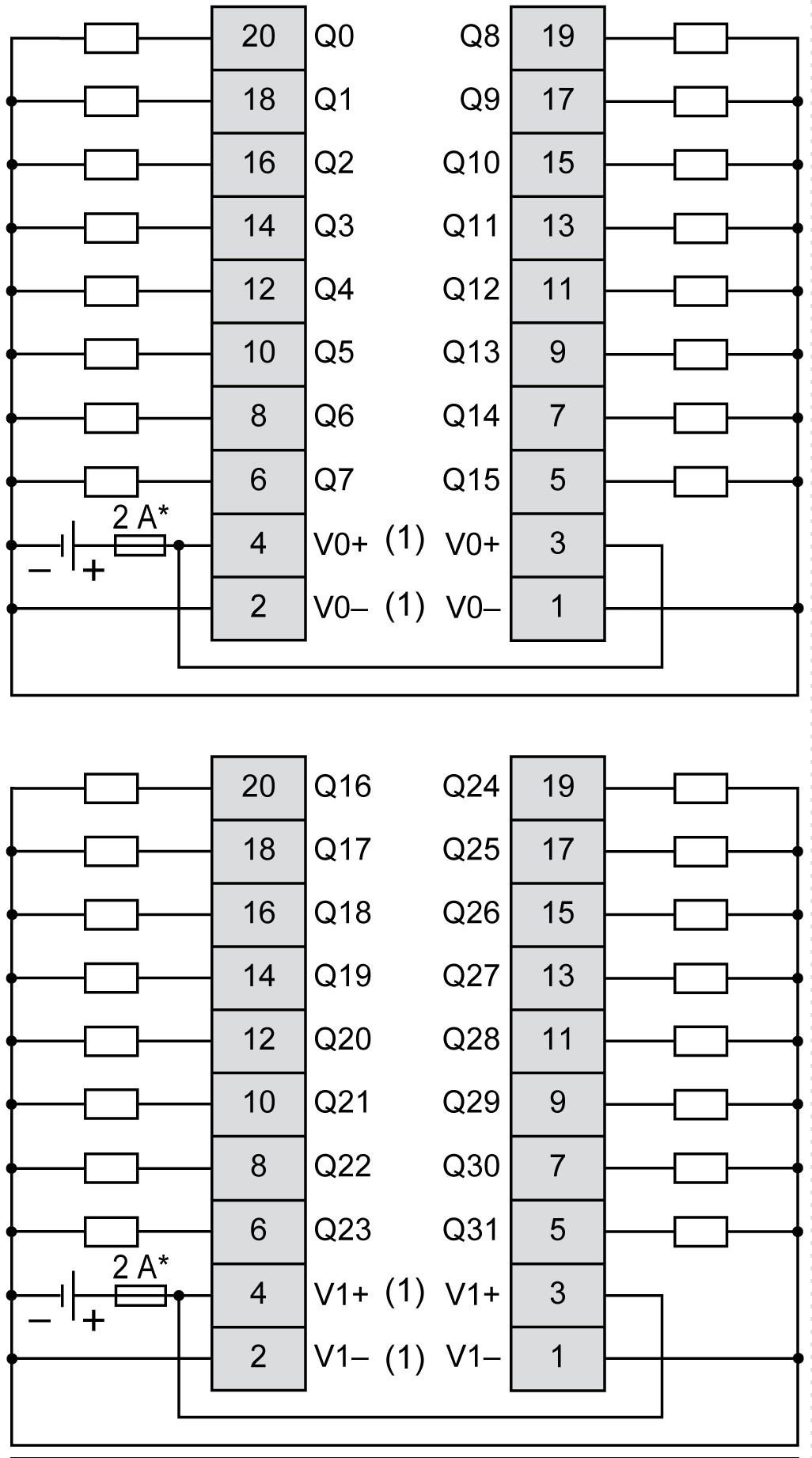

The following figure illustrates the connections between the outputs, the actuators, and their commons:

* Type T fuse

(1) The V0+ terminals are connected internally.

The V0- terminals are connected internally.

The V1+ terminals are connected internally.

The V1- terminals are connected internally.

The V0+ and V1+ terminals are not connected internally.

The V0- and V1- terminals are not connected internally.

For information about 24 Vdc power supply, refer to DC Power Supply Characteristics.

For more information on the cable color for TWDFCW30K/TWDFCW50K, refer to TWDFCW••K Cable Description.
