Accessories

Overview

This section describes the accessories, cables, and Telefast.

Reference	Description	Use	Quantity
TMAT2MSET	Set of 8 removable screw terminal blocks: 4 x Removable screw terminal blocks (pitch 3.81 mm) with 11 terminals for inputs/outputs 4 x Removable screw terminal blocks (pitch 3.81 mm) with 10 terminals for inputs/outputs	Connects the module I/Os.	1
TMAT2MSETG	Set of 8 removable spring terminal blocks: 4 x Removable spring terminal blocks (pitch 3.81 mm) with 11 terminals for inputs/outputs 4 x Removable spring terminal blocks (pitch 3.81 mm) with 10 terminals for inputs/outputs	Connects the module I/Os.	1
NSYTRAAB35	End brackets	Helps secure the controller or receiver module and their expansion modules on a top hat section rail (DIN rail).	1
TM2XMTGB	Grounding Bar	Connects the cable shield and the module to the functional ground.	1
TM200RSRCEMC	Shielding take-up clip	Mounts and connects the ground to the cable shielding.	25 pack
TMAM2	Mounting Kit	Mounts the controller and I/O modules directly to a flat, vertical panel.	1

Reference	Description	Details	Length
TWDFCW30K	Digital I/O cables with free wires for 20-pin Modular controller	Cable equipped at a one end with an HE10 connector. (AWG 22 / 0.34 mm²).	3 m (9.84 ft)
TWDFCW50K	5 m (16.4 ft)

Reference

Description

Details

Length

TWDFCW30K

Digital I/O cables with free wires for 20-pin Modular controller

Cable equipped at a one end with an HE10 connector. (AWG 22 / 0.34 mm²).

3 m

(9.84 ft)

TWDFCW50K

5 m

(16.4 ft)

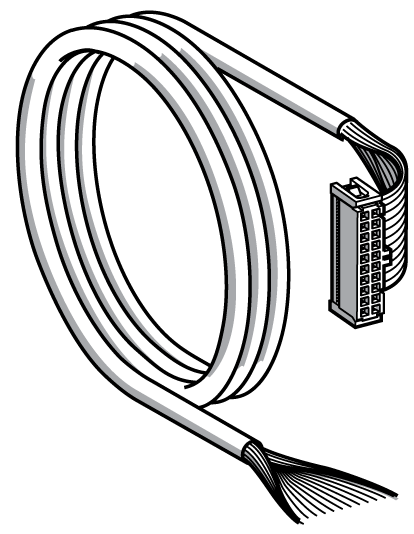

The following table provides specifications for the TWDFCW30K/50K with free wires for 20-pin connectors (HE10 or MIL20):

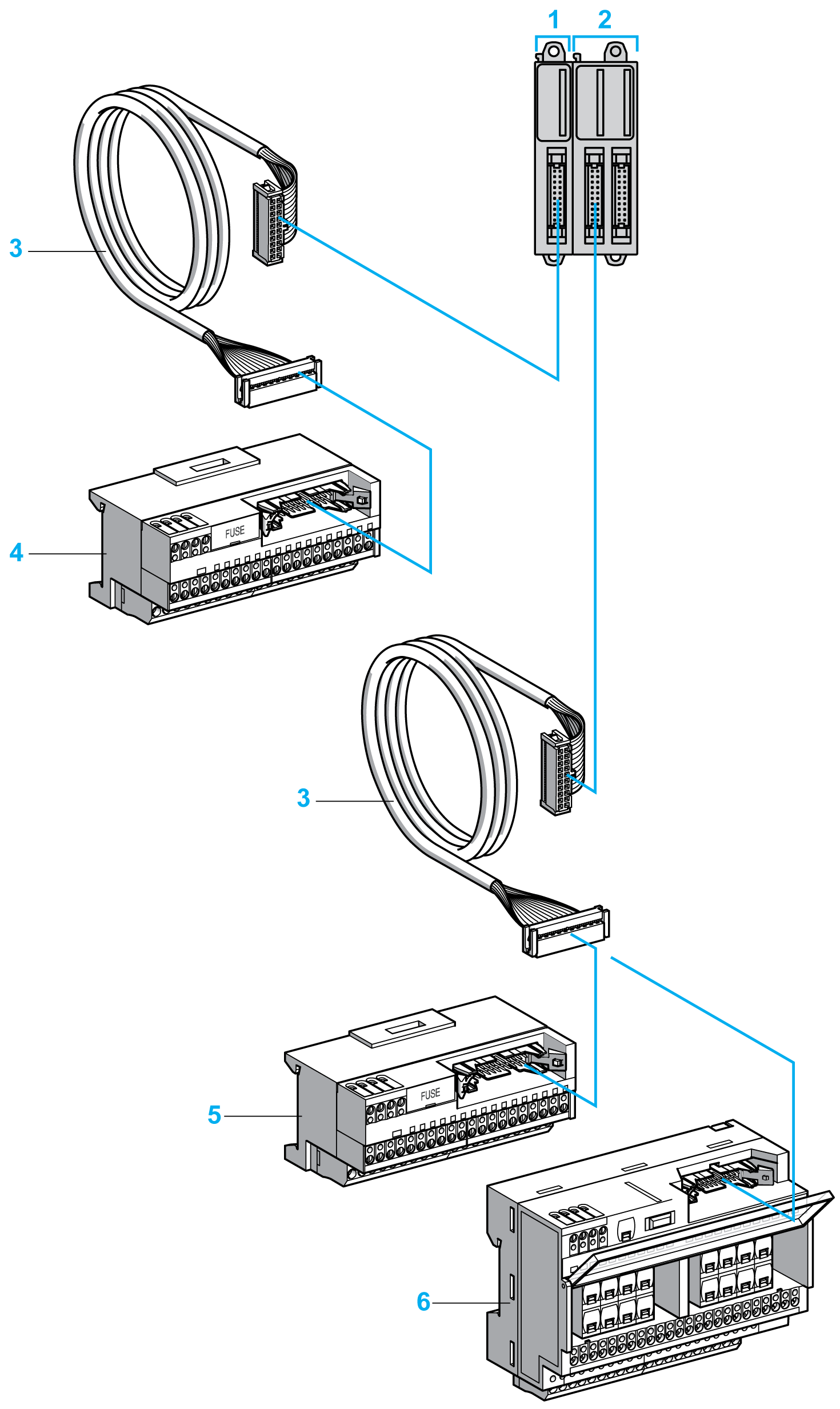

The following illustration shows the Telefast system:

1 TM3DI16K / TM3DI32K

2 TM3DQ16TK / TM3DQ32TK

3 Cable equipped with a 20-way HE 10 connector at each end.)

4 16 channel sub-base for input extension modules.

5–6 16 channel sub-base for output extension modules.
