TM3DM16R Presentation
Overview

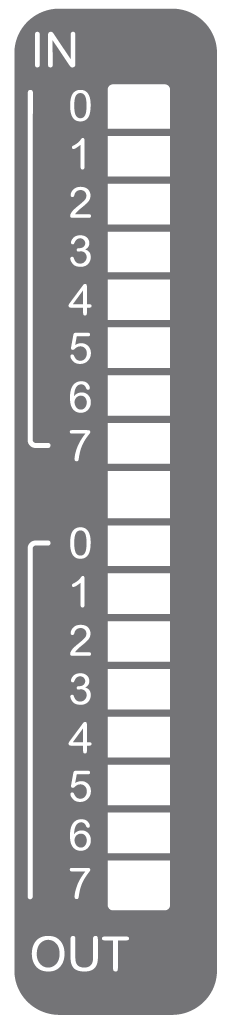

TM3DM16R digital expansion module:
-
8 channel 24 Vdc sink/source inputs
-
1 common line for inputs
-
8 channel 2 A relay outputs
-
2 common lines for outputs
-
Removable screw terminal block
Main Characteristics
|
Characteristic |
Value |
||
|---|---|---|---|
|
Input |
|||
|
Number of input channels |
8 inputs |
||
|
Input type |
Type 1 (IEC/EN 61131-2) |
||
|
Input Logic type |
Sink/source |
||
|
Rated input voltage |
24 Vdc |
||
|
Output |
|||
|
Number of output channels |
8 outputs |
||
|
Output type |
Relay |
||
|
Contact type |
NO (Normally Open) |
||
|
Rated output voltage |
24 Vdc / 240 Vac |
||
|
Rated output current |
2 A |
||
|
Connection and cable types |
|||
|
Connection type |
Removable screw terminal block |
||
|
Cable type and length |
Type |
Unshielded |
|
|
Length |
Input: max. 50 m (164 ft) Output: max. 150 m (492 ft) |
||
|
Weight |
118 g (4.16 oz) |
||
