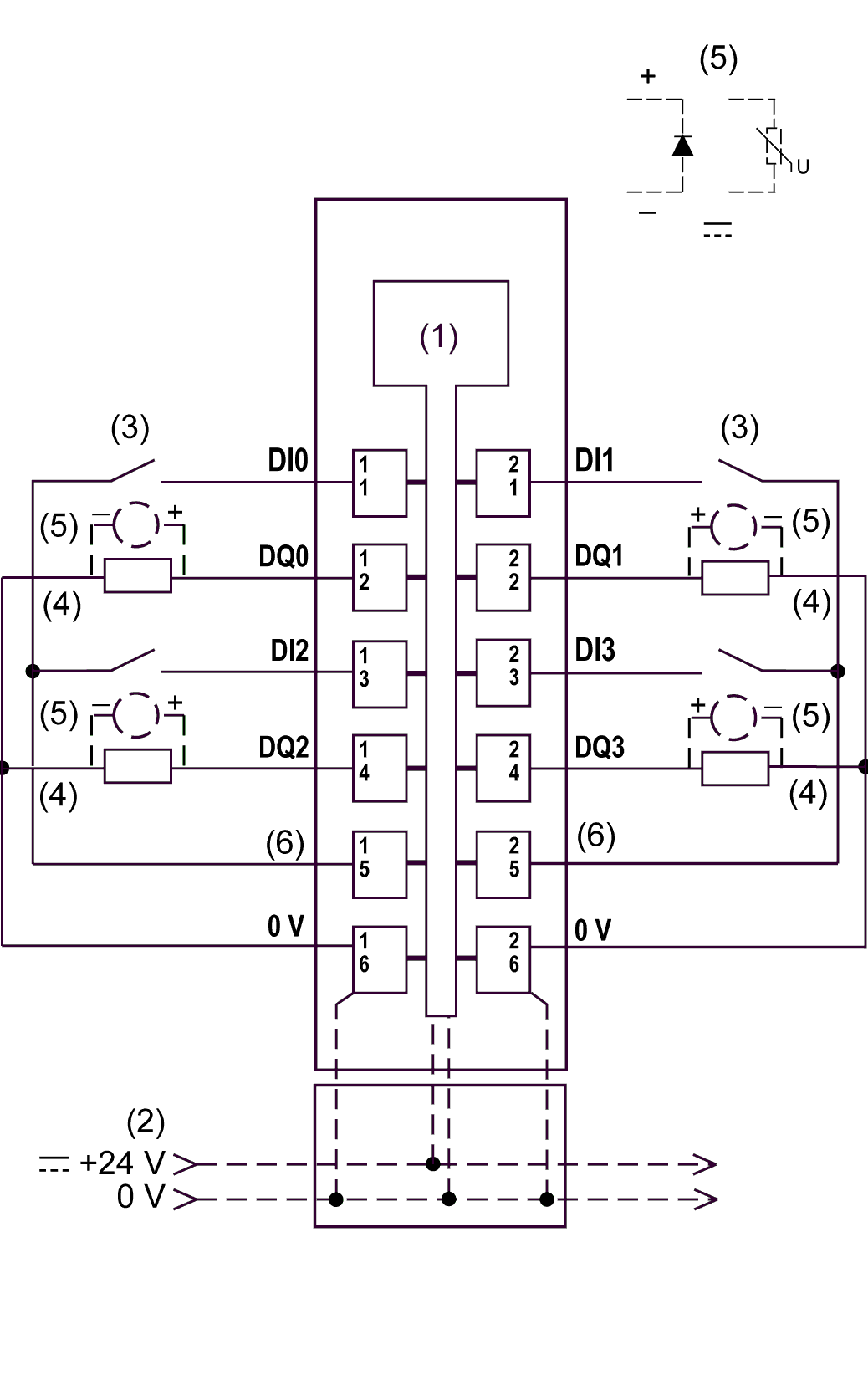

The following illustration presents the wiring diagram for the TM5SDM8DTS:
1 Internal electronics
2 24 Vdc I/O power segment integrated into the bus bases
3 2-wire sensor
4 2-wire load
5 Inductive load protection
6 24 Vdc for sensor supply
NOTE: I/O electronic modules and the field devices connected to them must all reside on the same 24 Vdc I/O power segment. If not, the status LEDs may not function correctly. In addition, there may potentially be more significant consequences such as an explosion and/or fire hazard.
|
|
|
POTENTIAL EXPLOSION OR FIRE |
|
Connect the returns from the devices to the same power source as the 24 Vdc I/O power segment serving the module. |
|
Failure to follow these instructions can result in death, serious injury, or equipment damage. |
|
|
|
UNINTENDED EQUIPMENT OPERATION |
|
Do not connect wires to unused terminals and/or terminals indicated as “No Connection (N.C.)”. |
|
Failure to follow these instructions can result in death, serious injury, or equipment damage. |
|
|
|
UNINTENDED EQUIPMENT OPERATION |
|
Use the sensor and actuator power supply only for supplying power to sensors or actuators connected to the module. |
|
Failure to follow these instructions can result in death, serious injury, or equipment damage. |
