Replacing the Shaft Extension (Optional Equipment)
You need the following tools to remove the shaft extension:
oSet of hex keys
oSoft-faced hammer
NOTE: Do not use ball head hex keys. Excessive torque may cause the ball head to tear off. A torn off ball head is difficult to remove from the screw.
For suitable parts, refer to Replacement Equipment and Accessories.
|
Step |
Action |
|---|---|
|
1 |

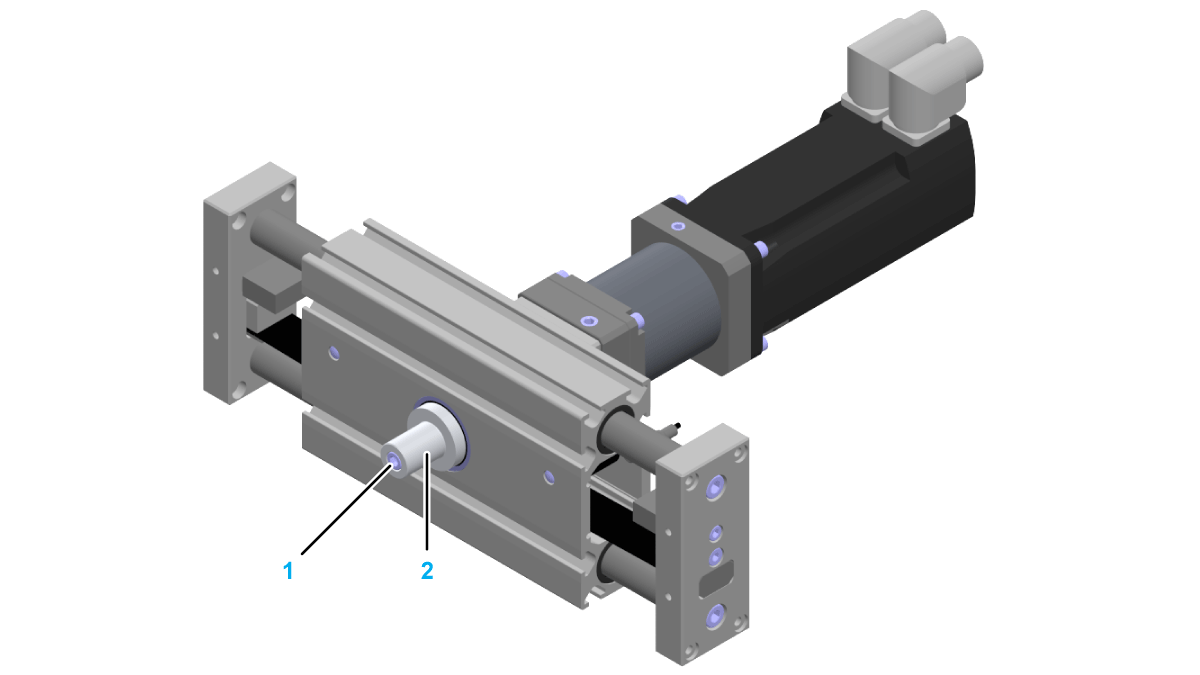

Loosen the screw (1) at the shaft extension (2).
NOTE: |
|
2 |
Carefully tap on the screw head with a soft-faced hammer to loosen the cone of the expanding hub. NOTE: If you cannot reach the screw head, use a hex key as extension and tap carefully on the hex key. |
|
3 |
For CAR40: Pull the shaft extension carefully out of the hollow shaft of the gear rack pulley. For CAR41 / CAR42 / CAR43 / CAR44: Pull the shaft extension carefully out of the hollow shaft of the toothed belt pulley (3). NOTE: This may require a considerable force.
|
|
4 |
