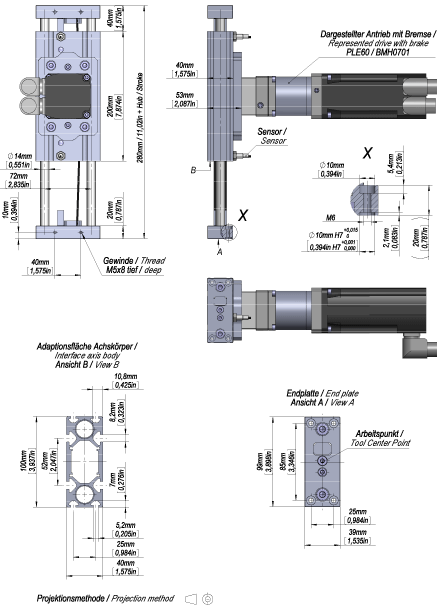

General data

Type of mechanical drive element

–

Toothed belt 20AT5

Width: 20 mm (0.79 in)

Profile: AT

Pitch: 5 mm (0.197 in)

Type of guide

–

Linear ball bearing guide

Minimum stroke⁽¹⁾

mm

(in)

10

(0.39)

Maximum stroke⁽²⁾

mm

(in)

300

(11.8)

Maximum velocity⁽³⁾

m/s

(ft/s)

3

(9.8)

Maximum acceleration⁽³⁾

m/s²

(ft/s²)

20

(66)

Feed constant

mm/rev

(in/rev)

100

(3.9)

Effective diameter toothed belt

mm

(in)

31.83

(1.25)

Repeatability⁽³⁾

mm

(in)

+/- 0.05

(+/- 0.00197)

Forces and torques

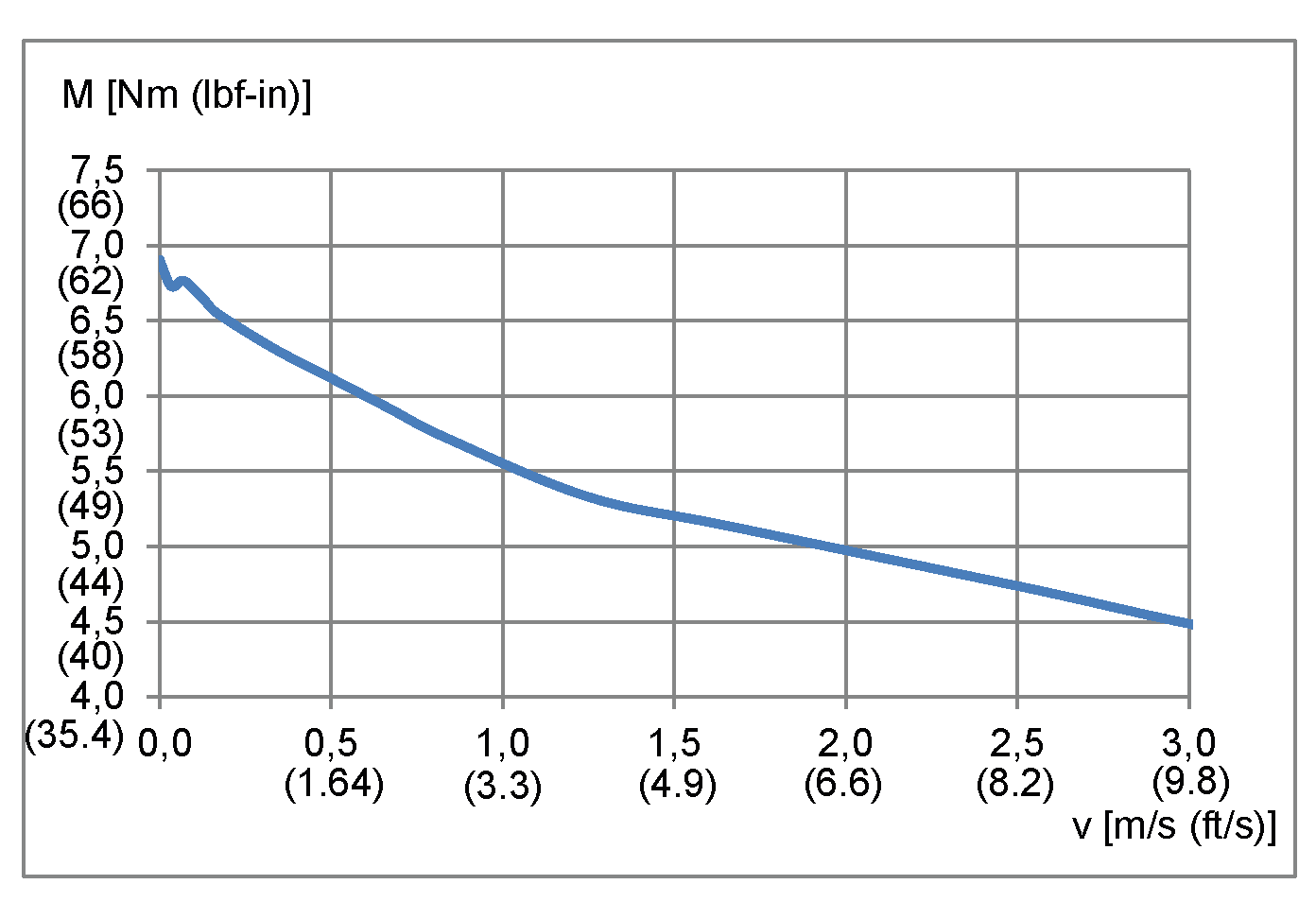

Maximum drive torque M_max⁽⁴⁾

Nm

(lbf-in)

7

(62)

Breakaway torque for axis with 0 stroke

Nm

(lbf-in)

0.3

(2.66)

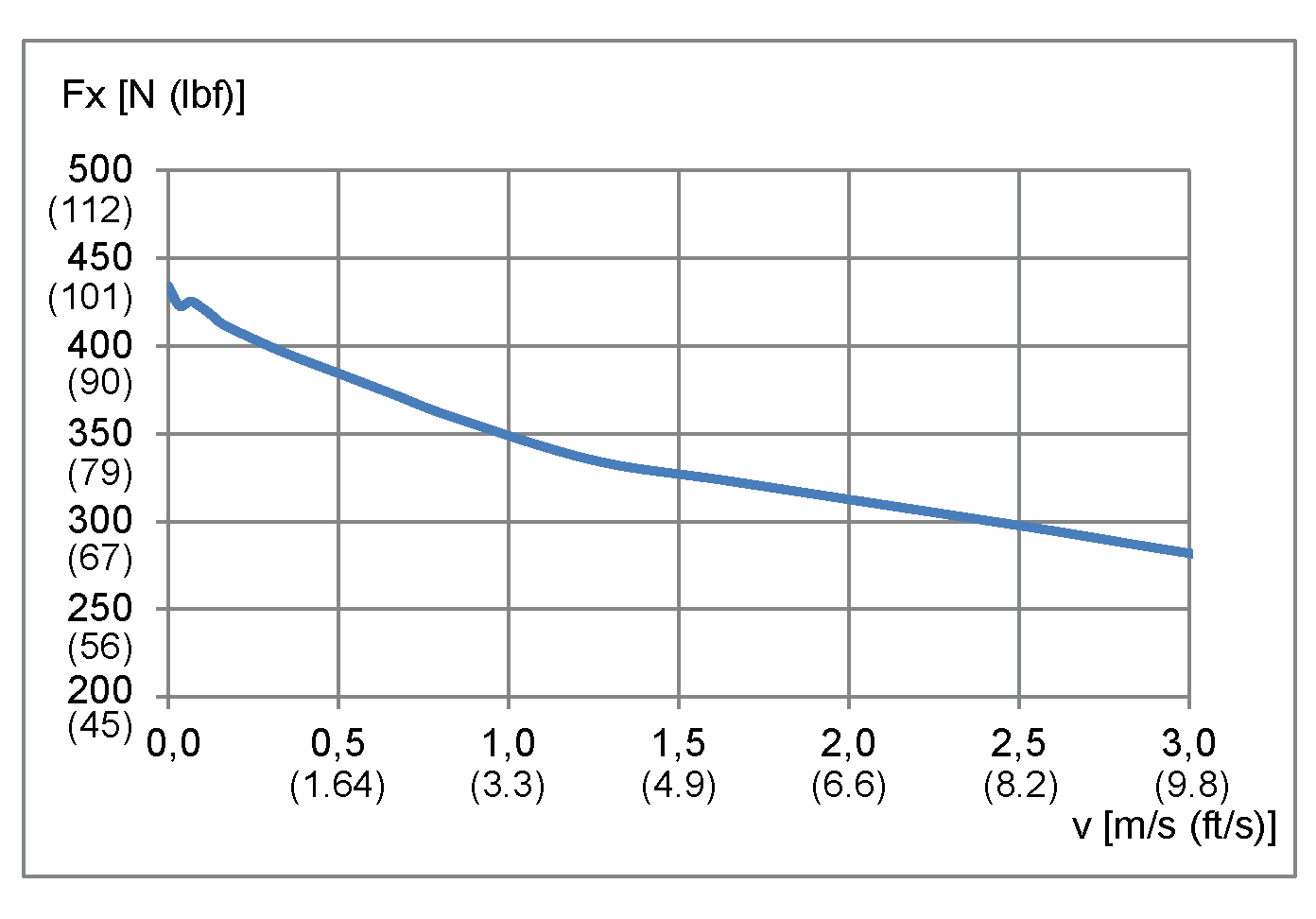

Maximum feed force Fx_max⁽⁴⁾

N

(lbf)

435

(98)

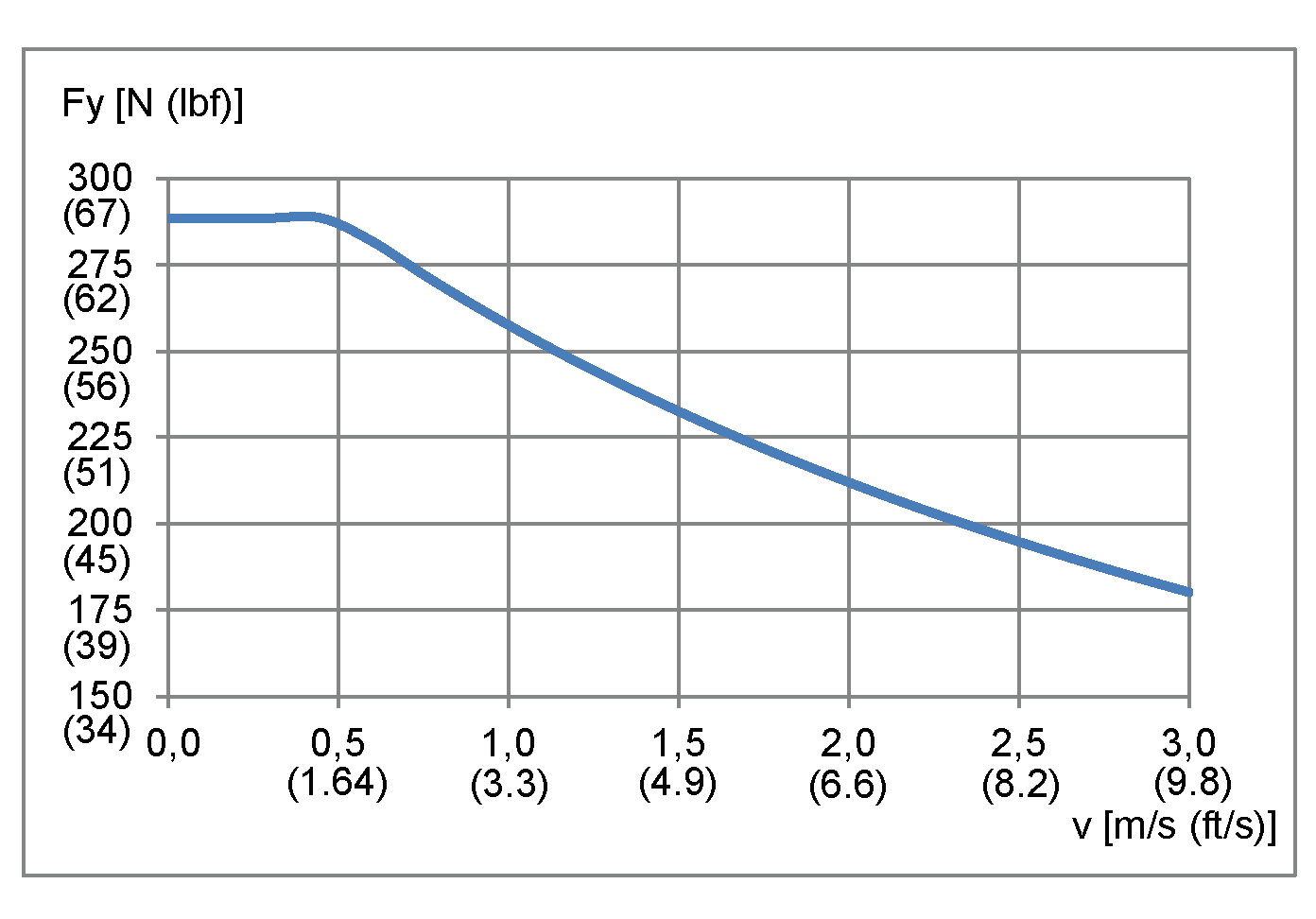

Maximum force Fy⁽⁴⁾

N

(lbf)

290

(65)

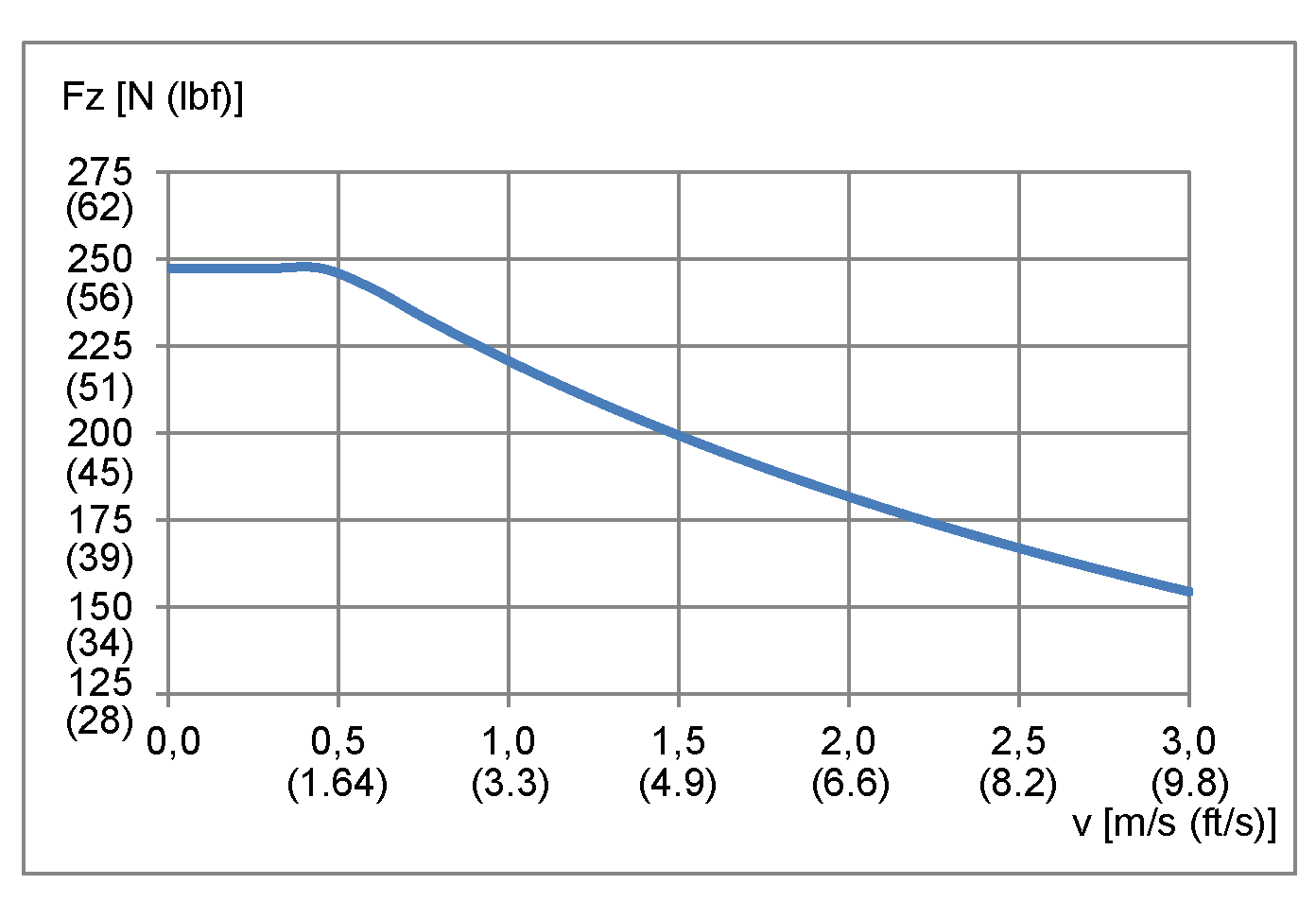

Maximum force Fz⁽⁴⁾

N

(lbf)

250

(56)

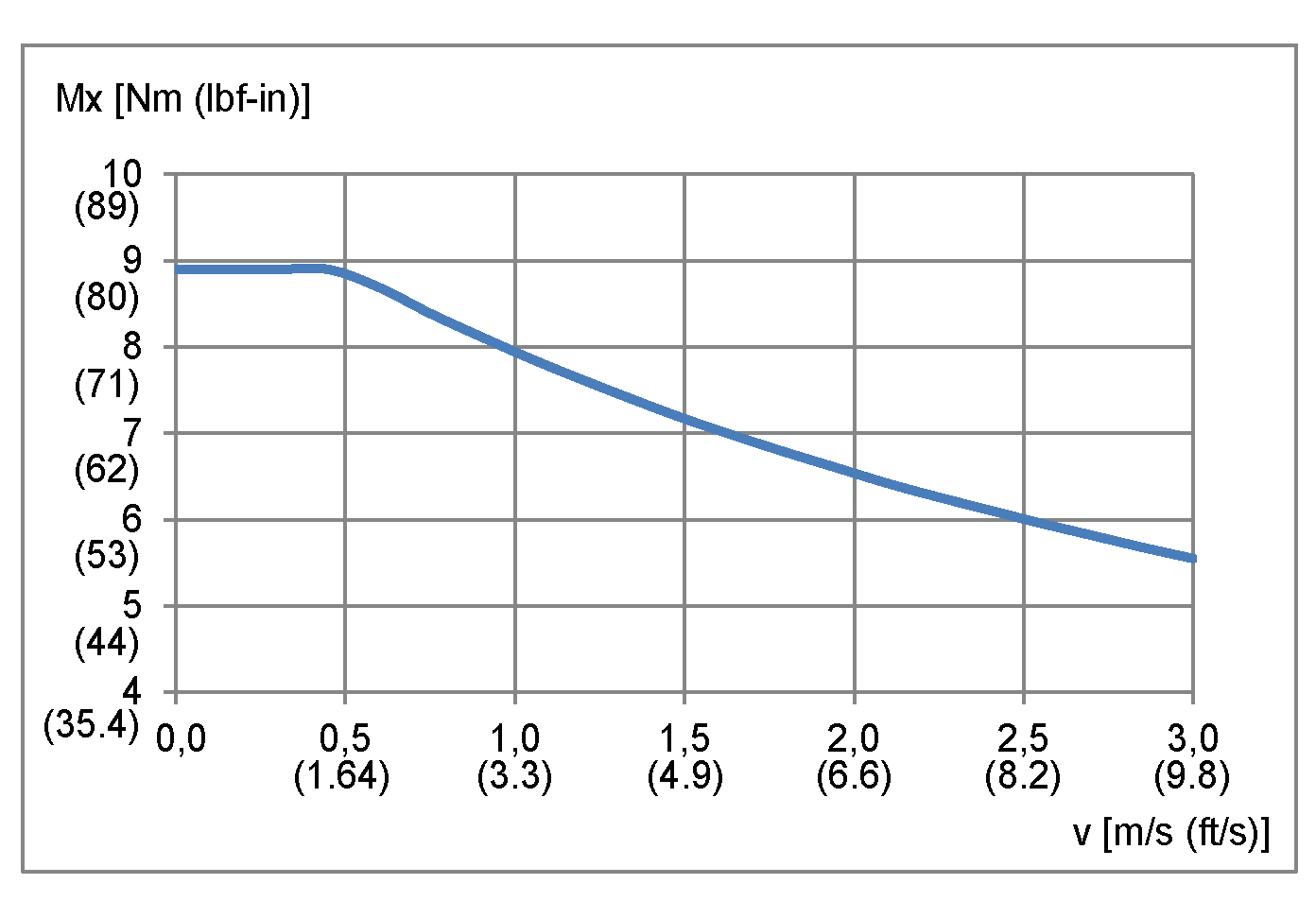

Maximum torque end plate Mx⁽⁴⁾

Nm

(lbf-in)

9

(80)

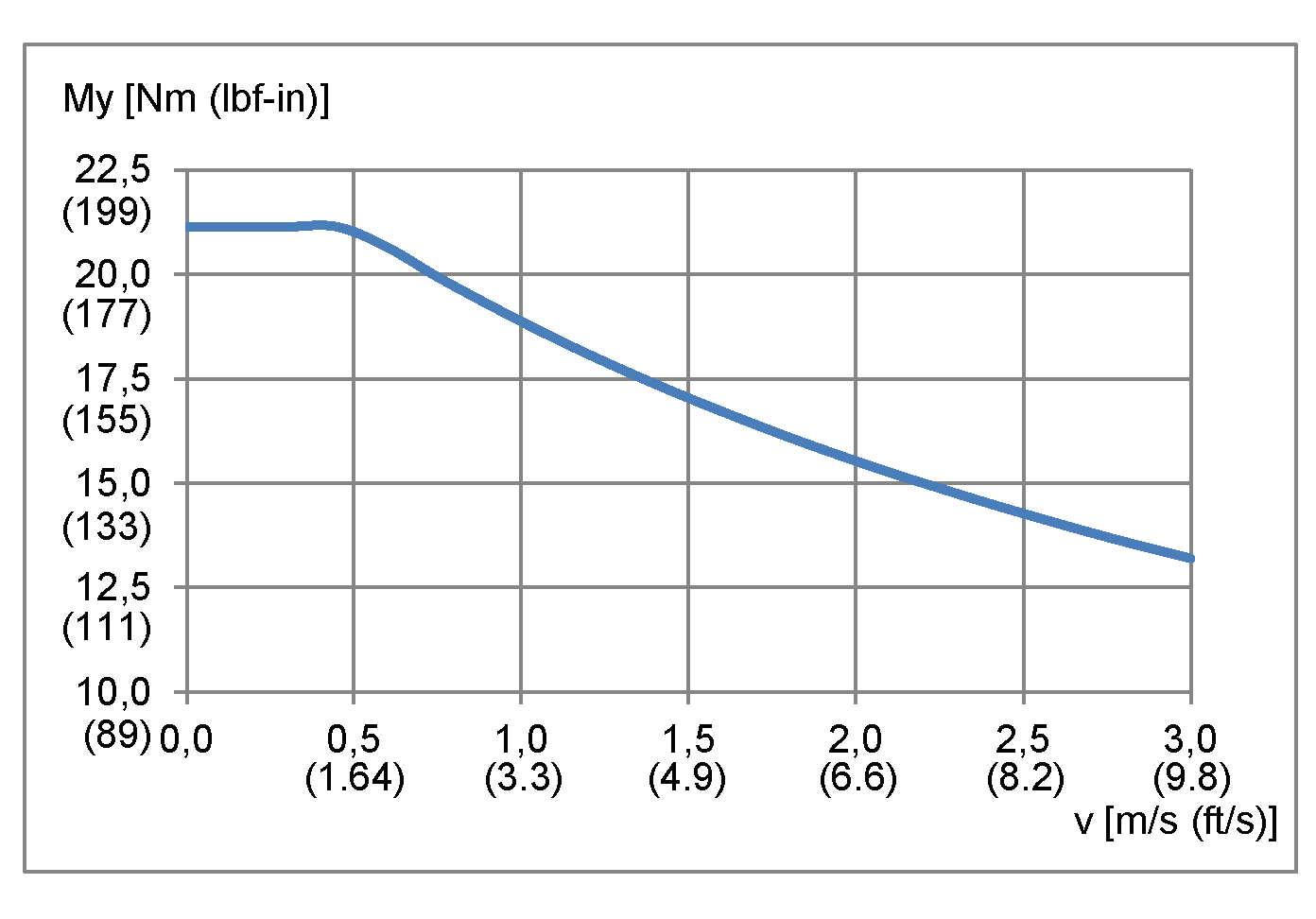

Maximum torque end plate My⁽⁴⁾

Nm

(lbf-in)

21

(186)

Maximum torque end plate Mz⁽⁴⁾

Nm

(lbf-in)

25

(221)

Weights

Mass for axis with 0 stroke

kg

(lb)

2.8

(6.2)

Mass per 1 m (39 in) of stroke

kg/m

(lb/in)

2.5

(0.14)

Moving mass of the cantilever

kg

(lb)

1.7

(3.75)

Moments of inertia

Moment of inertia for axis with 0 stroke

kg·cm²

(lb·in²)

4.8

(1.64)

Moment of inertia per 1 m (39 in) stroke

kg·cm²/m

(lb·in²/in)

6.3

(0.054)

Moment of inertia per 1 kg (2.2 lb) payload

kg·cm²/kg

(lb·in²/lb)

2.55

(0.38)

(1) Required for lubrication of the linear ball bearing guide.

(2) For information about greater strokes, contact your local Schneider Electric representative.

(3) Depending on load and stroke.

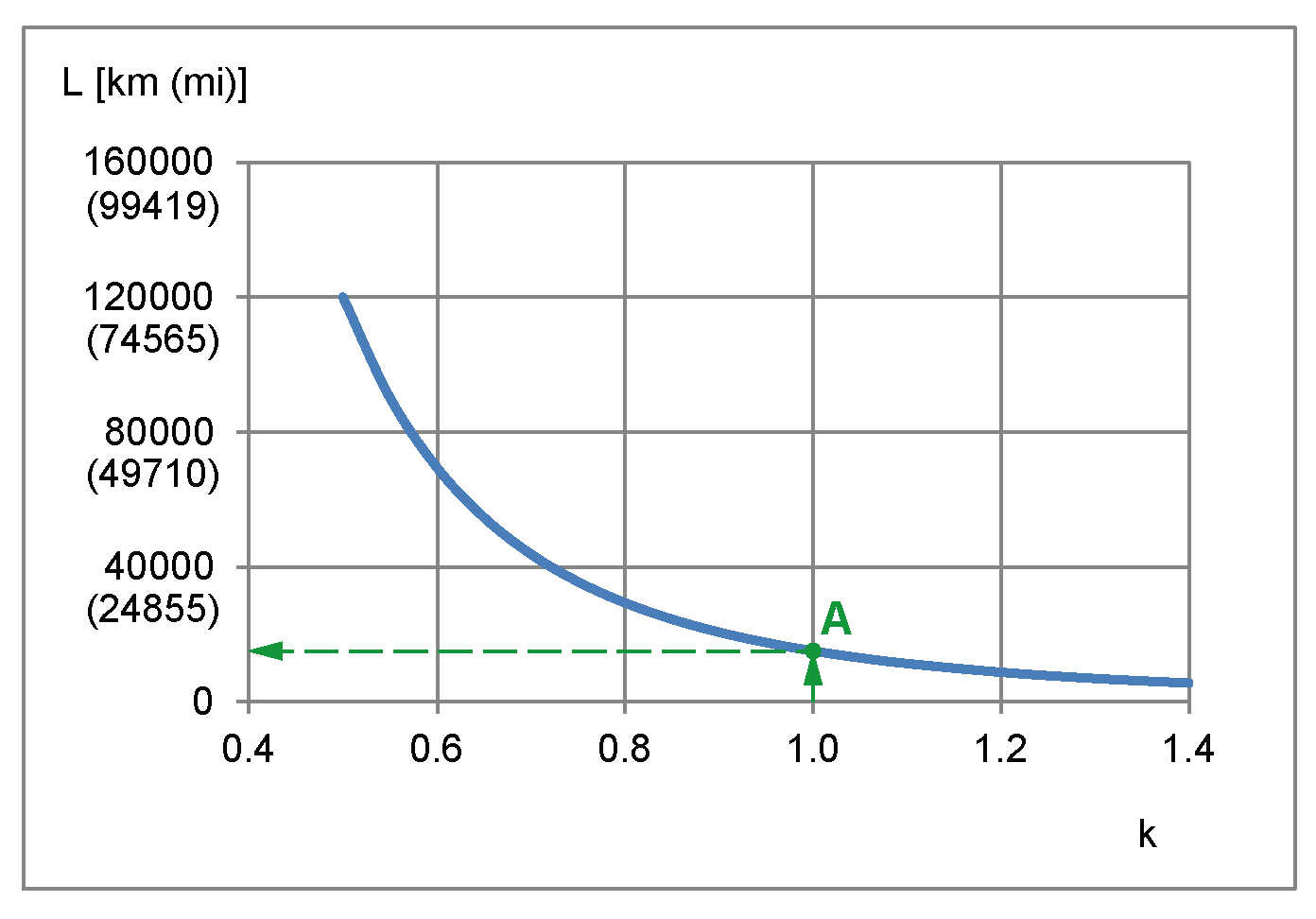

(4) Maximum permissible forces and torques decrease at increasing velocities. Refer to the characteristic curves following this table.
