FB_CreateCSR

Overview

Type:	Function block
Available as of:	V1.0.0.0

Functional Description

The function block FB_CreateCSR is used to create a CSR (Certificate Signing Request). If the CSR is created successfully, it is provided at the output q_sCSR of the function block. Optionally, it can be stored on the file system of the controller.

For each CSR an associated private key is created. This key file is stored on the controller and is protected against external access.

The CSR is used to obtain a signed certificate from a CA (Certificate Authority). You can install the signed certificate on the controller. It can then be used for secured communication using function blocks that support the specification of a certificate.

Examples of function blocks supporting the specification of a certificate to be used for secured communication:

Function blocks	Library
FB_TcpServer2, FB_TcpClient2	TcpUdpCommunication
FB_MqttClient	MqttHandling
FB_HttpClient	HttpHandling
FB_SendEMail, FB_Pop3EMailClient	EMailHandling
FB_SqlDbRequest	SqlRemoteAccess

For the installation of the obtained signed certificate you have two options:

Install the signed certificate using the FB_InstallCertificateFromString function block provided by this library.
Download the signed certificate using the Security Screen editor of EcoStruxure Machine Expert. For further information, refer to Downloading Certificate(s) to the Controller.

For both options the signed certificate must be installed with trust level Own.

NOTE: The function block uses an asynchronous task to create the certificate. Therefore, the function block automatically initializes the asynchronous manager if not yet done previously in the application.

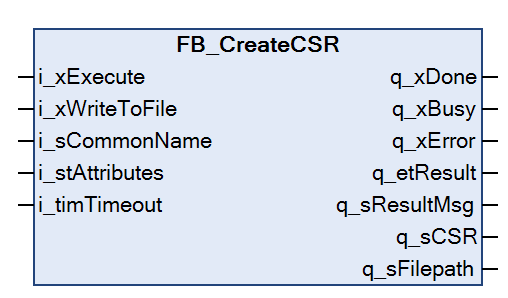

Interface

Input	Data type	Description
i_xExecute	BOOL	A rising edge of the input i_xExecute starts the execution of the function block. Refer to Behavior of Function Blocks with the Input i_xExecute.
i_xWriteToFile	BOOL	If this output is set to TRUE, the CSR is created as a file on the file system of the controller. The resulting file path is provided at the output q_sFilePath.
i_sCommonName	STRING[64]	The string containing the common name of the certificate.
i_stAttributes	ST_CertificateAttributes	The structure containing optional attributes of the certificate.
i_timTimeout	TIME (TIME#10s0ms)	Timeout for the operation. If the specified time expires during execution, the process is aborted. The minimum value for the timeout is 10 s.

Output	Data type	Description
q_xDone	BOOL	If this output is set to TRUE, the execution has been completed successfully.
q_xBusy	BOOL	If this output is set to TRUE, the function block execution is in progress.
q_xError	BOOL	If this output is set to TRUE, an error has been detected. For details, refer to q_etResult and q_etResultMsg.
q_etResult	ET_Result	Provides diagnostic and status information as a numeric value.
q_sResultMsg	STRING [80]	Provides additional diagnostic and status information as a text message.
q_sCSR	STRING [2048]	Provides the CSR as a STRING.
q_sFilepath	STRING [255]	Provides the file path of the CSR stored as a file, if it was selected.
