Saving Data

Overview

Click the Save... button in the Home window to save diagnostics data to a file. The Machine info dialog box opens.

Enter the hardware code of your controller (see nameplate HW: xxx) and further information. Click OK to open a Save As dialog box

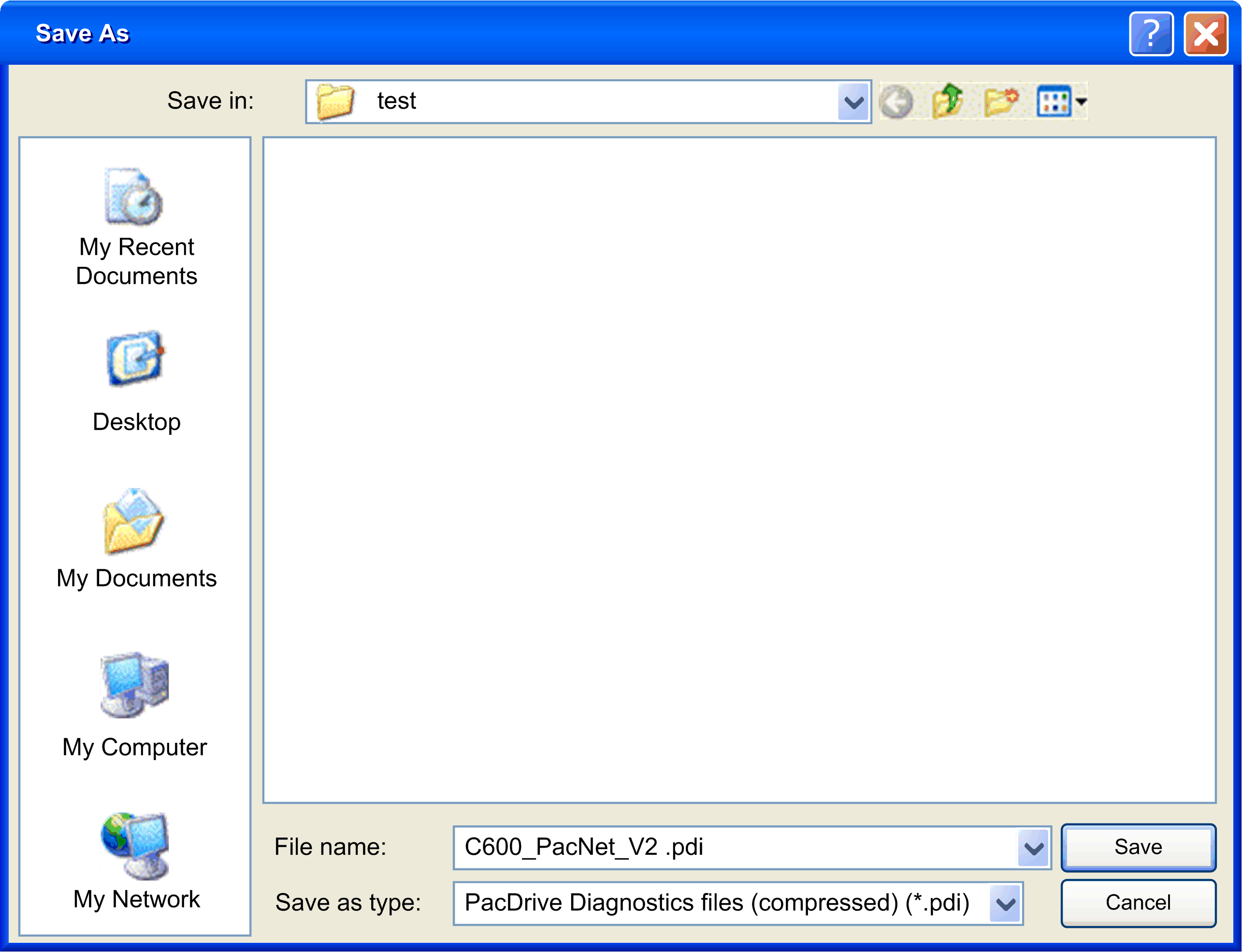

Save As dialog box:

Enter the desired path and file name and click Save to confirm.

You can save the files as type .pdi (compressed file format) or .xml (no compression).
