Perform Muting with the Optional Modules DIS1
Overview
Implementation of Emergency stops combining hardwired control of supply power with the Inverter Enable function:
|
Lexium 62 ILM |
Maintenance |
Emergency stop |
Parameter InverterEnableConfig |
|---|---|---|---|
|
Lexium 62 ILM without DIS1 |
Torque-free motor |
Torque-free motor |
Standard/1 |
|
Lexium 62 ILM with DIS1 |
– |
Torque-free motor |
Off/0 |
How to Install the Optional Modules DIS1
You cannot use the option modules DIS1 and Lexium 62 ILM Safety Module together.
|
Step |
Action |
|---|---|
|
1 |
Remove power to the Lexium 62 Power Supply during the installation of the optional module DIS1. |
|
2 |
Remove the transparent cover plate on the motor. |
|
3 |

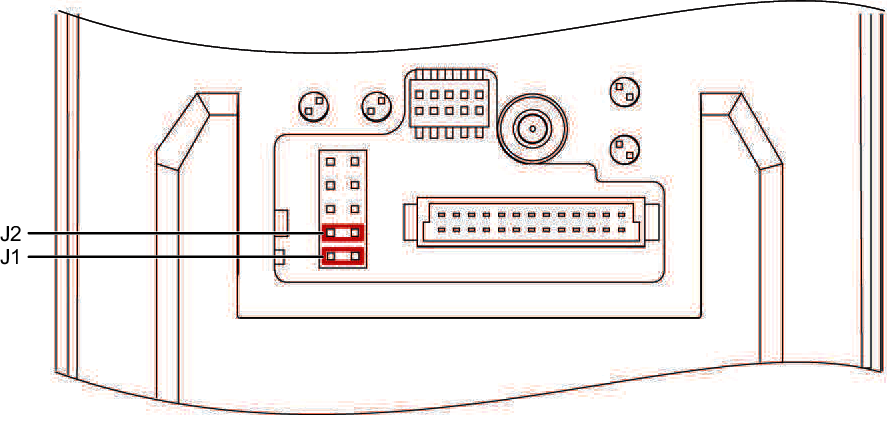

Remove the jumpers J1 and J2:
|
|
4 |

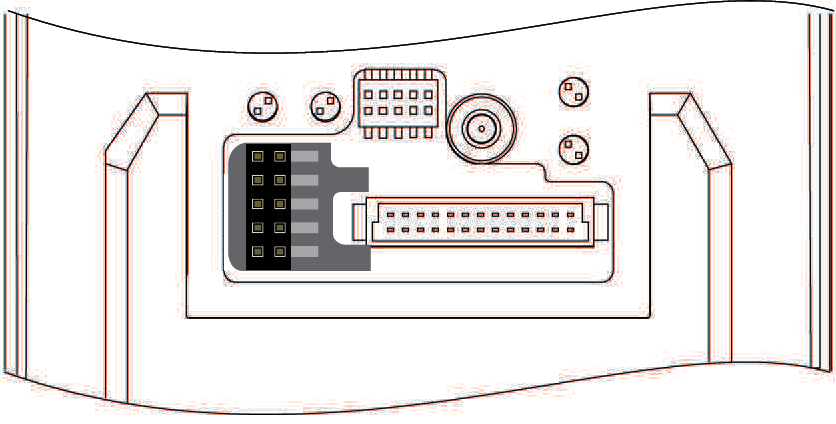

Connect the optional module DIS1 by inserting it into the contact pin, as shown in the following graphic:
|
|
5 |
Replace the transparent cover plate on the motor and secure it. |
How to Disassemble the Optional Module DIS1
|
Step |
Action |
|---|---|
|
1 |
Remove power to the Lexium 62 Power Supply during the installation of the optional module DIS1. |
|
2 |
Remove the transparent cover plate on the motor. |
|
3 |
Remove the optional module DIS1. |
|
4 |
Reconnect the jumpers J1 and J2.
|
|
5 |
Replace the transparent cover plate on the motor and secure it. |
