FUNCTION_BLOCK GEN
Generates periodic functions of different, given types

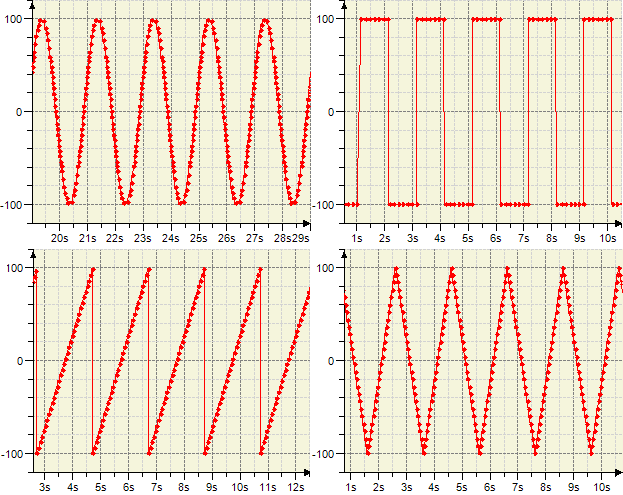

The generation may be done relative to a specific time base or a given call-count base (BASE). An example set of available types of periodic functions are shown in the following image.
|
InOut:
|
|
Scope
|
Name
|
Type
|
Initial
|
Comment
|
|
Input
|
MODE
|
GEN_MODE
|
|
Types available:
-
TRIANGLE: Triangular from -AMPLITUDE to +AMPLITUDE
-
TRIANGLE_POS: Triangular from 0 to +AMPLITUDE
-
SAWTOOTH_RISE: Sawtooth increasing from -AMPLITUDE to +AMPLITUDE
-
SAWTOOTH_FALL: Sawtooth decreasing from +AMPLITUDE to -AMPLITUDE
-
RECTANGLE: Rectangular switching from -AMPLITUDE to +AMPLITUDE
-
SINE: Sine
-
COSINE: Cosine
|
|
BASE
|
BOOL
|
|
FALSE: Period referring to call ( CYCLES)
TRUE: Period referring to time ( PERIOD)
|
|
PERIOD
|
TIME
|
TIME#1s0ms
|
Period time, only relevant if BASE = TRUE
|
|
CYCLES
|
INT
|
1000
|
Number of calls per period, only relevant if BASE = FALSE
|
|
AMPLITUDE
|
INT
|
|
Amplitud of the function to be generated
|
|
RESET
|
BOOL
|
|
TRUE: Sets OUT to zero
|
|
Output
|
OUT
|
INT
|
|
Generated function value
|
|
