FB_EventLogger - Functional Description

Overview

Type:

Function block

Available as of:

V1.2.5.0

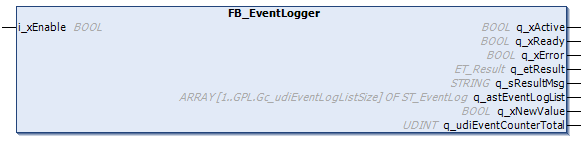

Functional Description

The function block FB_EventLogger is used to log the IO-Link events. By enabling the function block, a callback is registered to the IO-Link events. Based on the first-in-first-out principle, the output q_astEventLogList lists the newest IO-Link events detected including a time stamp based on the RTC of the controller. The output q_xNewValue indicates that at least one new event is logged per cycle. The total number of events detected since the function block was enabled is indicated by the output q_udi_EventCounterTotal.

NOTE: If the IO-Link master is connected by Sercos protocol, the Sercos state must be in state 4 and the outputs of the bus coupler enabled to initiate that which is required for the communication to the IO-Link master and devices and to use this function block.

Interface

Input

Data type

Description

i_xEnable

BOOL

The function block starts logging the IO-Link events on a rising edge of this input.

Refer to Behavior of Function Blocks with the Input i_xEnable.

Output

Data type

Description

q_xActive

BOOL

Indicates that the execution of the function block is active. As long this output is TRUE, the function block must be executed cyclically.

q_xReady

BOOL

Indicates that the callback to the IO-Link events was registered successfully and that the logging process is running.

q_xError

BOOL

Indicates that an error was detected during the execution of the function block.

q_etResult

ET_Result

Provides diagnostic and status information as a numeric value.

q_sResultMsg

STRING [80]

Provides additional diagnostic and status information as a text message.

q_astEventLogList

ARRAY[1..GPL.Gc_udiEventLogListSize] OF ST_EventLog

Array containing the last logged events.

q_xNewValue

BOOL

Indicates that a new value was logged in this cycle.

q_udiEventCounterTotal

UDINT

Indicates the total number of IO-Link events logged since the function block was enabled.
