PTOGetDiag Function Block

Function Description

This function block returns the PTO detected error code.

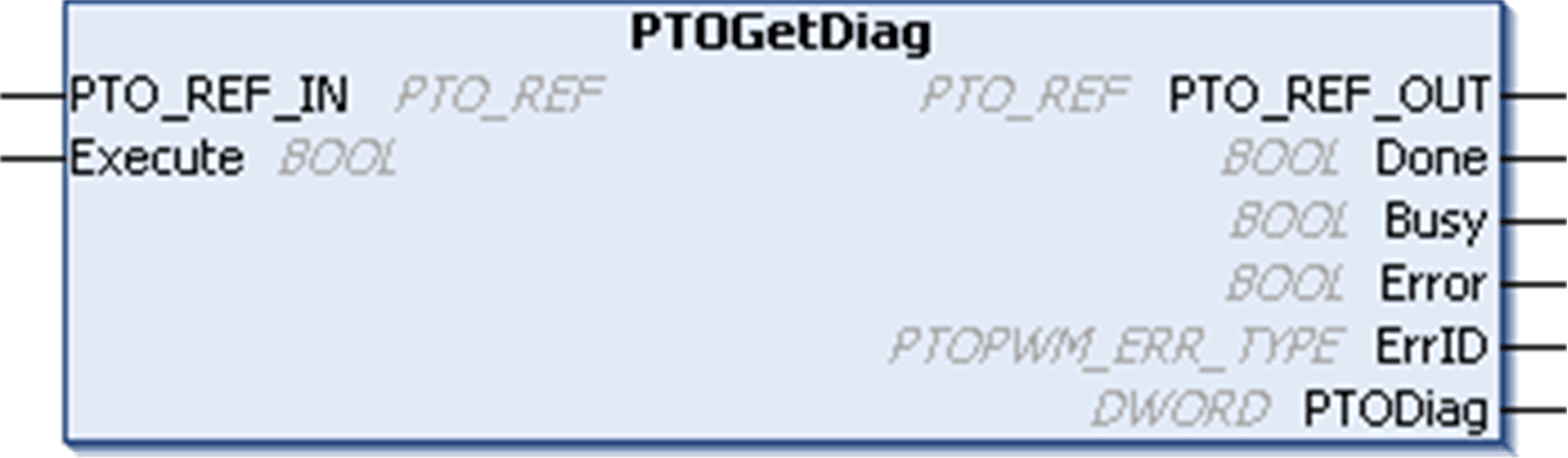

Graphical Representation

IL and ST Representation

To see the general representation in IL or ST language, refer to the chapter Function and Function Block Representation.

I/O Variables Description

This table describes the input variables:

Inputs	Type	Comment
PTO_REF_IN	PTO_REF	Reference to the PTO channel. To be connected to the PTO_REF of the PTOSimple or the PTO_REF_OUT of the Administrative or Motion output pins function blocks.
Execute	BOOL	On rising edge, starts the function block execution. When FALSE, resets the outputs of the function block when its execution terminates.

Inputs

Type

Comment

PTO_REF_IN

Reference to the PTO channel.

To be connected to the PTO_REF of the PTOSimple or the PTO_REF_OUT of the Administrative or Motion output pins function blocks.

Execute

BOOL

On rising edge, starts the function block execution.

When FALSE, resets the outputs of the function block when its execution terminates.

This table describes the output variables:

Outputs	Type	Comment
PTO_REF_OUT	PTO_REF	Reference to the PTO channel. To be connected with the PTO_REF_IN input pin of the Administrative and Motion function blocks.
Done	BOOL	TRUE = indicates that PTODiag is valid. Function block execution is finished.
Busy	BOOL	TRUE = indicates that the function block execution is in progress.
Error	BOOL	TRUE = indicates that an error was detected. Function block execution is finished.
ErrID	PTOPWM_ERR_TYPE	When Error is TRUE: type of the detected error.
PTODiag	DWORD	When Done is TRUE: Diagnostic error code (see table below).

The following table is the encoding for the diagnostic variable PTODiag. For more detailed diagnostic information, see Detected Error Management.

DWORD bit	Meaning
0...3	Not used
4	Internal error detected
5	FastPTO invalid DelayStart
6	Inhibit fault
7	Configuration error detected
8	Invalid buffer mode
9	Proximity limit error detect
10	Command buffer full
11	Buffer speed error detected
12	Axis not referenced
13	Homing Origin or PROX disabled
14	FastPTO stop exception
15	FastPTO reconfiguration
16	FastPTO overrange
17	Drive not ready (auxiliary input DriveReady is FALSE)
18	Software high limit detected
19	Software low limit detected
20	No trigger pin assigned for FastPTO
21	Homing error detected
22	Invalid Frequency
23	Invalid Acceleration
24	Invalid Deceleration
25	Command rejected
26	Invalid Distance
27	Invalid Position
28	Invalid Homing
29	Invalid Direction
30	Reverse Direction
31	Profile Error detected

NOTE: For more information about Done, Busy, CommandAborted and Execution pins, refer to General Information on Function Block Management.
