Using FC_PointDistanceQuery

Overview

It is possible to perform a point distance query by calling the function FC_PointDistanceQuery The function expects one Cartesian 3D point and object implementing the interface COD.IF_CollisionQueryInterface.

Collision objects, groups and entities are valid implementations of the IF_CollisionQueryInterface, meaning that you may provide any of them as input for the function.

There is a third input called i_xEvaluateClosestPoint that, if set to TRUE, forces the function to evaluate the closest point on the IF_CollisionQueryInterface input.

The following list of minimum steps is required to perform a point distance query:

Step	Action
1	Define a collision object, group or entity and make sure it has xConfigured = TRUE in the case of an object, or xUpdated = TRUE in the case of a group or an entity.
2	Provide the 3D point and the IF_CollisionQueryInterface implementation as inputs of the FC_PointDistanceQuery function.

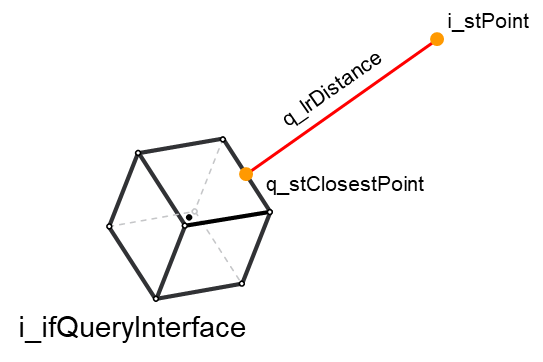

On a successful call of FC_PointDistanceQuery, the function returns information about the distance between the point and the IF_CollisionQueryInterface implementation.

Example of point distance query:

Example

The following is an example in the case of a collision object:


//configure the object that is an OBB
fbOBB.SetCenterHalfExtentsOrientation(
      i_stCenter := stOBBCenter,
      i_stHalfExtents := stOBBHalfExtents,
      i_stOrientation := stOBBOrientation,
      q_xError=> xError,
      q_etResult=> etResult,
      q_sResultMsg=> sResultMsg
);

//check diagnostics here
IF xError THEN
      //do something to handle the error
      …
END_IF


//now that the OBB object is configured, it is possible to
//perform a point distance query
COD.FC_PointDistanceQuery(
      i_stPoint:= stPoint,
      i_ifQueryInterface:= fbOBB,
      i_xEvaluateClosestPoint:= FALSE,
      q_xError=> xError,
      q_etResult=> etResult,
      q_sResultMsg=> sResultMsg,
      q_xIsPointInside=> xIsPointInside,
      q_lrDistance=> lrDistance,
      q_stClosestPoint=> stClosestPoint
);
