Device Module Description

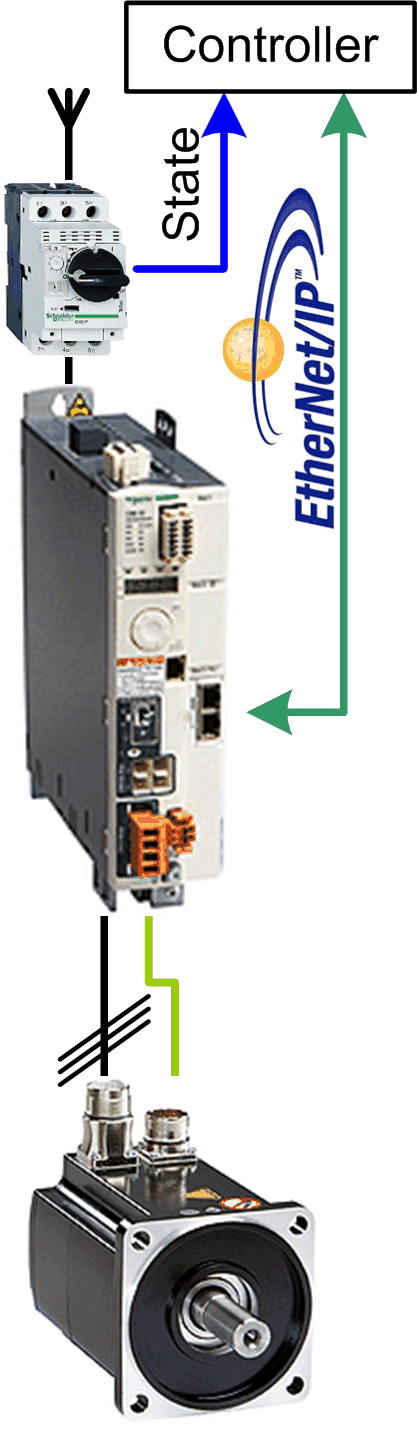

Graphical Representation

Lexium_32M_EtherNetIP Device Module Description

The Device Module Lexium_32M_EtherNetIP provides the application objects and the device which are required to monitor and control a Lexium 32M via EtherNet/IP with a Schneider Electric EcoStruxure Machine Expert controller. The device Lexium 32M requires the Industrial Ethernet manager under the Ethernet interface of the controller.

Compatibility

The described Device Module can be used in applications of the controller families supported by EcoStruxure Machine Expert and supporting the Ethernet/IP protocol.
