Type Plate

Position of the Type Plate

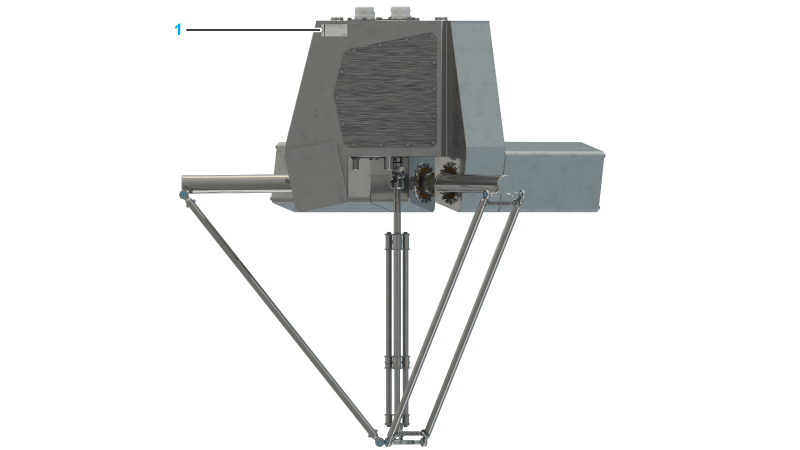

Representation for VRKP••••WD / VRKP••••NO / VRKP••••CW / VRKP••••WF

1 Type plate

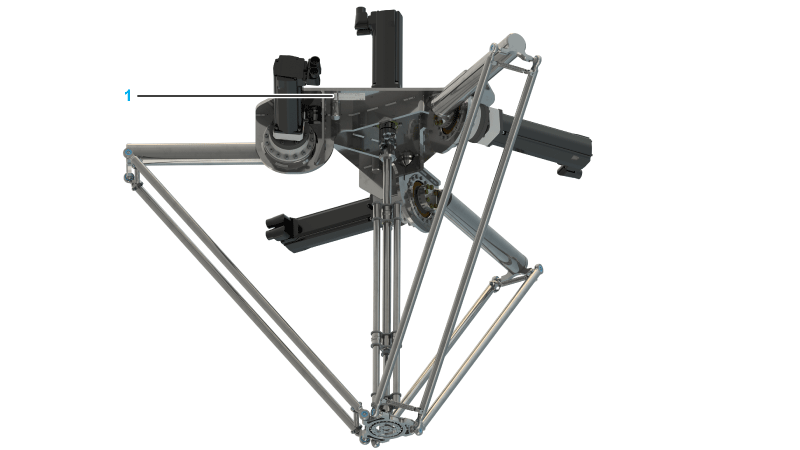

Representation for VRKP••••NC

1 Type plate

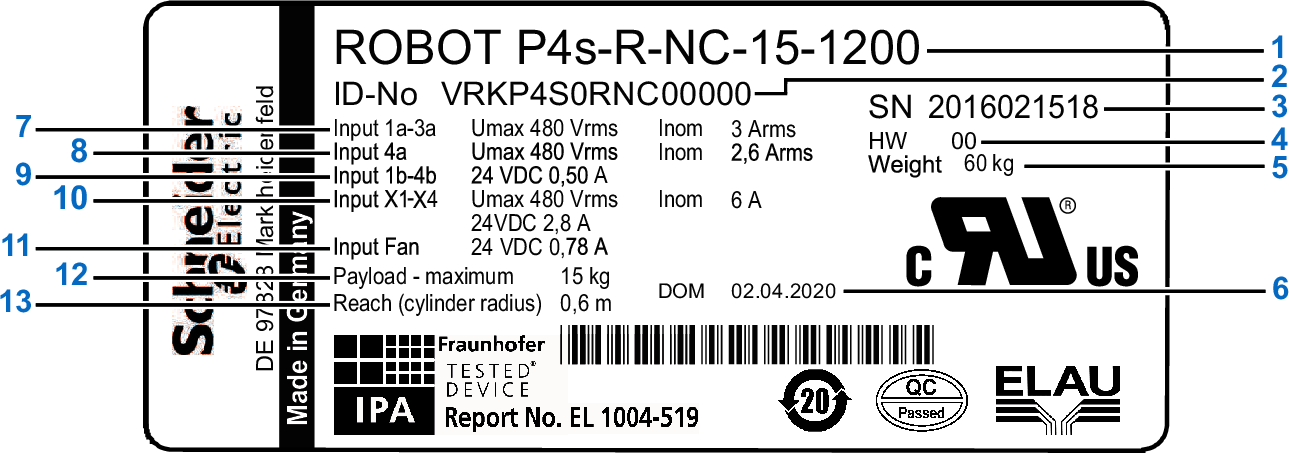

1	Device name
2	Type code*
3	Serial number
4	Hardware code
5	Weight of the robot
6	Date of manufacture
7	Voltage and current of the main axis SH3-motors

8	Voltage and current of the rotational axis SH3-motor
9	Voltage and current of the SH3-motor brakes
10	Voltage and current of all ILM-motors and brakes
11	Voltage and current of the fans
12	Maximum Load
13	Radius of the working space

* For detailed information about the meaning of the particular digits, refer to Type Code.
