Distance and Gap

Distance

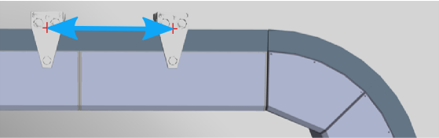

The distance between the two carriers is specified from the center point of one carrier to the center point of the next carrier. For the definition of the center point of a carrier, see Carrier Center Point.

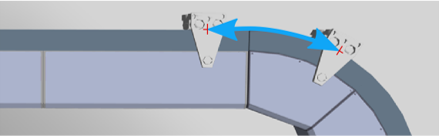

In the curves, the default distance used is the arc length of the curve.

Distance between Carriers

Gap

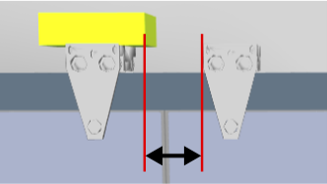

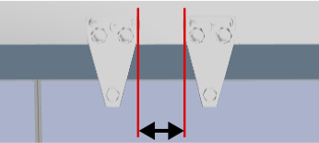

The gap between two carriers is specified from the rear end of one carrier to the front end of the next carrier. Products and/or tools for transporting the products are taken into account.
