EtherCAT - PROFIBUS DP Slave Terminal EL6731_0010

CODESYS supports the EL6731_0010 device from Beckhoff, which provides a gateway from EtherCAT to a PROFIBUS DP slave. After adding the gateway below the EK1100 EtherCAT coupler, you can configure it like an ordinary EtherCAT slave.

When you add the gateway, a PROFINET slave node is inserted automatically. This PROFIBUS DP slave functions like a standard PROFIBUS DP slave.

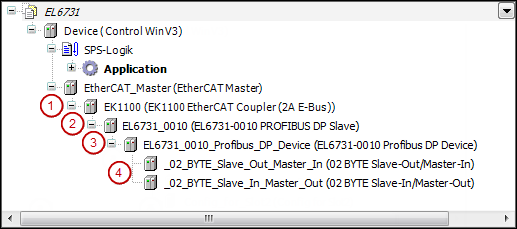

(1) EtherCAT coupler       (2) Gateway EtherCAT PROFIBUS DP slave       (3) PROFIBUS DP slave
(4) PROFIBUS DP slave      (5) PROFIBUS DP modules

You insert the PROFIBUS DP modules below the PROFIBUS slaves. In the editor dialogs, you can set the typical PROFIBUS DP parameters and I/O channels.
