EtherCAT - PROFIBUS DP Slave Terminal EL6731_0010

CODESYS supports the EL6731_0010 device from Beckhoff. This device establishes a gateway from EtherCAT to the PROFIBUS DP slave. You insert the gateway below the EtherCAT EK1100 coupler. Then you can configure it like a typical EtherCAT slave.

When you insert the gateway, a PROFIBUS DP slave node is inserted automatically. This PROFIBUS DP slave behaves like a standard PROFIBUS DP slave.

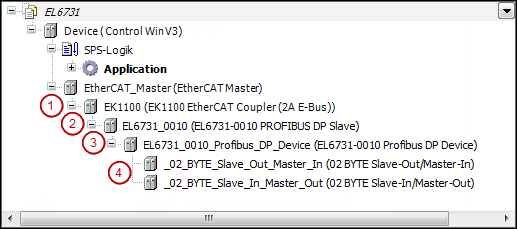

(1) EtherCAT coupler       (2) Gateway EtherCAT PROFIBUS DP slave        (3) PROFIBUS DP slave
(4) PROFIBUS DP slave      (5) PROFIBUS DP module

You insert the PROFIBUS DP module below the PROFIBUS DP slave. In the editor dialogs, you can set the typical PROFIBUS DP parameters and I/O channels.
