Auto Mode
Overview
For the operation mode , one station is already implemented in order to show the necessary steps for adding another station.

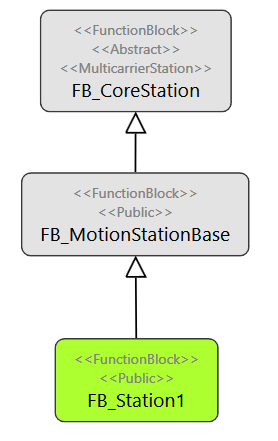

The example station has three layers:
|
Layer |
Name |
Description |
|---|---|---|
|
1 |
FB_CoreStation |
The core of the station is the carrier handling from the function block FB_CoreStation from the MulticarrierStation library. |
|
2 |
FB_MotionStationBase |
The second layer is a function block with the methods and properties needed for any station, like for example the method SetStationParameter or the property ErrorQuit. |
|
3 |
FB_Station1 (Example) |
The third layer has a functional station-specific logic. |
The station function blocks for the operation mode can be found in the folder . (The FB_CoreStation is a hidden function block.)
