TM5SPS2 Presentation

Main Characteristics

The Power Distribution Module (PDM) TM5SPS2 feeds the TM5 power bus as well as the 24 Vdc I/O power segment.

The table below describes the main characteristics of the TM5SPS2 electronic module:

Main characteristics
Maximum current provided on 24 Vdc I/O power segment	10000 mA
TM5 power bus current generated	1136 mA

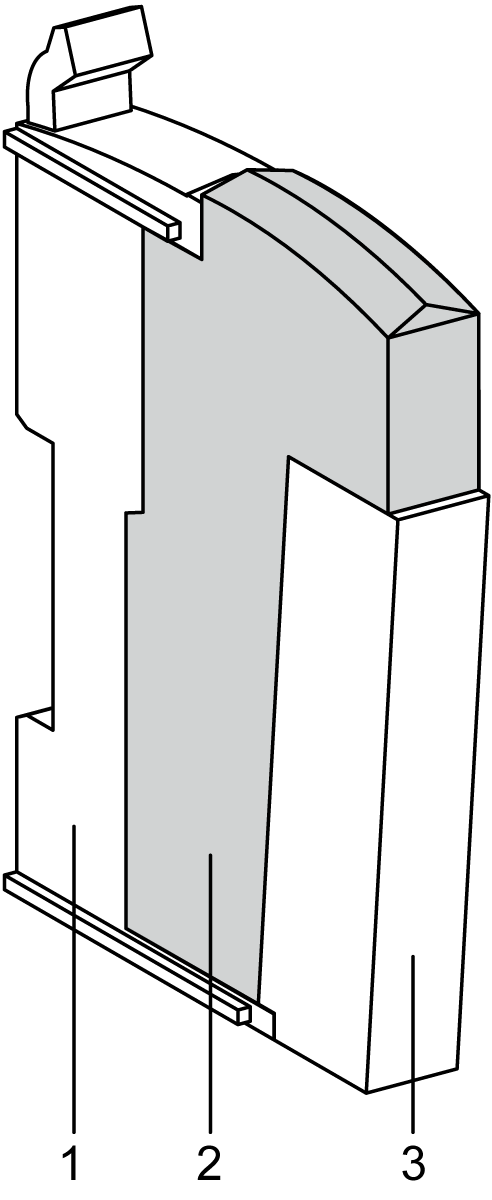

The following figure and table gives the references to create a slice with the TM5SPS2 electronic module:

Number	Reference	Description	Color
1	TM5ACBM01R or TM5ACBM05R	Bus base 24 Vdc I/O power segment left isolated Bus base 24 Vdc I/O power segment left isolated with address setting	Gray Gray
2	TM5SPS2	Electronic module	Gray
3	TM5ACTBM12PS	Terminal block, 12-pin	Gray

Number

Reference

Description

Color

1

TM5ACBM01R

or

TM5ACBM05R

Bus base 24 Vdc I/O power segment left isolated

Bus base 24 Vdc I/O power segment left isolated with address setting

Gray

2

TM5SPS2

Electronic module

Gray

3

TM5ACTBM12PS

Terminal block, 12-pin

Gray

NOTE: For more information, refer to TM5 Bus Bases and Terminal Blocks.

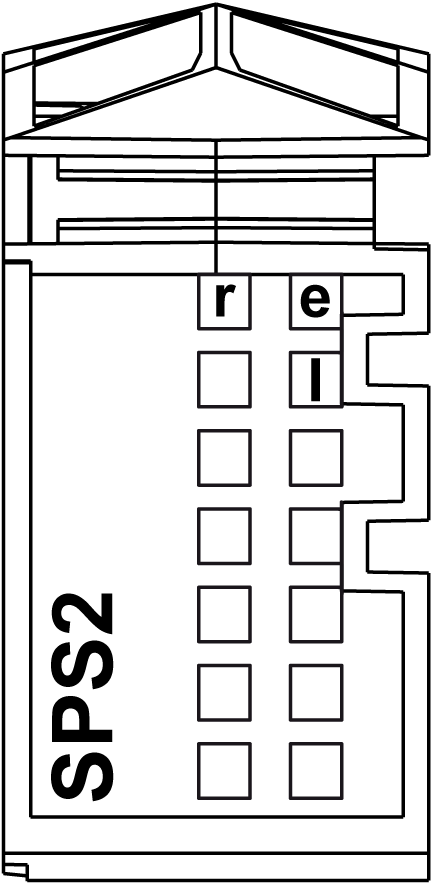

The following figure shows the TM5SPS2 status LEDs:

The table below describes the TM5SPS2 status LEDs:

LED	Color	Status	Description
r	Green	Off	Power supply not connected
		Single flash	Reset state
		Flashing	Preoperational state
		On	RUN state
e	Red	Off	OK or module not connected
e	Red	Double flash	Indicates one of the following conditions: TM5 power bus is overloaded. 24 Vdc I/O power segment, via the external power supply or supplies, is too low. Input voltage for TM5 power bus, via the external power supply or supplies, is too low.
e+r	Steady red/single green flash		Invalid firmware
l	Red	Off	TM5 power bus in the acceptable range
l	Red	On	TM5 power bus is overloaded
