FB_CreateSelfSignedCertificate

Overview

Type:	Function block
Available as of:	V1.0.0.0

Functional Description

The function block FB_CreateSelfSignedCertificate is used to create a self-signed certificate on the controller. If the certificate is created successfully, it is installed to the certificate store of the controller as Own certificate. It can be used for secured communication using function blocks that support the specification of a certificate.

Examples of function blocks supporting the specification of a certificate to be used for secured communication:

Function blocks	Library
FB_TcpServer2, FB_TcpClient2	TcpUdpCommunication
FB_MqttClient	MqttHandling
FB_HttpClient	HttpHandling
FB_SendEMail, FB_Pop3EMailClient	EMailHandling
FB_SqlDbRequest	SqlRemoteAccess

NOTE: The function block uses an asynchronous task to create the certificate. Therefore, the function block automatically initializes the asynchronous manager if not yet done previously in the application.

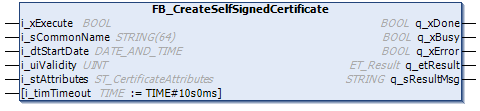

Interface

Input	Data type	Description
i_xExecute	BOOL	A rising edge of the input i_xExecute starts the execution of the function block. Refer to Behavior of Function Blocks with the Input i_xExecute.
i_sCommonName	STRING[64]	The string containing the common name of the certificate.
i_dtStartDate	DATE_AND_TIME	The start date of the validity of the certificate. The default value is the date and time of the controller.
i_uiValidity	UINT	The validity period of the certificate in days. Default value: 473040000000 (= 50 years)
i_stAttributes	ST_CertificateAttributes	The structure containing optional attributes of the certificate.
i_timTimeout	TIME (TIME#10s0ms)	Timeout for the operation. If the specified time expires during execution, the process is aborted. The minimum value for the timeout is 10 s.

Output	Data type	Description
q_xDone	BOOL	If this output is set to TRUE, the execution has been completed successfully.
q_xBusy	BOOL	If this output is set to TRUE, the function block execution is in progress.
q_xError	BOOL	If this output is set to TRUE, an error has been detected. For details, refer to q_etResult and q_etResultMsg.
q_etResult	ET_Result	Provides diagnostic and status information as a numeric value.
q_sResultMsg	STRING [80]	Provides additional diagnostic and status information as a text message.
