FB_Sphere - General Information
Overview
|
Type: |
Function block |
|
Available as of: |
V1.0.0.0 |
|
Inherits from: |
- |
|
Implements: |
IF_Sphere |
|
Extends: |
FB_CollisionObject |
|
Versions: |
Current version |
This chapter provides information on:
-
Method SetCenterRadius
Description
A sphere is defined by the position of its center and its radius.

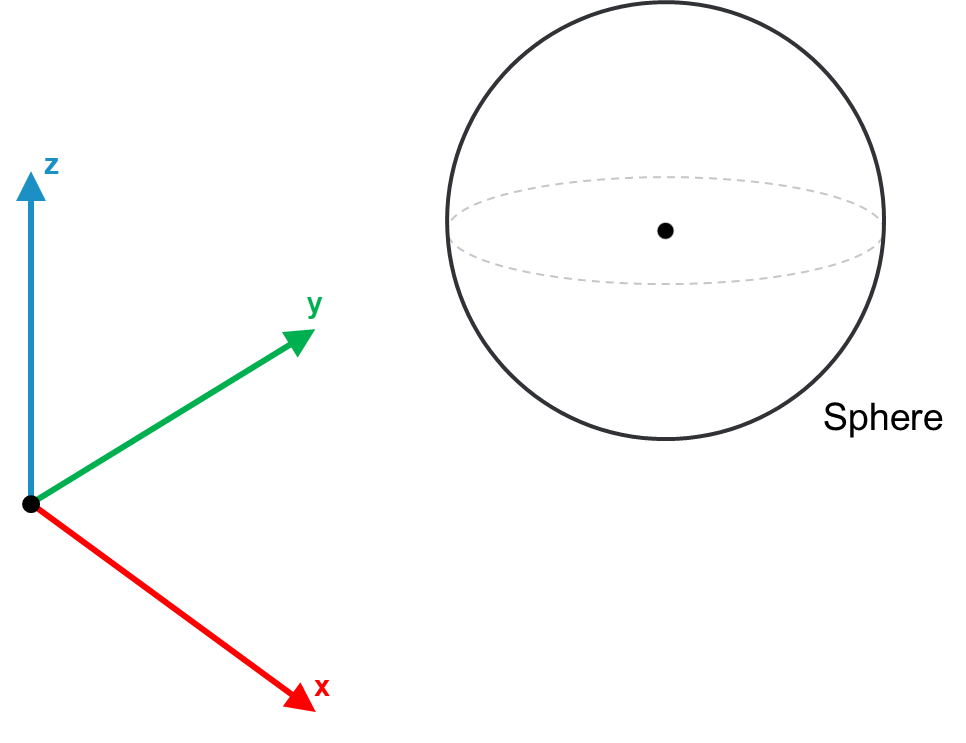

The following figure represents a Sphere object:
Properties
|
Name |
Data type |
Accessing |
Description |
|---|---|---|---|
|
rstCenter |
REFERENCE TO SE_Math.ST_Vector3D |
Get |
Center of the Sphere object. |
|
lrRadius |
LREAL |
Get |
Radius of the Sphere object. |
|
etType |
Get |
This property describes the type of bounding volume implemented by the object. |
|
|
xConfigured |
BOOL |
Get |
The value of this property is TRUE if the object has been properly initialized, FALSE otherwise. |
